- 97 - Appendix

Step 3:

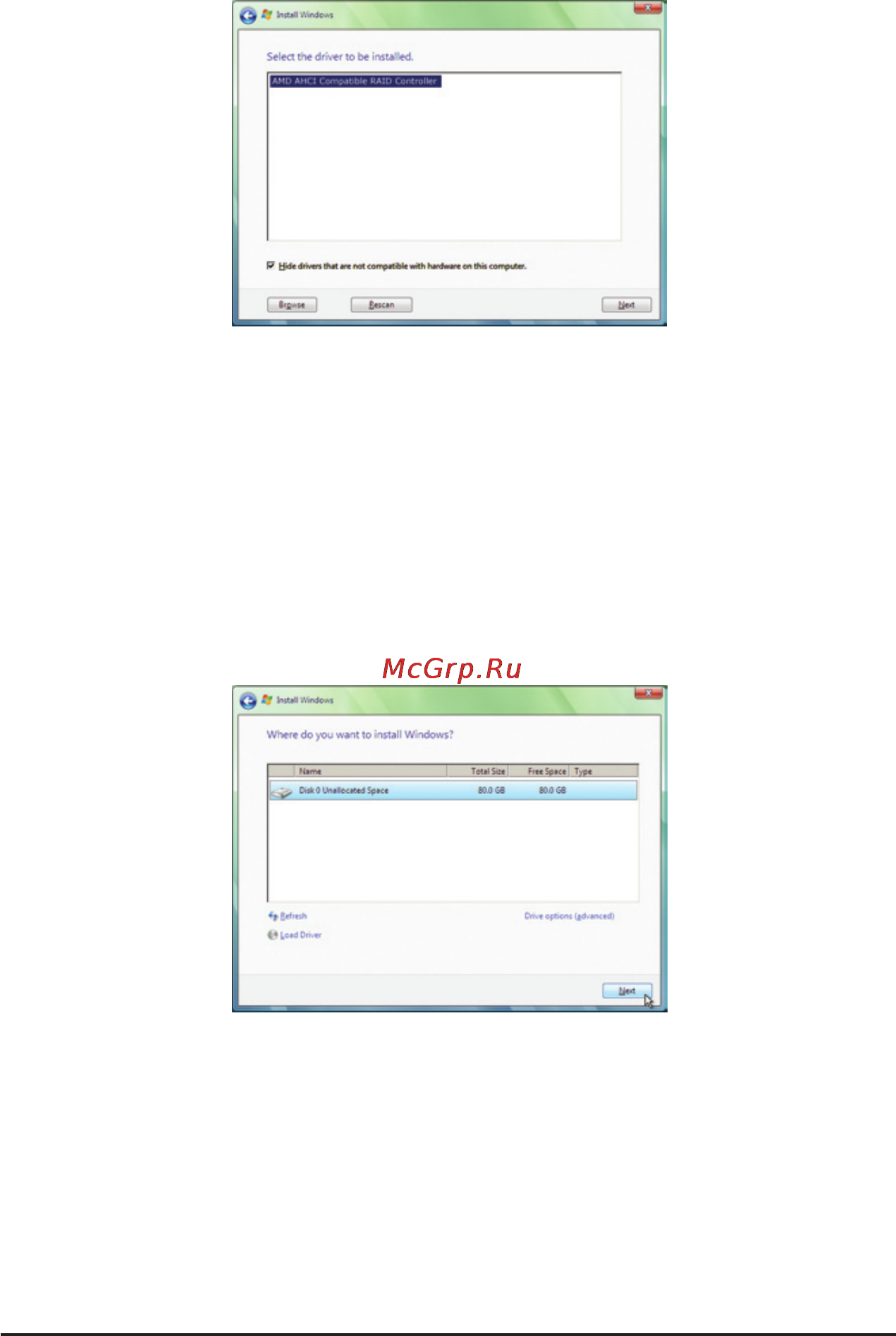

When a screen as shown in Figure 7 appears, select AMD AHCI Compatible RAID Controller and press

Next.

Step 4:

After the driver is loaded, the RAID drive will appear. Select the RAID drive and then press Next to continue

the OS installation (Figure 8).

Figure 7

Figure 8
