Deaf Bonce Apocalypse AAB-19800.1D [7/20] Страница 7

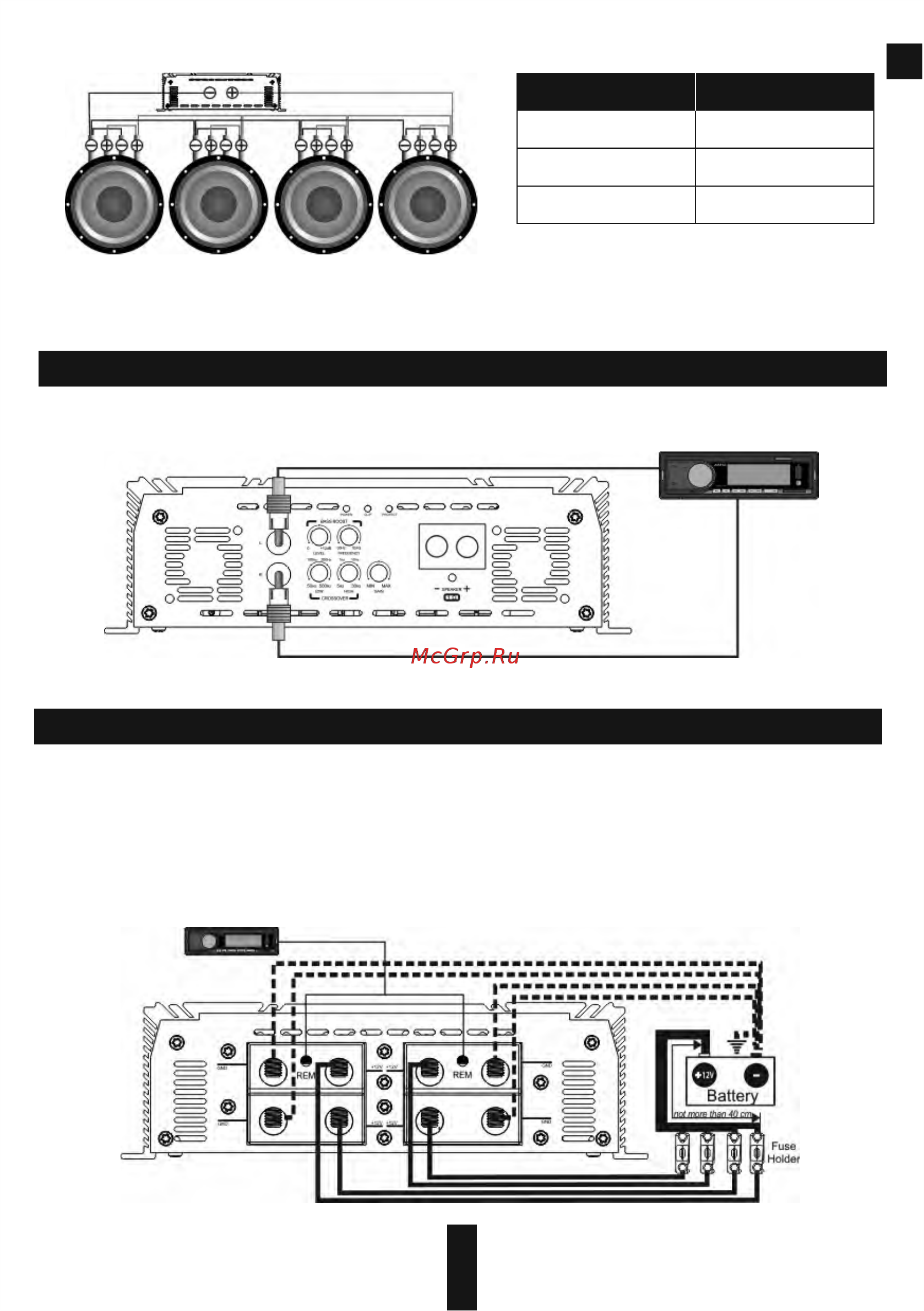

Standard connection diagram

Connect the speaker cables from the plus and minus terminals of the speakers to the respective outputs of the ampliﬁer

terminal marked with SPEAKER, as shown at the diagram. To connect the power wire supply it is necessary to use special power

cables. The fuse is placed in the holder and ﬁxed in the cable cut. One end of the cable is connected to the positive terminal of the

battery, the second one – to the ampliﬁer terminals marked with + 12V. Be sure to use a fuse with the parameters suﬃcient for use

in the system.

The length and diameter of the grounding cable must conform to the length and diameter of the cable + 12V. Connect

one end to the negative terminal of the battery and the other end of the grounding cable to the terminals marked with

GND.

Connect the head unit (HU) to low-level inputs of the ampliﬁer using RCA cable.

5. W IR IN G DI AG RA MS

CAUTION!!! High sound pressure can damage your health!

Please use the common sense when controlling volume!

2+2 Ohm

4+4 Ohm

0,5 Ohm

0, 5 Ohm2

1+1 Ohm

0,125 Ohm

Voice coils

Total impedance
