Caution!!!

The minimum allowable impedance at the output of the ampliﬁer is 1 ohm. For model AAB-19800.1D the operating

voltage is 10-15 V.

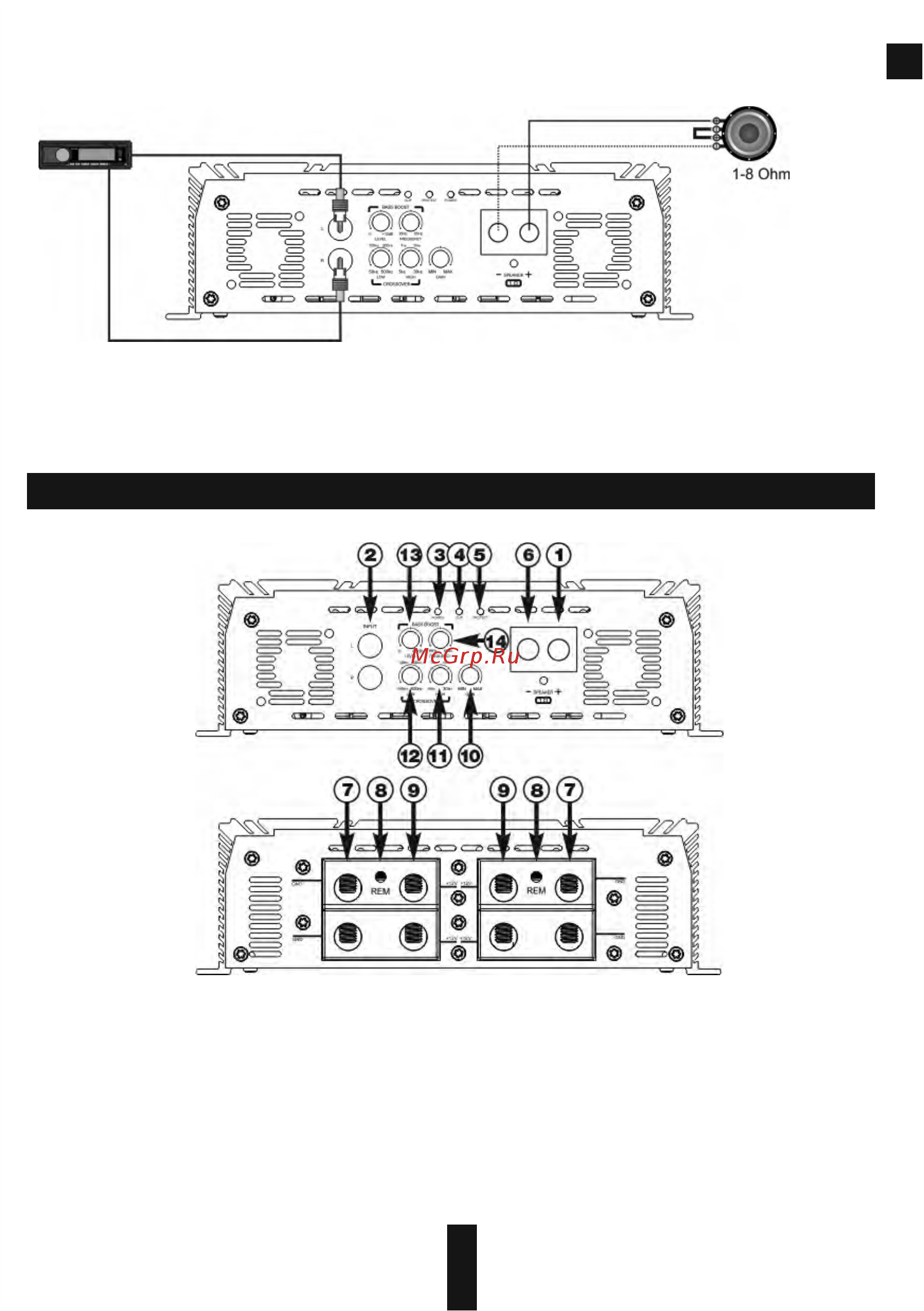

Application of connectors and controls

1. Speaker “+” – speaker positive terminal connections

2. Input – signal input, RCA jacks

3. Power – LED for operation (blue)

4. Clip - LED on the clip (white)

5. Protect - LED for operation (red)

6. Speaker “-” – speaker negative terminal connections

7. GND – grounding supply terminal

8. REM – connector of remote activation of the ampliﬁer

9. +12 – power supply terminals +12 V

10. Level – input signal level adjustment (0.5 V – 8 V)

11. Crossover – HIGH – High pass ﬁlter (5 Hz – 30 Hz at 12 dB/Oct)

12. Crossover – LOW – low pass ﬁlter (50 Hz – 500 Hz at 12 dB/Oct)

13. Bass Boost – LEVEL – bass level adjustment 0 – 12 dB

14. Bass Boost – FREQUENCY – bass frequency adjustment 35 – 55 Hz
