D-Link DGS-1100 Series Switch User Manual
7
CAUTION: This equipment can be connected only to PoE networks without
routing to the outside plant.

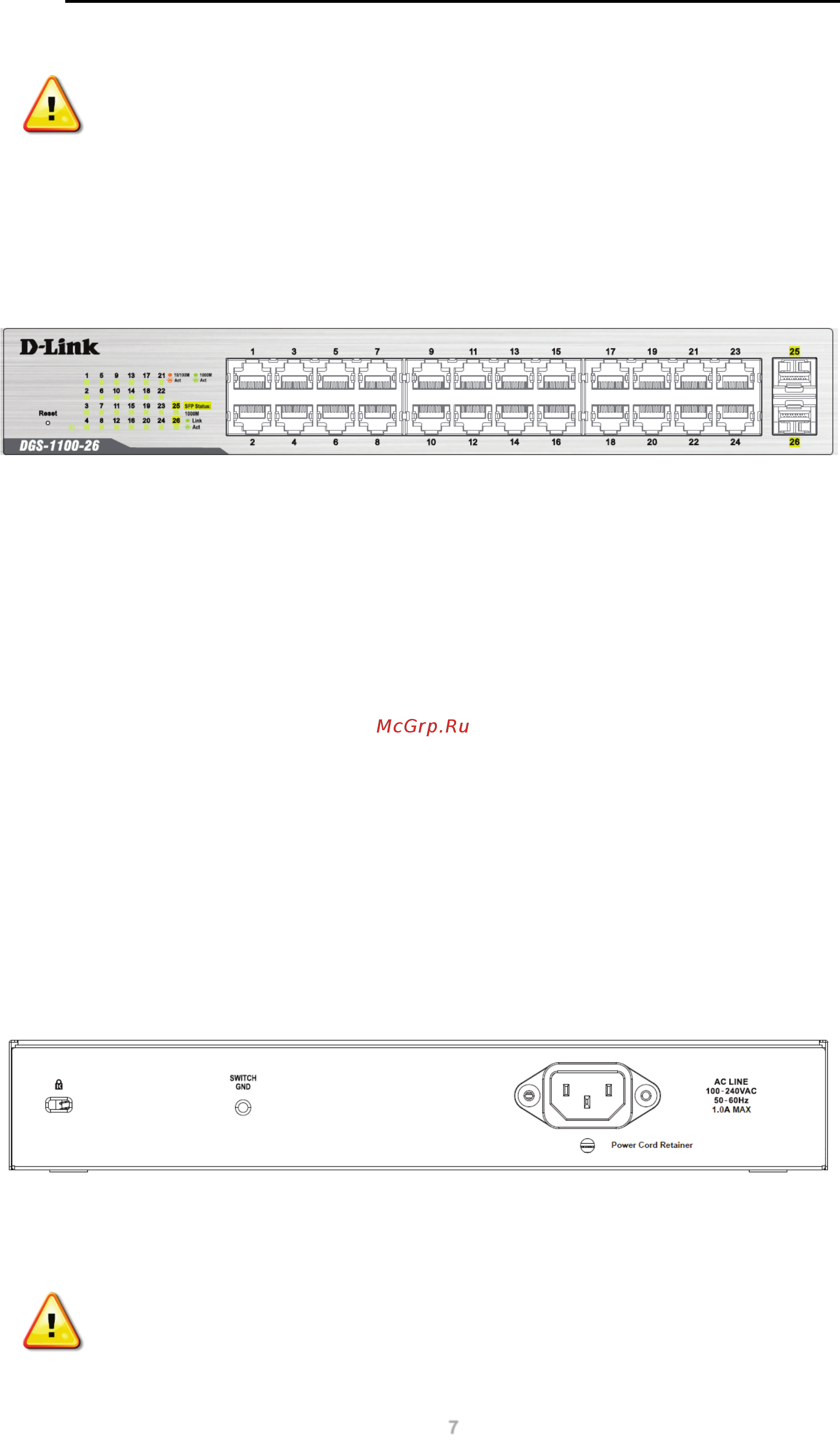

DGS-1100-26
24-Port 10/100/1000Mpbs + 2 Port SFP 1000 Mbps Switch
Front Panel
Figure 2-9 – DGS-1100-26 Front Panel
Power LED: The Power LED lights up when the Switch is connected to a power source.
Link/Act/Speed LED (Ports 1-24):
Solid Green: When there is a secure 1000Mbps connection at the port.
Blinking Green or Amber: Indicates that the Switch is either sending or receiving data to the port.
Solid Amber: Indicates that the port is running at 10/100Mbps.
Light off: No link.
Link/Act/Speed LED (Ports 25-26):
Solid Green: There is a secure 1000Mbps connection at the port.
Blinking Green: There is reception or transmission occurring at the port.
Light off: No link.
Reset: By pressing the Reset button until the power LED turns amber, the Switch will change back
to the default configuration and all changes will be lost.
Rear Panel
Figure 2-10 – DGS-1100-26 Rear Panel
Power: Connect the supplied AC power cable to this port.
CAUTION: The MiniGBIC ports should use UL listed Optical Transceiver
product, Rated Laser Class I. 3.3Vdc.
