D-Link DGS-1100 Series Switch User Manual
74

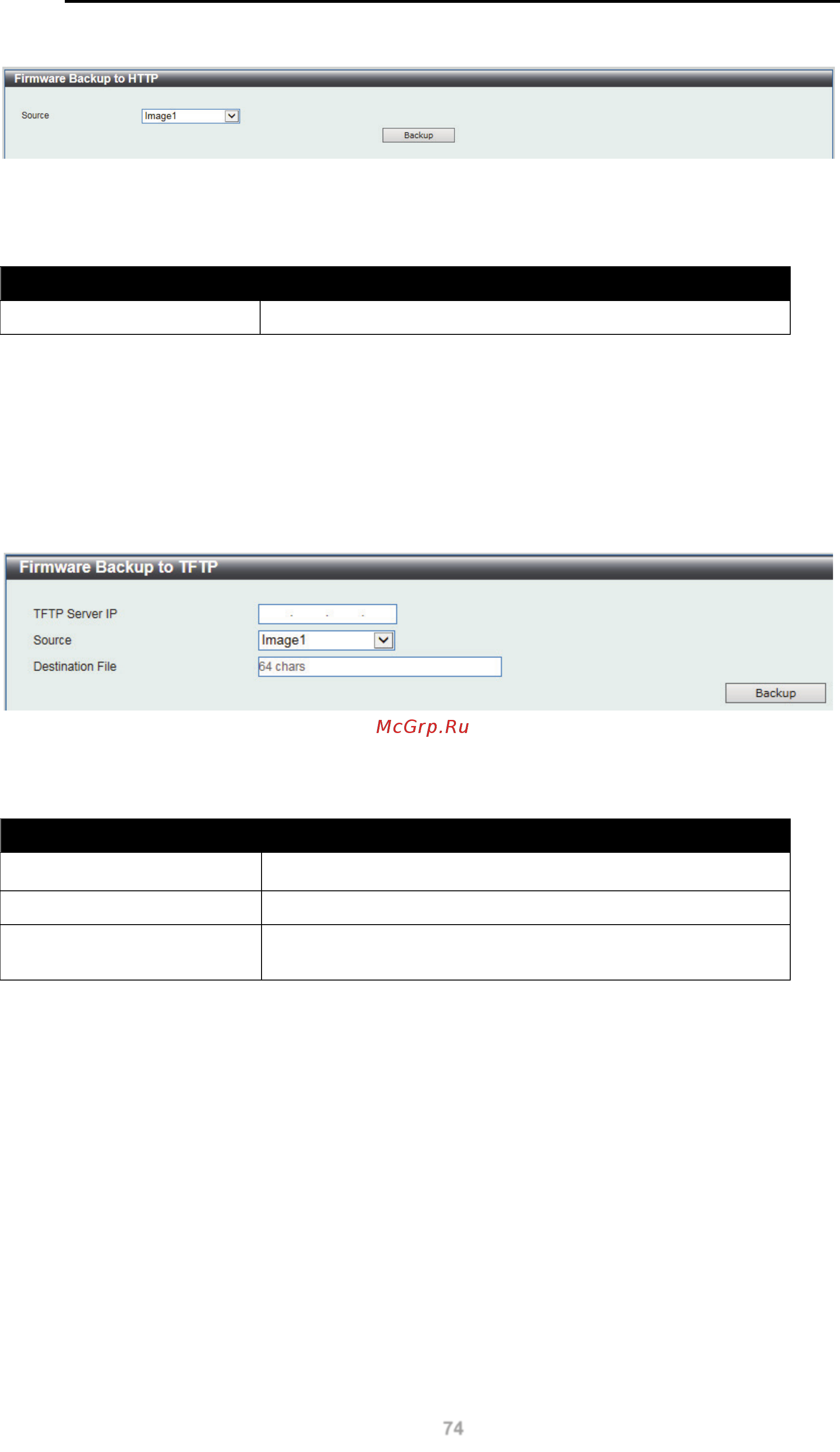

Figure 13-5 Firmware Backup to HTTP window
The fields that can be configured are described below:
Parameter Description
Source
Select the source image to use for the firmware backup.
Click the Backup button to initiate the firmware backup.
Firmware Backup to TFTP
This window is used to initiate a firmware backup to a TFTP server.
To view the following window, click Tools > Firmware Upgrade & Backup > Firmware Backup to
TFTP, as shown below:
Figure 13-6 Firmware Backup to TFTP window
The fields that can be configured are described below:
Parameter Description
TFTP Server IP
Enter the TFTP server’s IPv4 address here.
Source
Select the source image to use for the firmware backup.
Destination File
Enter the destination path and location where the firmware
file should be stored on the TFTP server.
Click the Backup button to initiate the firmware backup.
