PoE Configuration

This window is used to configure the PoE port.

To view the following window, click System > PoE > PoE Configuration, as shown below:

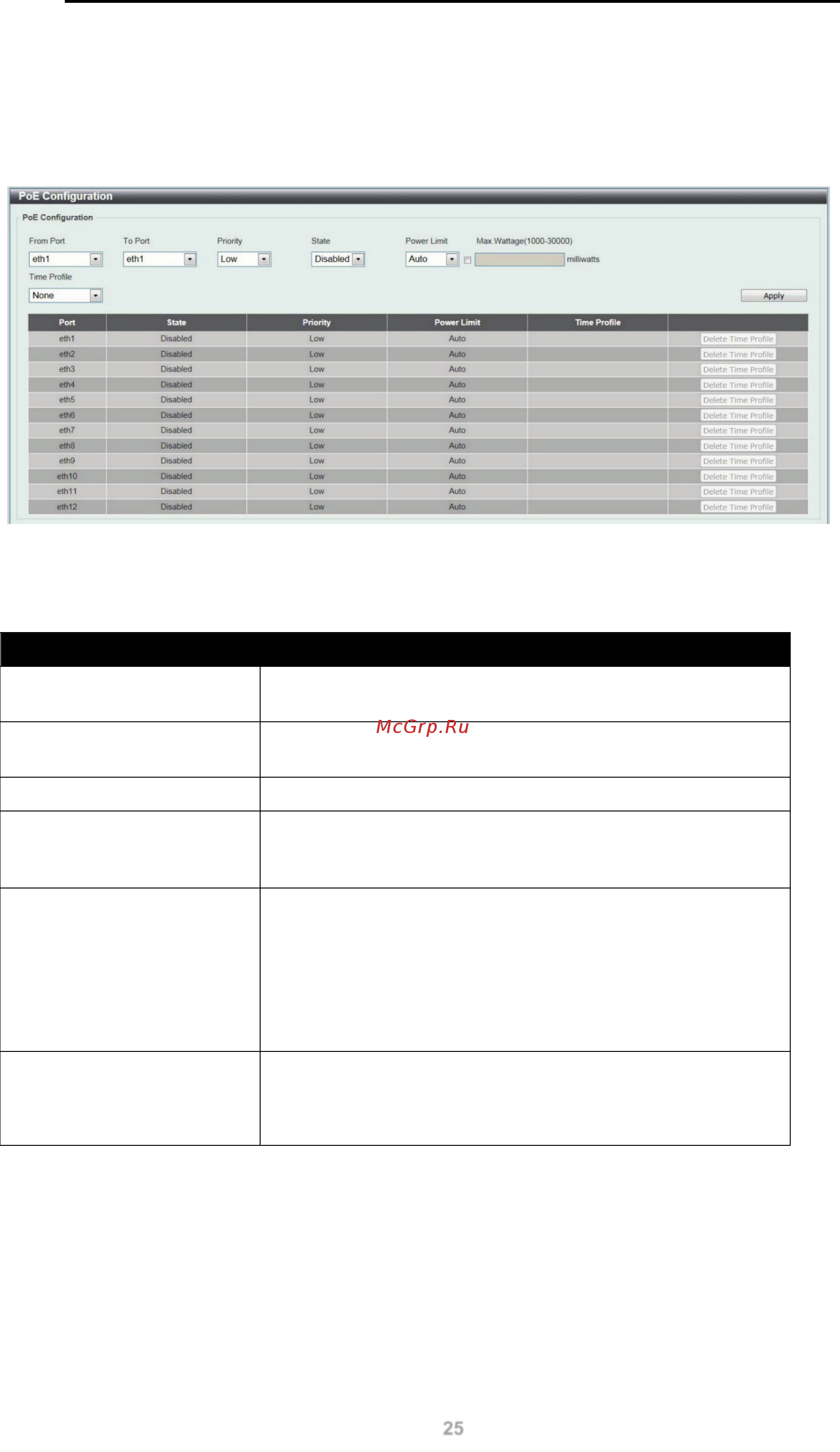

Figure 5-9 PoE Configuration window

The fields that can be configured are described below:

Parameter Description

From Port / To Port

Select the appropriate port range used for the configuration

here.

Priority

Select the priority for provisioning power to the port. Options

to choose from are Critical, High and Low.

State

Select this option to enable or disable the PoE functionality.

Power Limit

Select the power management mode for the PoE ports.

Options to choose from are Auto, Class 1, Class 2, Class 3,

and Class 4.

Max Wattage When selecting Auto in the Mode drop-down list, this option

appears. Tick the check box and enter the maximum wattage

of power that can be provisioned to the auto-detected PD. If

the value is not entered, the class of the PD automatically

determines the maximum wattage which can be provisioned.

The valid range for maximum wattage is between 1000 mW

and 30000 mW.

Time Profile Select the Time Profile from the drop down list.

Note: The Time Profile drop down menu will only have

available options if a time profile has been created.

Click the Delete Time Range button to clear the setting in the corresponding Time Range field.

Click the Apply button to accept the changes made.

Note: The Max Wattage option will only be available if the check box next to the input field is

enabled. When enabled, the Power Limit drop down menu will not be available.

Note: If the switch failed to supply power to the IEEE 802.3at PD (Powered Device),

1.Check if the PD connected to the port supports the IEEE 802.3at standard.

2.Manually configure the corresponding port’s power limit value to 30 Watts
