D-Link DGS-1100 Series Switch User Manual
56
IGMP Snooping Groups Settings
This window is used to configure and view the IGMP snooping static group, and view IGMP
snooping group.
To view the following window, click L2 Features > L2 Multicast Control > IGMP Snooping > IGMP
Snooping Groups Settings, as shown below:

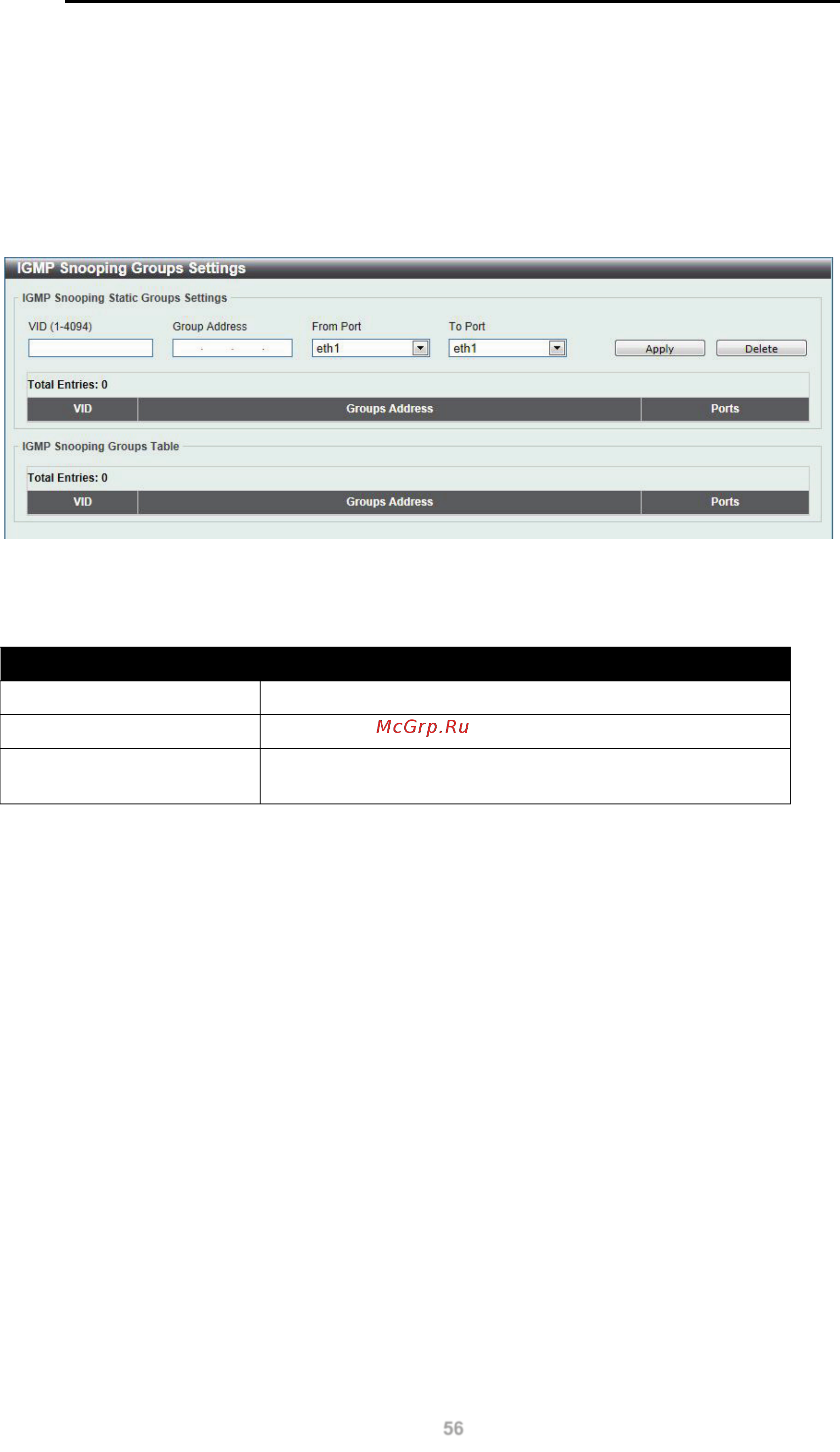

Figure 7-281 IGMP Snooping Groups Settings
The fields that can be configured for IGMP Snooping Static Groups Settings are described below:
Parameter Description
VID
Enter a VLAN ID of the multicast group.
Group Address
Enter an IP multicast group address.
From Port / To Port
Select the appropriate port range used for the configuration
here.
Click the Apply button to accept the changes made.
Click the Delete button to remove the specified entry.
