4 Configuration DGS-1210 series Metro Ethernet Managed Switch User Manual
46
Find Private VLAN: Specify to display a private VLAN information.
VLAN Name: Enter a VLAN name for the private VLAN to be displayed. This name can be up to 32
characters in length.
VID (2-4094): Enter a VLAN ID for the private VLAN to be displayed. The value ranges between 2 and 4094.
Click Find to locate a specific entry absed on the information entered.
Click View All to display all the existing entries.
Click Edit to configure the secondary VLAN as below:

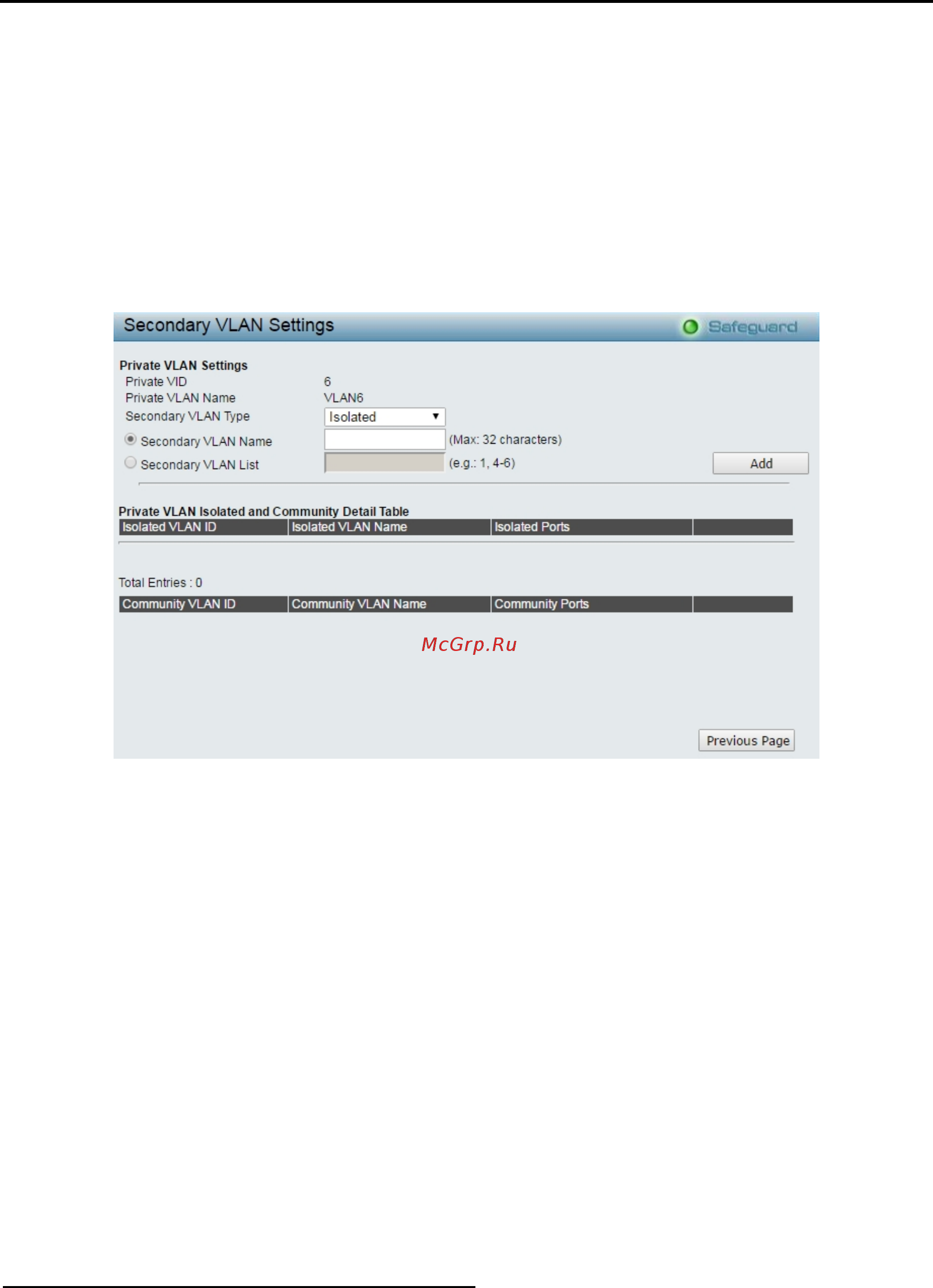

Figure 4.59 - Configuration > Private VLAN > Private VLAN Settings – Secondary VLAN Settings
Secondary VLAN Type: To specify the secondary VLAN type to be Isolated or Community.
Isolated – The ports within an isolated VLAN cannot communicate with each other at the Layer 2
level. Isolated ports are typically used for those endpoints that only require access to a limited
number of outgoing interfaces on a Private VLAN enabled device. An endpoint connected to an
isolated port will only possess the ability to communicate with those endpoints connected to
promiscuous ports. Endpoints connected to isolated ports cannot communicate with one another.
Community – The ports within a community VLAN can communicate with each other but cannot
communicate with ports in other communities at the Layer 2 level. Within a community, endpoints can
communicate with one another and can also communicate with any configured promiscuous port.
Endpoints belonging to one community cannot communicate with endpoints belonging to a different
community or with endpoints connected to isolated ports.
Secondary VLAN Name: Enter a VLAN name for the secondary VLAN. This name can be up to 32
characters in length.
Secondary VLAN List: Enter a list of secondary VLAN ID. The value ranges between 2 and 4094.
Click Add to add a new entry based on the information entered.
Click Previous Page to the go back to the previous page.
Configuration > Private VLAN > Private VLAN Trunk
The Private VLAN Trunk setting page allows user to configure the trunk ports settings.
