Configuration > Link Aggregation > LACP Port Settings

The LACP Port Settings is used to create port trunking groups on the Switch. The user may set which ports

will be active and passive in processing and sending LACP control frames.

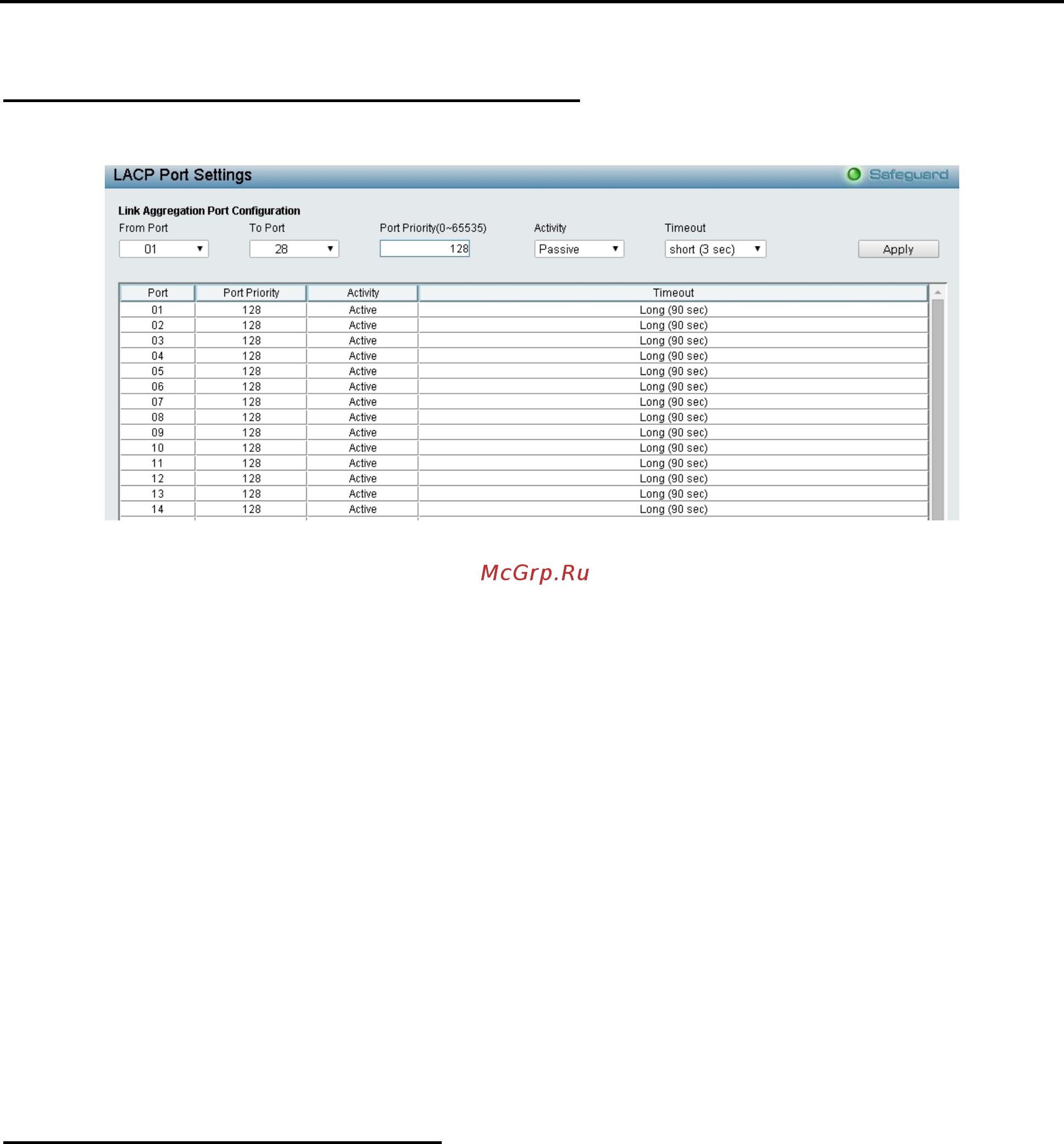

Figure 4.72 – Configuration > Link Aggregation > LACP Port Settings

From Port: The beginning of a consecutive group of ports may be configured starting with the selected port.

To Port: The ending of a consecutive group of ports may be configured starting with the selected port.

Port Priority (0-65535): Displays the LACP priority value for the port. Default is 128.

Activity: There are two different roles of LACP ports:

Active - Active LACP ports are capable of processing and sending LACP control frames. This allows

LACP compliant devices to negotiate the aggregated link so the group may be changed dynamically

as needs require. In order to utilize the ability to change an aggregated port group, that is, to add or

subtract ports from the group, at least one of the participating devices must designate LACP ports as

active. Both devices must support LACP.

Passive - LACP ports that are designated as passive cannot initially send LACP control frames. In

order to allow the linked port group to negotiate adjustments and make changes dynamically, one

end of the connection must have "active" LACP ports.

Timeout: Specify the administrative LACP timeout. The possible field values are:

Short (3 Sec) - Defines the LACP timeout as 3 seconds.

Long (90 Sec) - Defines the LACP timeout as 90 seconds. This is the default value.

Click Apply to implement the changes made.

Configuration > BPDU Protection Settings

The BPDU Protection Settings page allows user to configure the BPDU protection function for the ports on

the Switch. In generally, there are two states in BPDU protection function. One is normal state, and another

is under attack state. The under attack state have three modes: drop, block, and shutdown. A BPDU

protection enabled port will enter and under attack state when it receives one STP BPDU packet. And it will

take action based on the configuration. Thus, BPDU protection can only be enabled on the STP-disabled

port. Select Enabled or Disabled and click Apply to enabled or disable the BPDU attack protection state.
