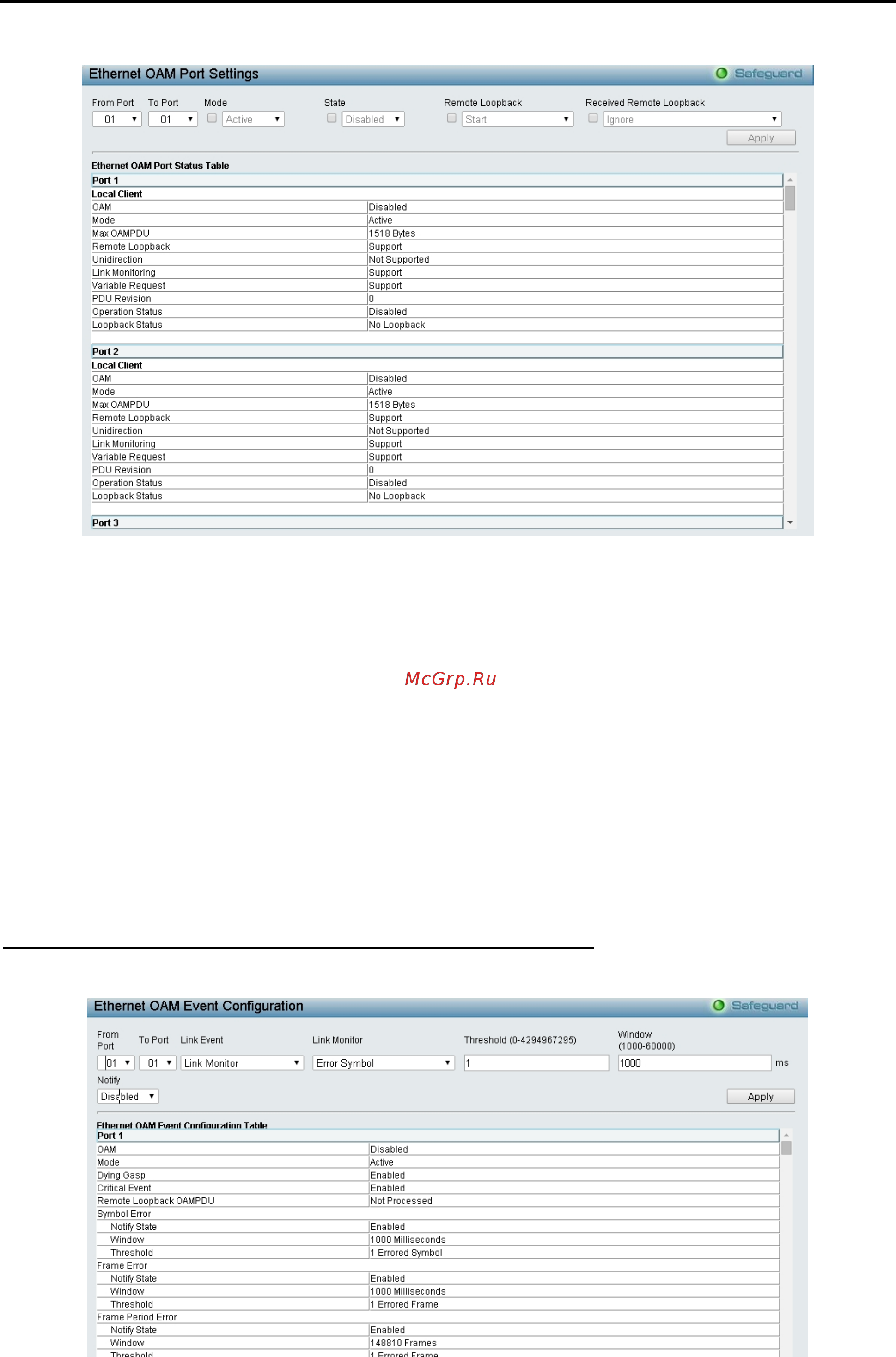

Figure 4.103 - Configuration > Ethernet OAM > Ethernet OAM Port Settings
From Port/To Port: Select a range of ports to be configured.
Mode: Use the drop-down menu to select to operate in either Active or Passive. The default mode is Active.
State: Use the drop-down menu to enable or disable the OAM function.
Remote Loopback: Specifies the Ethernet OAM remote loopback is None or Start.
None – Select to disable the remote loopback.
Start – Select to request the peer to change to the remote loopback mode.
Received Remote Loopback: To configure the client to process or to ignore the received Ethernet OAM
remote loopback command.
Process – Select to process the received Ethernet OAM remote loopback command.
Ignore – Select to ignore the received Ethernet OAM remote loopback command.
Click Apply to make the configurations take effect.
Configuration > Ethernet OAM > Ethernet OAM Event Configuration
The Ethernet OAM Event Configuration page allows user to configure the Ethernet OAM configuration
settings.
Figure 4.104 - Configuration > Ethernet OAM > Ethernet OAM Event Configuration
