4 Configuration DGS-1210 series Metro Ethernet Managed Switch User Manual
5
5
7
7

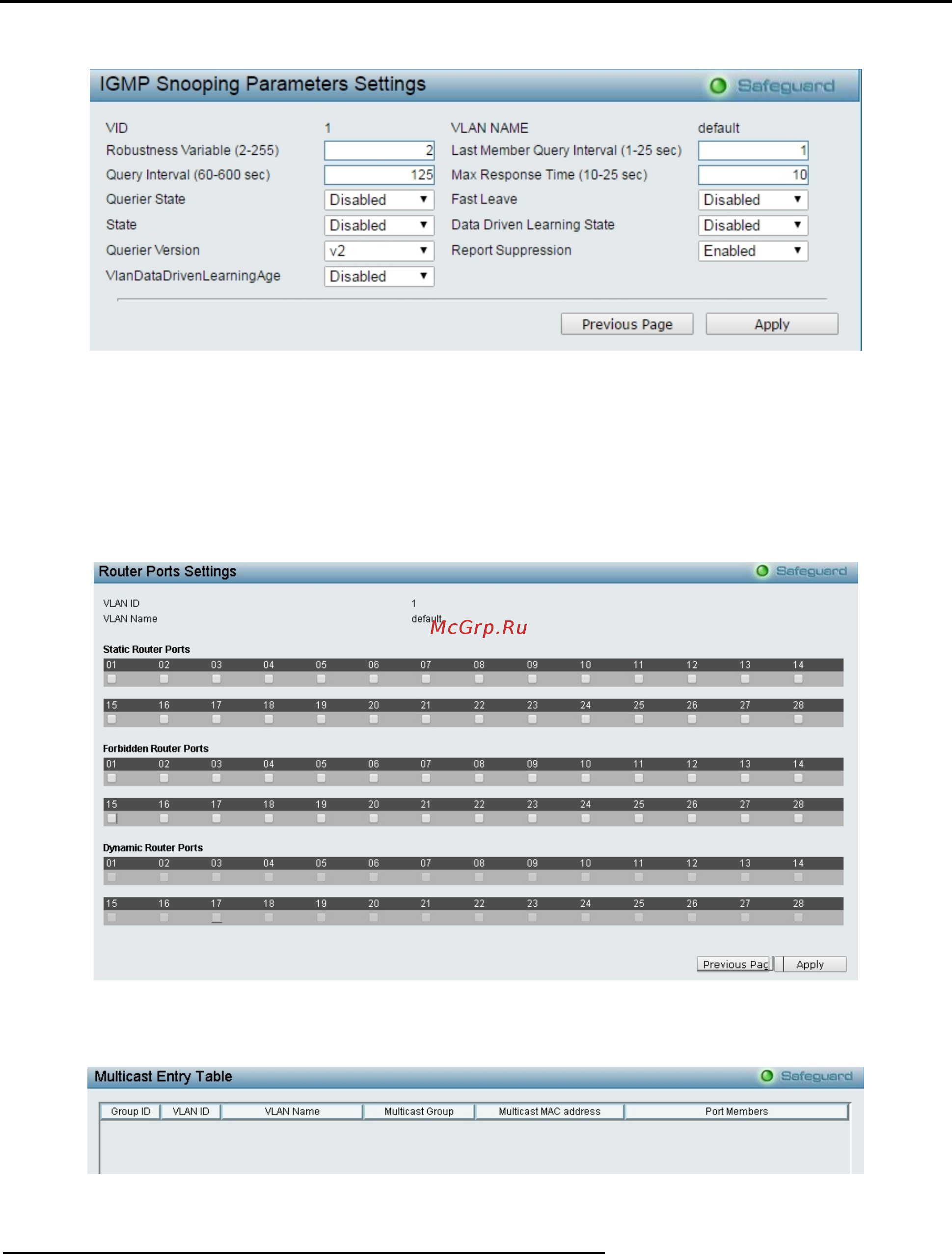

Figure 4.75 – Configuration > IGMP Snooping > IGMP Snooping-Parameters Settings
Click Edit button to enter the Router Port Settings page, and the ports to be assigned as router ports for
IGMP snooping for the VLAN.
A router port configured manually is a Static Router Port, a Forbidden Router Port and a Dynamic Router
Port is dynamically configured by the Switch when a query control message is received. Press Apply for
changes to take effect.
Figure 4.76 – Configuration > IGMP Snooping > IGMP Snooping-Router Port Settings
To view the Multicast Entry Table for a given VLAN, press the View button.
Figure 4.77– Configuration > IGMP Snooping > IGMP Snooping-Multicast Entry Table
Configuration > IGMP Snooping > IGMP Access Control Settings
The IGMP Access Control Settings page is used to enable or disable the IGMP access control of selected
ports.
