Using the DCS-37-3 Mount (optional)

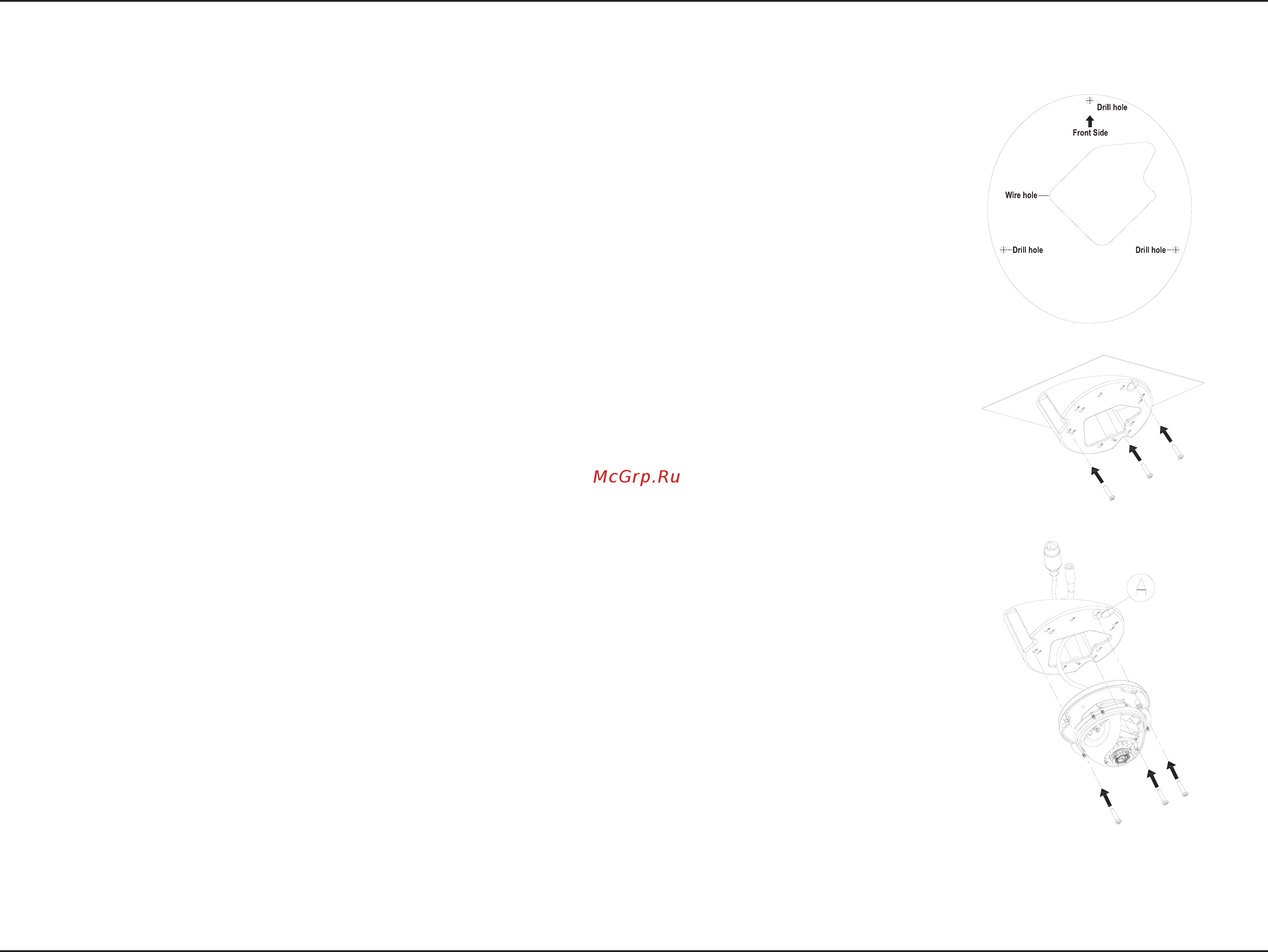

To mount the camera with the DCS-37-3 mount, follow the instructions below.

Step 2

Use the provided screws to mount the DCS-37-3 to the wall using the inner

mounting holes.

Step 1

Place the DCS-37-3 mounting sticker in the desired location, then use a 6 mm

drill bit to drill the required holes 25 mm deep and insert the wall anchors into

the holes. If you plan to pass cables through the wall, you will also need to drill

a hole for the cable channel.

Step 3

Remove the cover from the camera.

Pass the camera connectors through the cable channel on the DCS-37-3. Use the

provided screws to mount the camera to the DCS-37-3 using the set of mounting

holes marked A.

Step 4

Remove the inner cover and adjust the angle and rotation of the camera as

desired, then put the inner cover back in place.

Step 5

Attach the camera cover.
