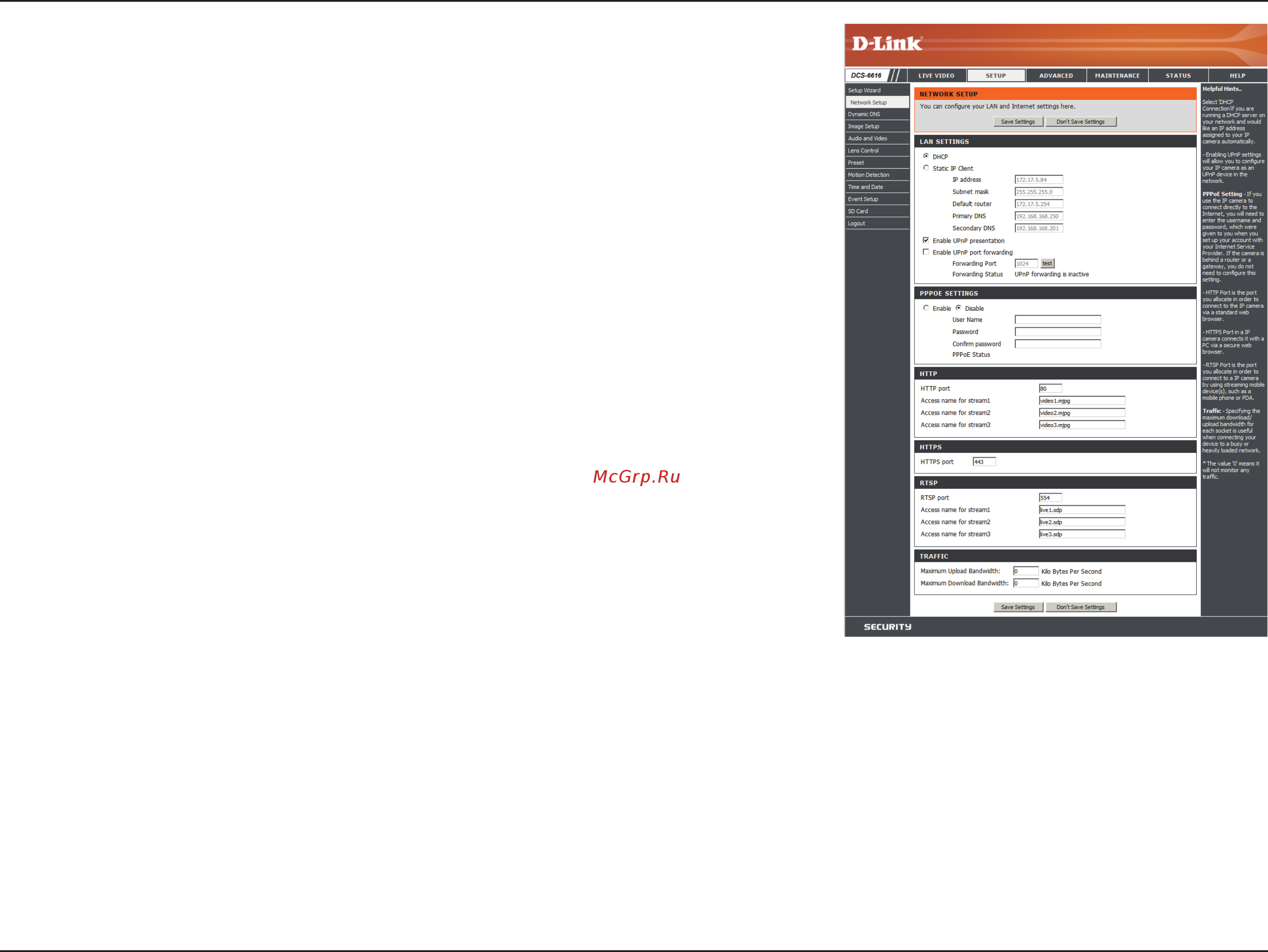

28D-Link DCS-6616 User Manual
Section 3 - Configuration
Enable PPPoE:
User Name:
Password:
HTTP Port:
Access Name for
Stream 1~3:
HTTPS Port:
RTSP Port:
Maximum Upload/
Download
Bandwidth:
Enable this setting if your network uses PPPoE.
The unique name of your account. You may obtain this
information from your ISP.
The password to your account. You may obtain this information
from your ISP.
The default port number is 80.
The default name is video#.mjpg, where # is the number of
the stream.
You may use a PC with a secure browser to connect to the
HTTPS port of the camera. The default port number is 443.
The port number that you use for RTSP streaming to mobile
devices, such as mobile phones or PDAs. The default
port number is 554. You may specify the address of a
particular stream. For instance, live1.sdp can be accessed at
rtsp://x.x.x.x/video1.sdp where the x.x.x.x represents the ip
address of your camera.
Specifying the maximum download/upload bandwidth for each
socket can be useful when connecting your device to a busy or
heavily loaded network. Entering a value of '0' indicates that the
camera should not monitor bandwidth. Specifying other values
will limit the camera's transfer speed to the specied number
of Kilobytes per second.
