8D-Link DCS-6616 User Manual
Section 2 - Installation

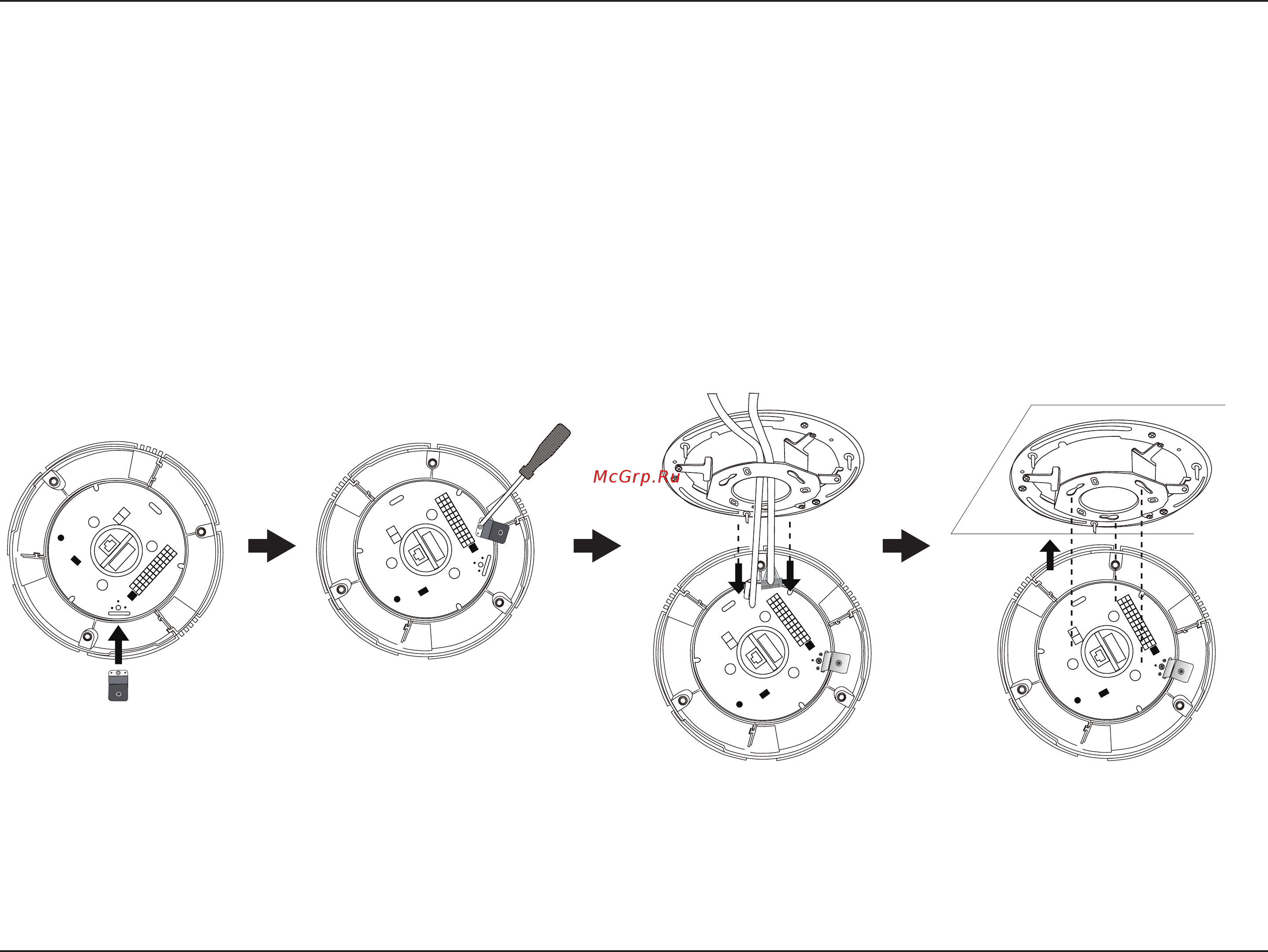

Insert the xing plate into the groove as shown below.
Align the three holes to screw the xing plate to the dome bas.
Connect the cable connector and Ethernet cable to the dome base.
Align plate A and plate B, then use those three hole to hook the Network Camera on the ceiling mount bracket.
A
B
