9D-Link DCS-6616 User Manual
Section 2 - Installation
Tighten the screw on the xing plat.

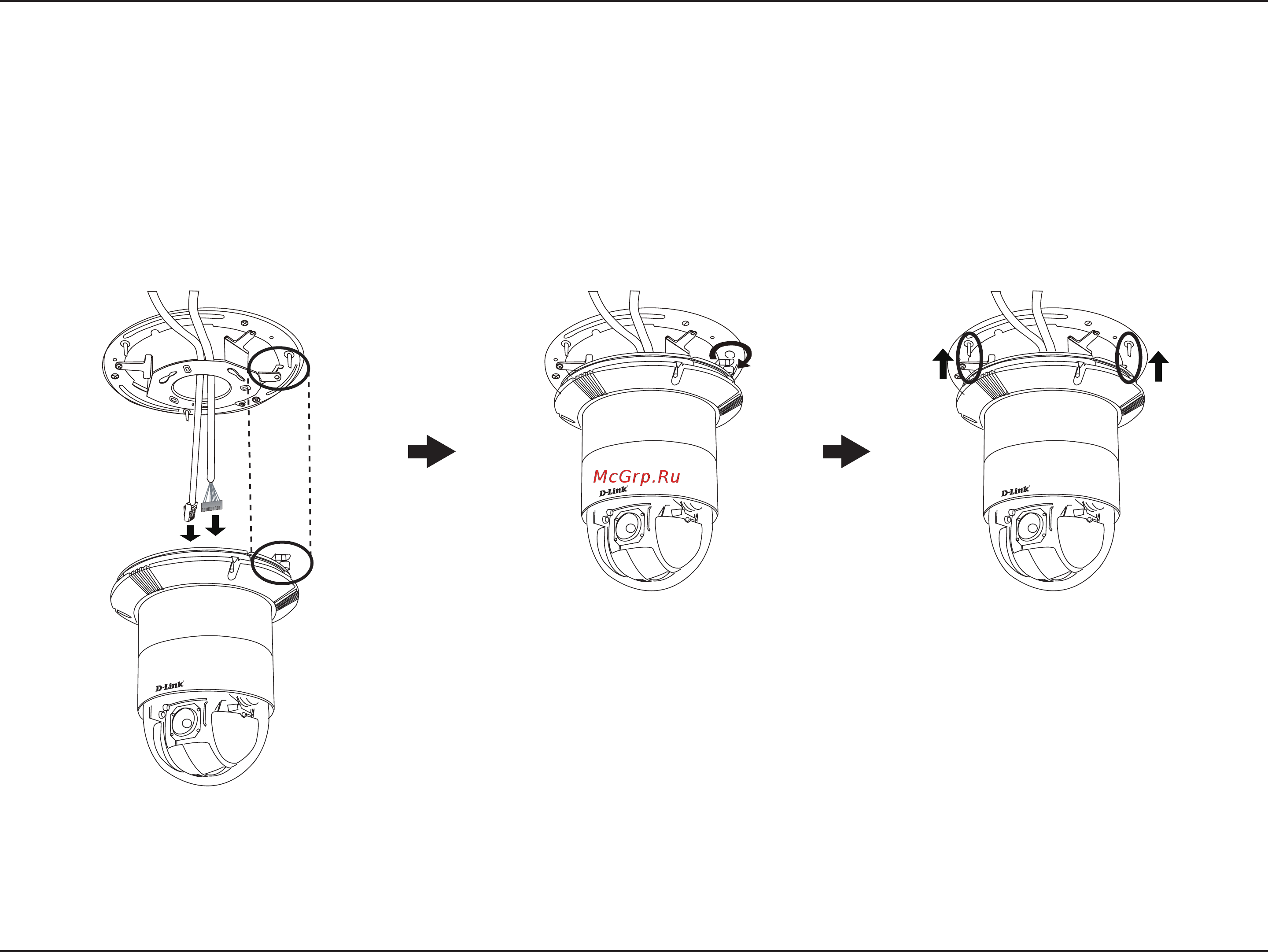

Align the three holes to mount the decoration ring.
