57D-Link DCS-6616 User Manual
Section 3 - Configuration

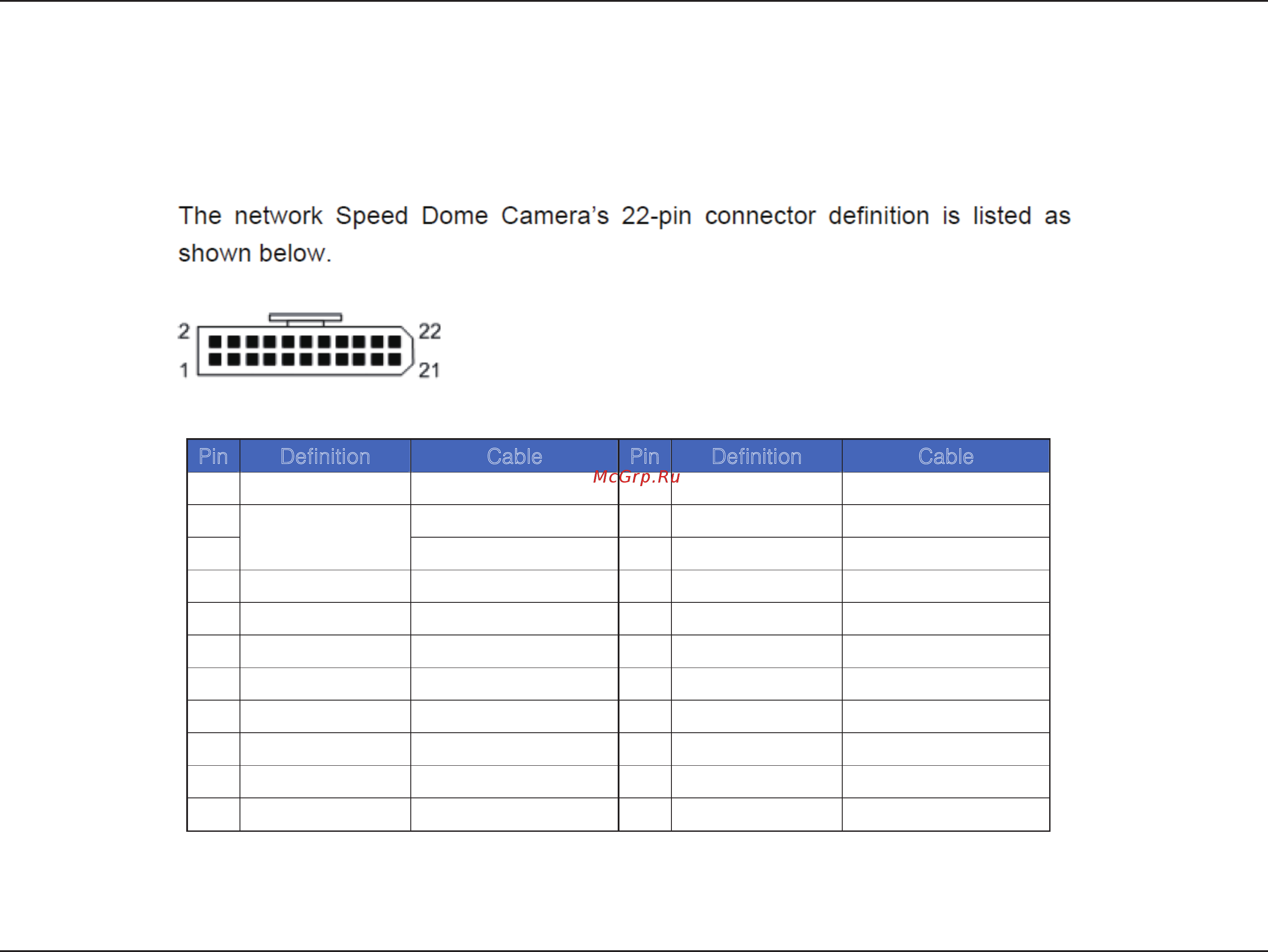

DI/DO Pin Block Specications
DI/DO Conguration
Pin Definition Cable Pin Definition Cable
1 DC12V IN RED (18AWG) 2 ALM NC WHITE
3 BLACK (18AWG) 4 ALM NO BLACK/WHITE
5
GND
YELLOW (18AWG) 6 ALM COM GREEN/BLACK
7 Audio in YELLOW 8 Audio out ORANGE
9 Audio GND GREEN 10 Audio GND BROWN
11 ISOG BLUE/WHITE 12 ALM-1 RED/WHITE
13 ALM-3 PURPLE 14 ALM-2 GREY
15 ALM-4 BLUE 16 ALM-5 WHITE/BLACK
17 ALM-6 ORANGE/BLACK 18 ALM-7 PURPLE/WHITE
19 ALM-8 GREY/BLACK 20 ALM GND BROWN/WHITE
21 VGND BLACK 22 Video RED
