D-Link DCS-7000L [40/63] Preset

40D-Link DCS-7000L User Manual

Section 4: Conguration

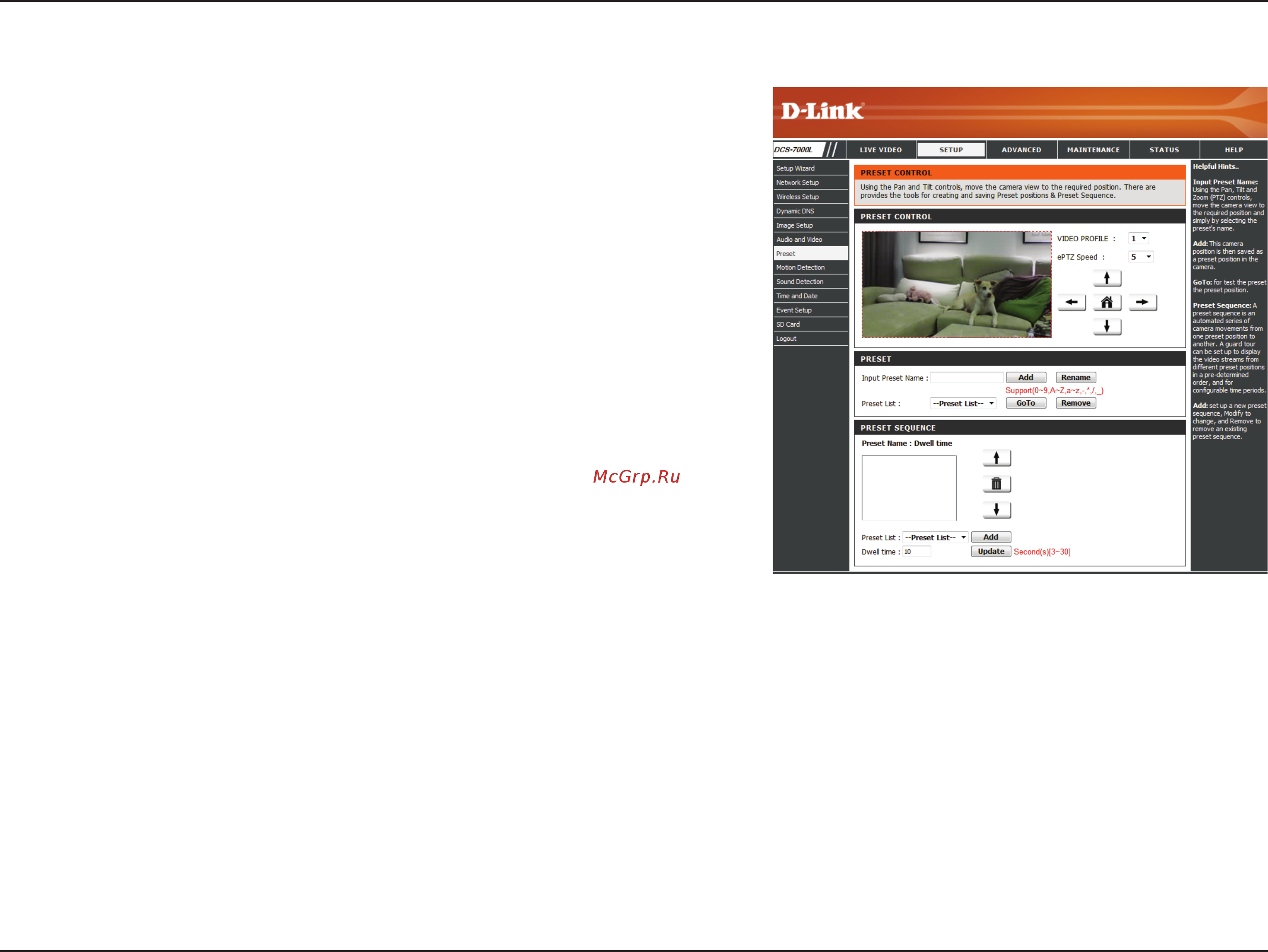

Preset

This screen allows you to set preset points for the ePTZ function of the camera,

which allows you to look around the camera's viewable area by using a zoomed

view. Presets allow you to quickly go to and view a specic part of the area your

camera is covering, and you can create preset sequences, which will automatically

change the camera's view between the dierent presets according to a dened

order and timing you can set.

Note: If your View window area is the same as your Frame size, you will not be able

to use the ePTZ function.

Video Prole:

ePTZ Speed:

Arrow Buttons

and Home

Button:

Input Preset

Name:

Preset List:

Preset

Sequence:

This selects which video prole to use.

You may select a value between 0 and 64. 0 is the slowest and 64

is the fastest.

Use these buttons to move to a specic part of the viewing area,

which you can then set as a preset. Click the Home button to

return to the center of the viewing area.

Enter the name of the preset you want to create, then click the

Add button to make a new preset. If an existing preset has been

selected from the Preset List, you can change its name by typing

in a new name, then clicking the Rename button.

Click this drop-down box to see a list of all the presets that have

been created. You can select one, then click the GoTo button to

change the displayed camera view to the preset. Clicking the

Remove button will delete the currently selected preset.

This section allows you to create a preset sequence, which

automatically moves the camera's view between a set of preset

views.
