9D-Link DCS-7000L User Manual
Section 1: Product Overview

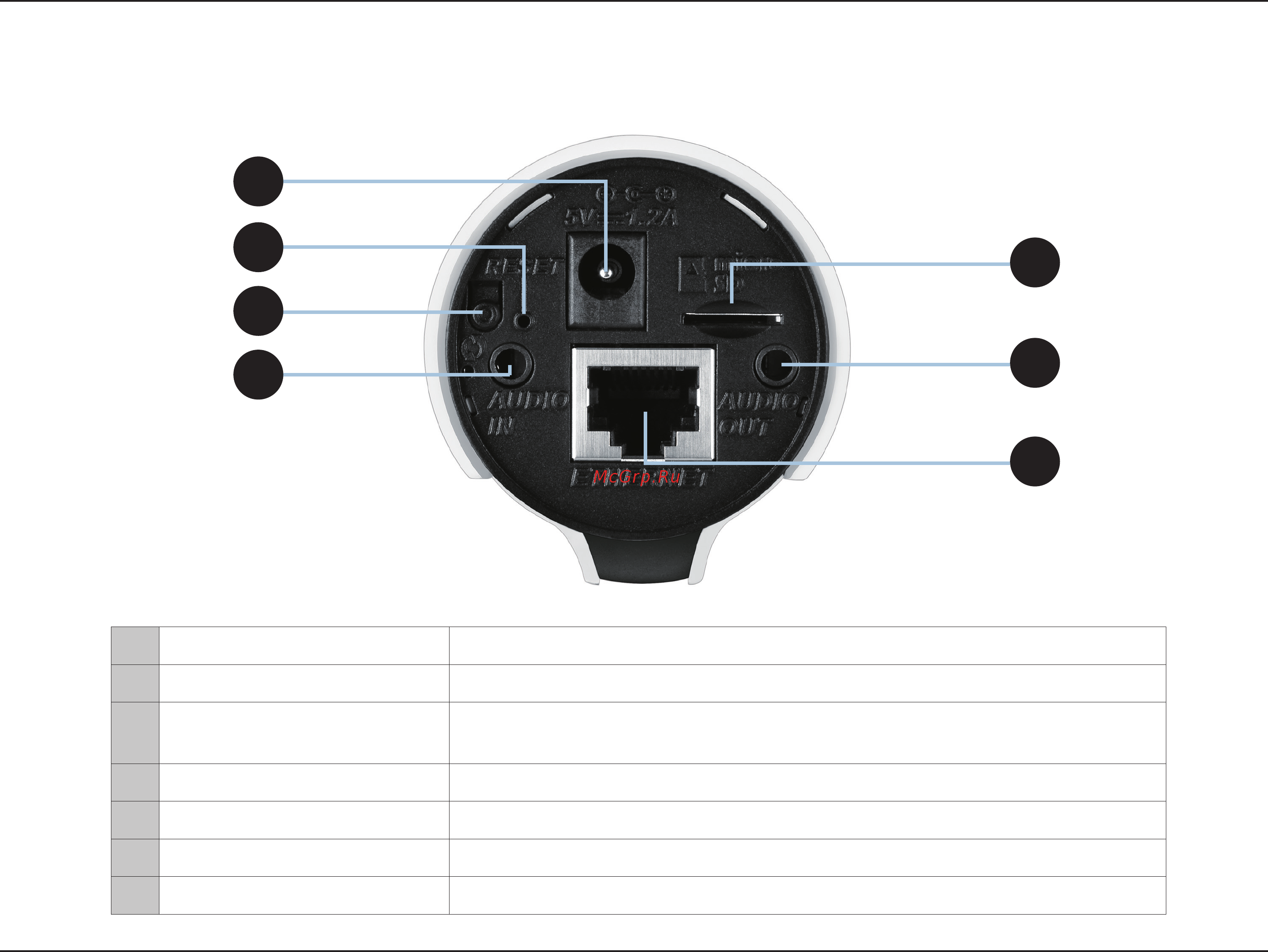

Rear
1 Power Connector
Connects to the included DC 5 V power adapter
2 Reset Button
Press and hold this button for 10 seconds to reset the camera
3 WPS Button
Press this button for 3 seconds, then within the next 60 seconds press the WPS
button on your router to set up a wireless connection automatically
4 Audio In
Connect an audio jack to override the built-in audio input
5 microSD Card Slot Insert a microSD or microSDHC card to store recordings (max. capacity 32 GB)
6 Audio Out Connect an audio jack for audio output
7 Ethernet Port
RJ45 connector for Ethernet
3
1
2
4
5
6
7
