DVG-5008SG User’s Manual VoIP Gateway Configuration
D-Link Systems, Inc. 13
3. VoIP Gateway Web Configuration
3-1 Status
3-1-1 Current Status
Status Ш Current Status

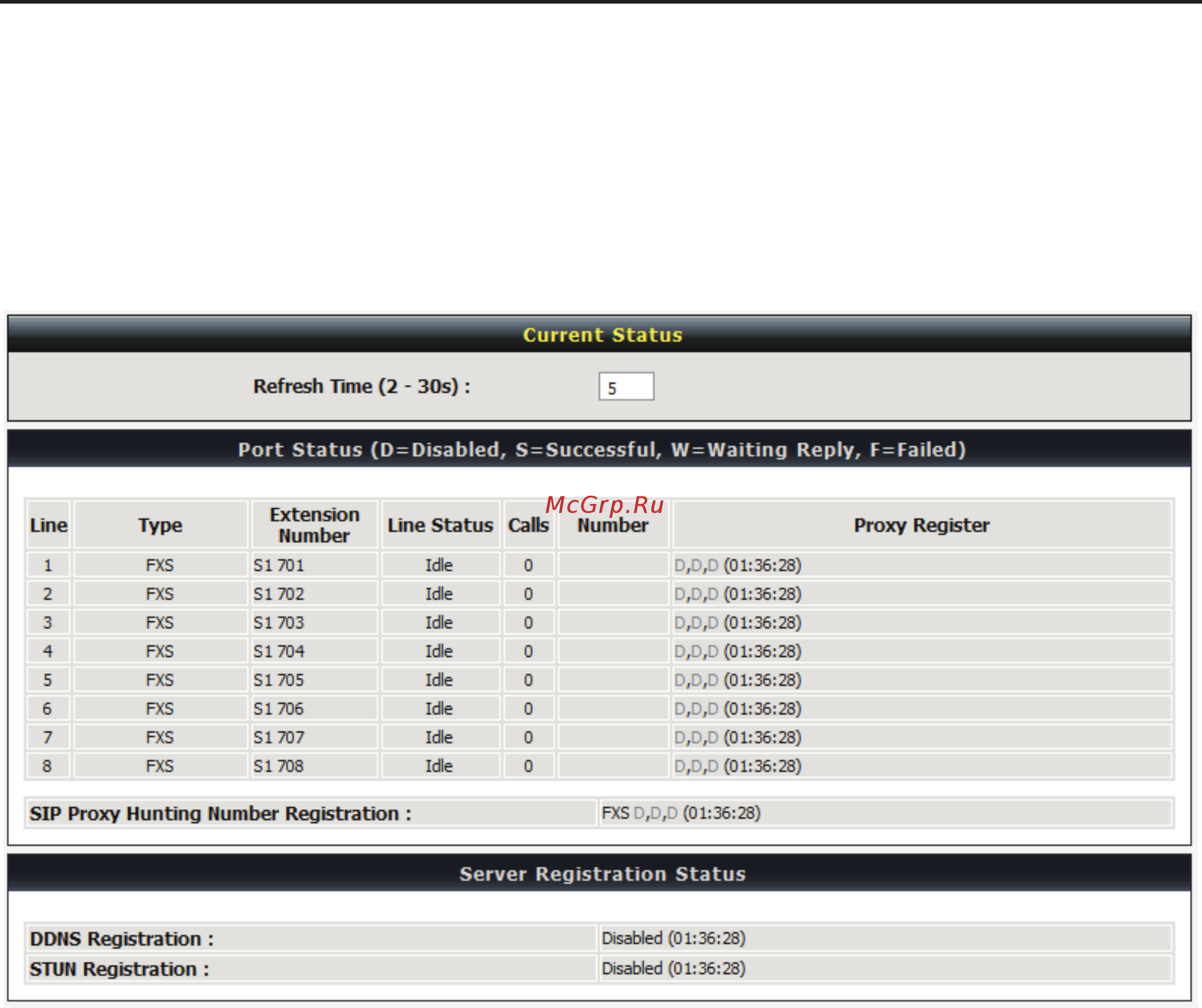

For Port Status, it includes if each port registers to Proxy successfully, the last dialed number, how many
calls each port has made since the VoIP Gateway is start, etc.
For Server Registration Status, it shows the registration status of DDNS, STUN and FXS Represent
Number.
