DVG-5008SG User’s Manual VoIP Gateway Configuration
D-Link Systems, Inc. 44
3-3-11 CDR Settings
The user can set up a CDR Server to record call details for every phone call.

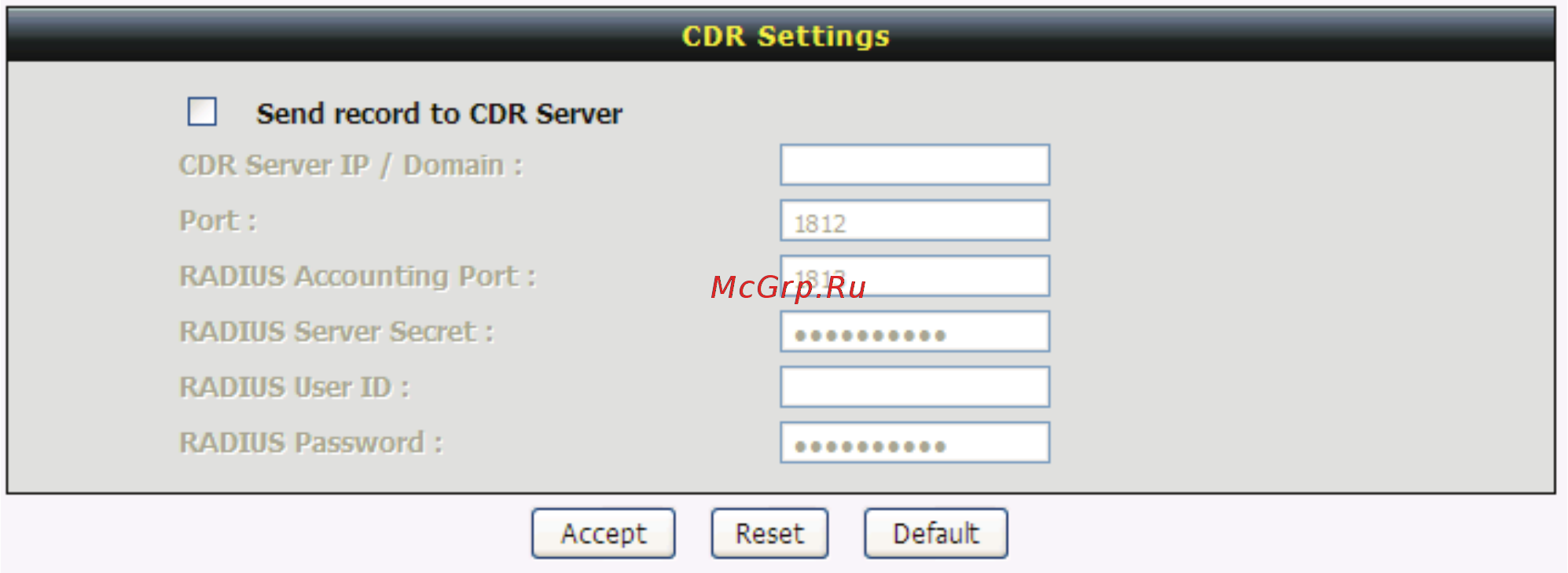

General Settings Ш CDR
Send record to CDR Server: Tick the check box to enable the call detail recording.
CDR Server IP / Domain: Enter the IP address of the CDR server.
Port: Enter the listen port of the CDR server.
RADIUS: Tick the checkbox to enable RADIUS as database and enter the information of RADIUS needed.
It includes RADIUS Accounting Port, RADIUS Server Secret, RADIUS User ID and RADIUS Password.
