DVG-5008SG User’s Manual VoIP Gateway Configuration
D-Link Systems, Inc. 17
3-2 FXS Line Diagnostics

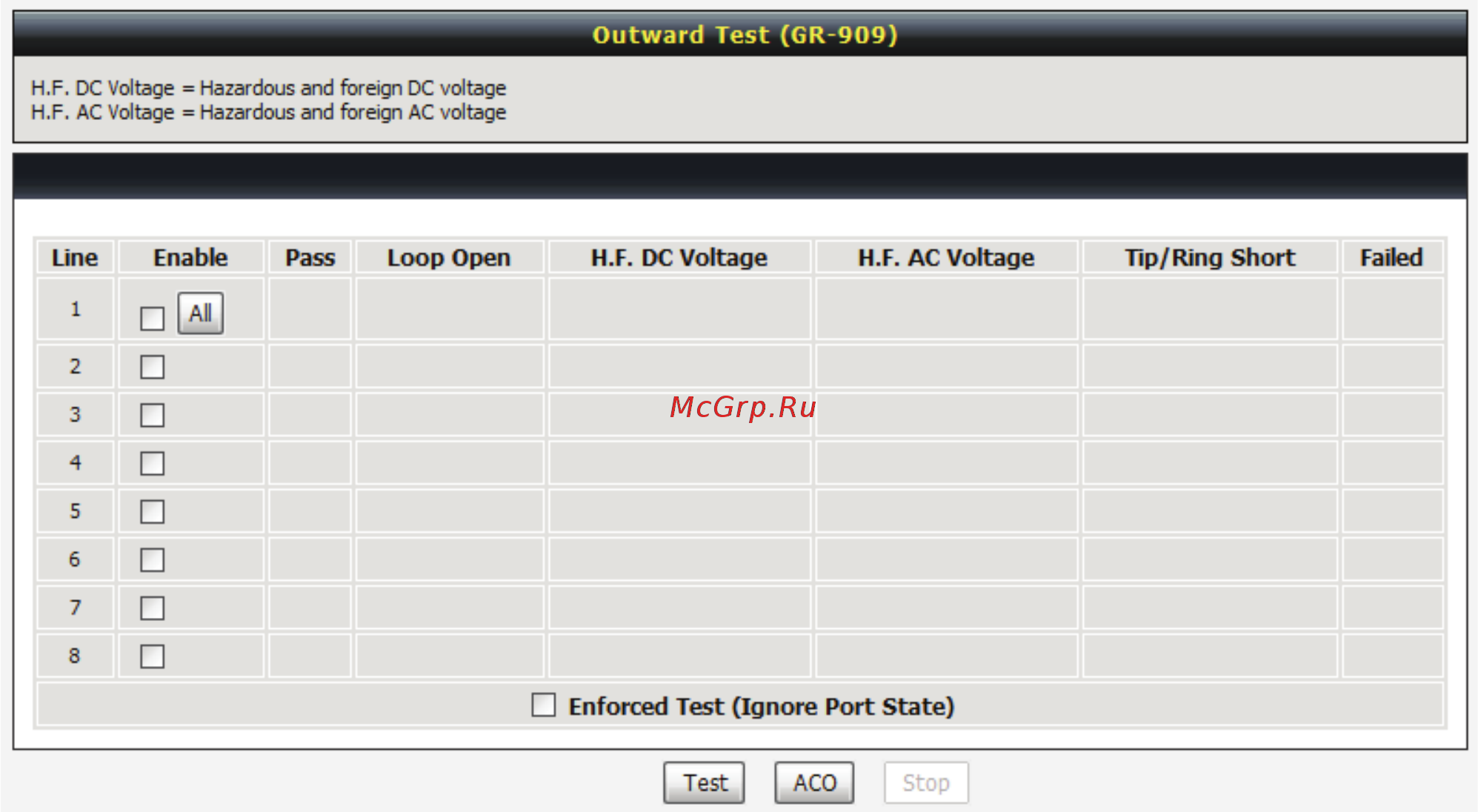

3-2-1 FXS Outward Test
FXS Line Diagnostics Æ FXS Outward Test
It allows operator to verify whether it is some problem on the cable between Phone Sets and DVG-5008SG.
Enable: Select the lines you want to test.
Including Channel In Used: Since the line test will interrupt a talking call, that DVG-5008SG will ignore the
in used line. If you would like to test all the lines you select even it is in used, please tick this item.
Test: Click start to test.
ACO: Clear alarm indication of the last test result.
