D-Link DVG-5008SG [28/81] 3 4 sip advanced

DVG-5008SG User’s Manual VoIP Gateway Configuration

D-Link Systems, Inc. 28

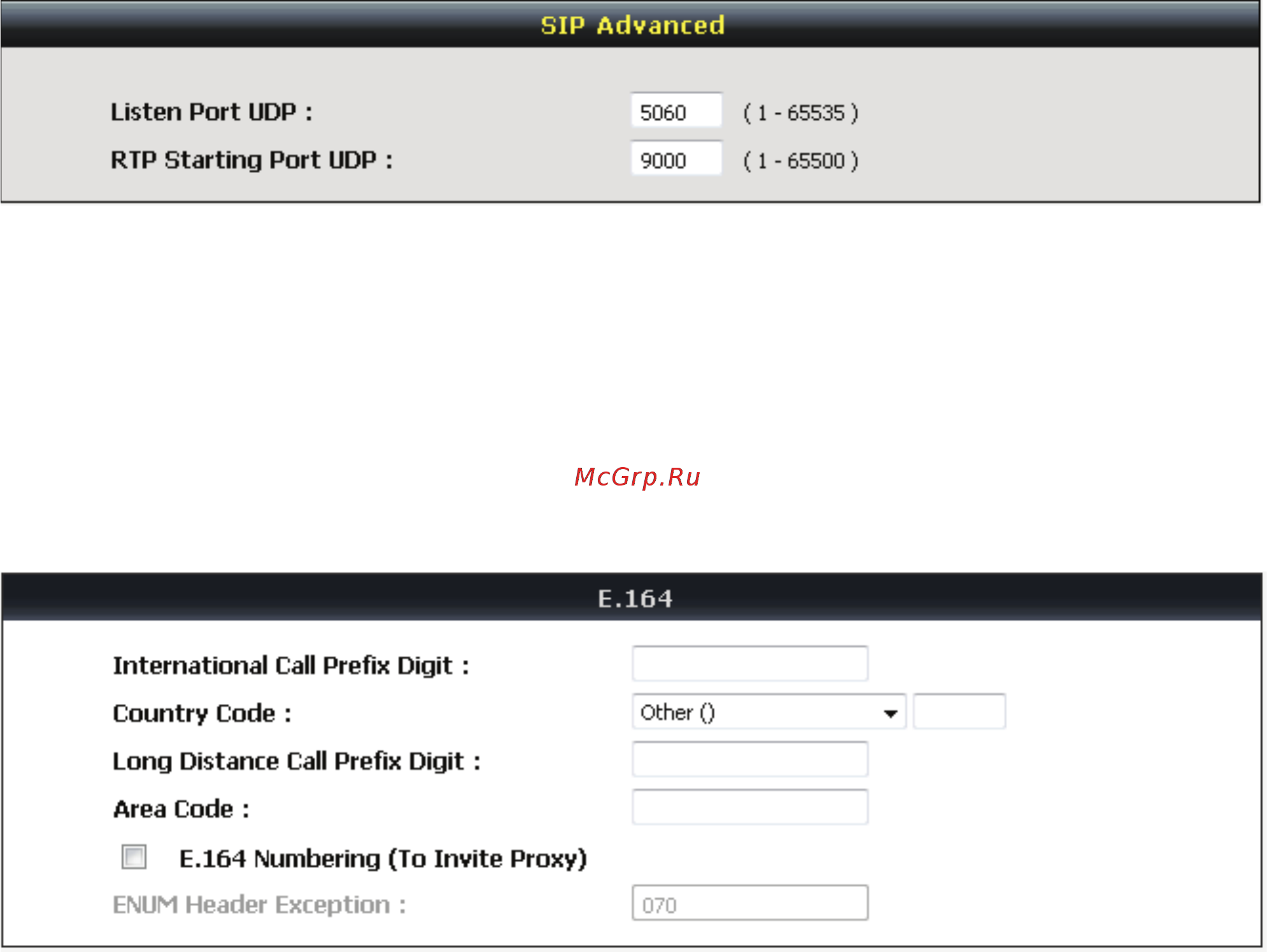

3-3-4 SIP Advanced

General Settings Ш SIP Advanced

Listen Port UDP: Enter the VoIP Gateway’s listening port in this field. Leave it as default settings, unless it

conflicts with ports used by other device in your network.

RTP Starting Port UDP: Enter the starting port number or transmitting voice data among VoIP devices.

Each line requires 2 ports.

For example, if the starting port is 9000, then Line 1 will take up ports 9000 and 9001, and Line 2 will take

up ports 9002 and 9003, and so forth.

General Settings Ш SIP Advanced

International Call Prefix Digit: Enter the International call prefix.

Country Code: Select the desired country code from the drop-down menu or enter the country code if

Other is selected.

Long Distance Call Prefix Digit: Enter the long-distance prefix digit for making a long-distance call.

Area Code: Enter the area code.

E.164 Numbering (To Invite Proxy): This variable is followed the E.164 rule, but it depends on the SIP

proxy server. Click the check box to send the number following the E.164 rule by the VoIP Gateway.

ENUM Header Exception: Enter the prefix number that the VoIP Gateway sends the number without

followed the E.164 rule.

Note: E.164 Numbering depends on the proxy. If you fail to make a call, please contact your VoIP

Service Providers.
