DVG-5008SG User’s Manual Telephone Interface Description
D-Link Systems, Inc. 5
1-2 Hardware Description

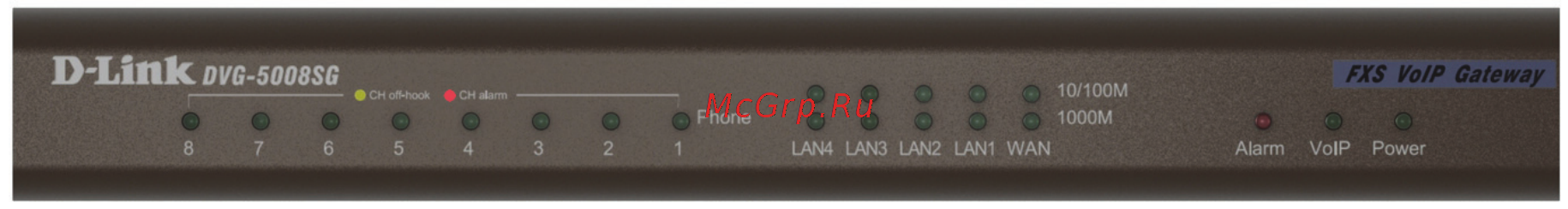

Front Pannel
Indicators
Power: Power LED. A steady light indicates a proper connection to a power source.
VoIP: The VoIP LED will turn on when the VoIP Gateway is connected to a VoIP service provider. The LED
will blink if not connected to a service provider.
Alarm: A blinking light indicates the VoIP Gateway is attempting to connect with the Provisioning server or
DVG can’t get IP from DHCP or PPPoE Server. Once the service connects, the LED will turn off. The LED
will light solid red if the self-test or boot-up fails.
WAN: When a connection is established the LED will light up solid. The LED will blink to indicate activity. If
the LED does not light up when a cable is connected, verify the cable connections and make sure your
devices are powered on.
LAN: When a connection is established the LED will light up solid on the appropriate port. The LEDs will
blink to indicate activity. If the LED does not light up when a cable is connected, verify the cable
connections and make sure your devices are powered on.
Phone:
Green Blinking – FXS is alerting (ringing) for an inbound call.
Green Solid – The line is in use.
Red Solid – As users execute “Status-> FXS Line Diagnostic” and there is some error on the FXS port.
