DVG-5008SG User’s Manual VoIP Gateway Configuration
D-Link Systems, Inc. 51
Advanced Settings Ш CPT / Cadence

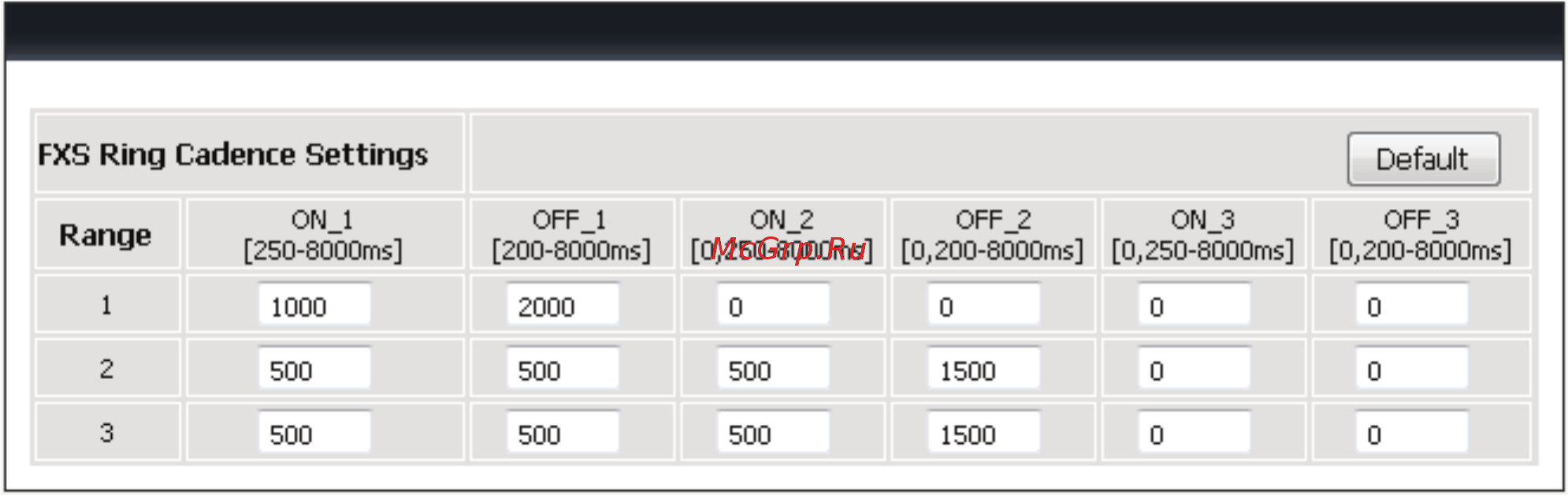

FXS Ring Cadence Settings: Specify the ring cadence for the FXS port. In this field, you specify the on
and off pulses for the ring. The ring cadence that should be configured differs depending on local PSTN or
PBX settings and requirements.
