overview
14_ overview

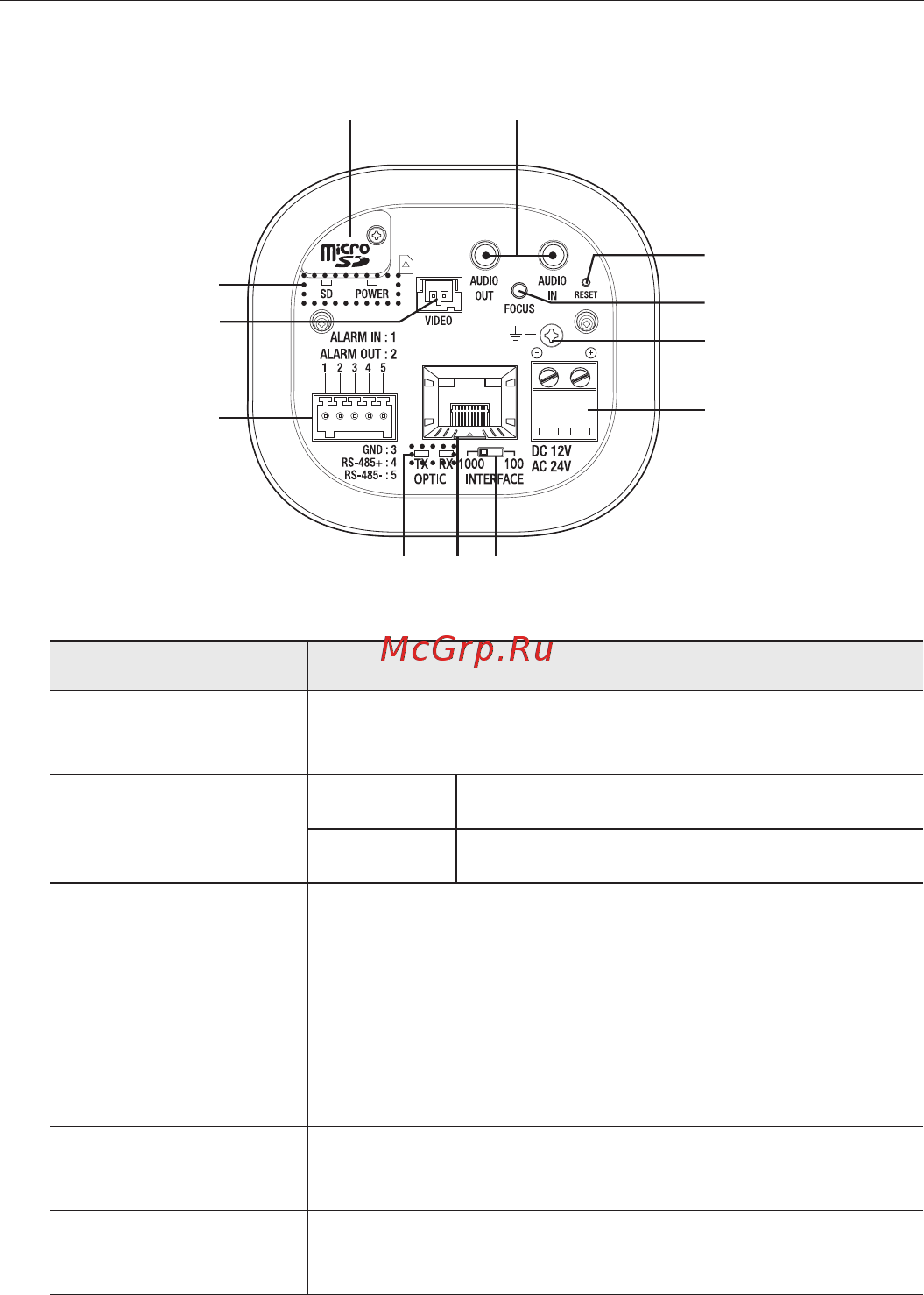

Rear Side
Item Description
a
Micro SD Memory
Card Compartment
Compartment for the Micro SD memory card.
b
Audio terminal
AUDIO OUT Used to connect to speakers.
AUDIO IN Used to connect to a microphone.
c
Reset Button
The button restores all camera settings to the factory default.
Press and hold for about 5 seconds to reboot the system.
J
If you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
d
Focus Adjustment
Button
The button adjusts the focus of image automatically.
e
Lightning protective
grounding port
Used to discharge the lightning current safely outside in order to protect the
camera.
a b
c
f
hgi
j
l
e
k
d
