installation & connection
18_ installation & connection
INSERTING/REMOVING A MICRO SD MEMORY CARD
J
`
Disconnect the power cable from the camera before inserting the Micro SD memory card.
`
Do not insert the Micro SD memory card while it’s upside down by force.
Otherwise, it may damage the Micro SD memory card.

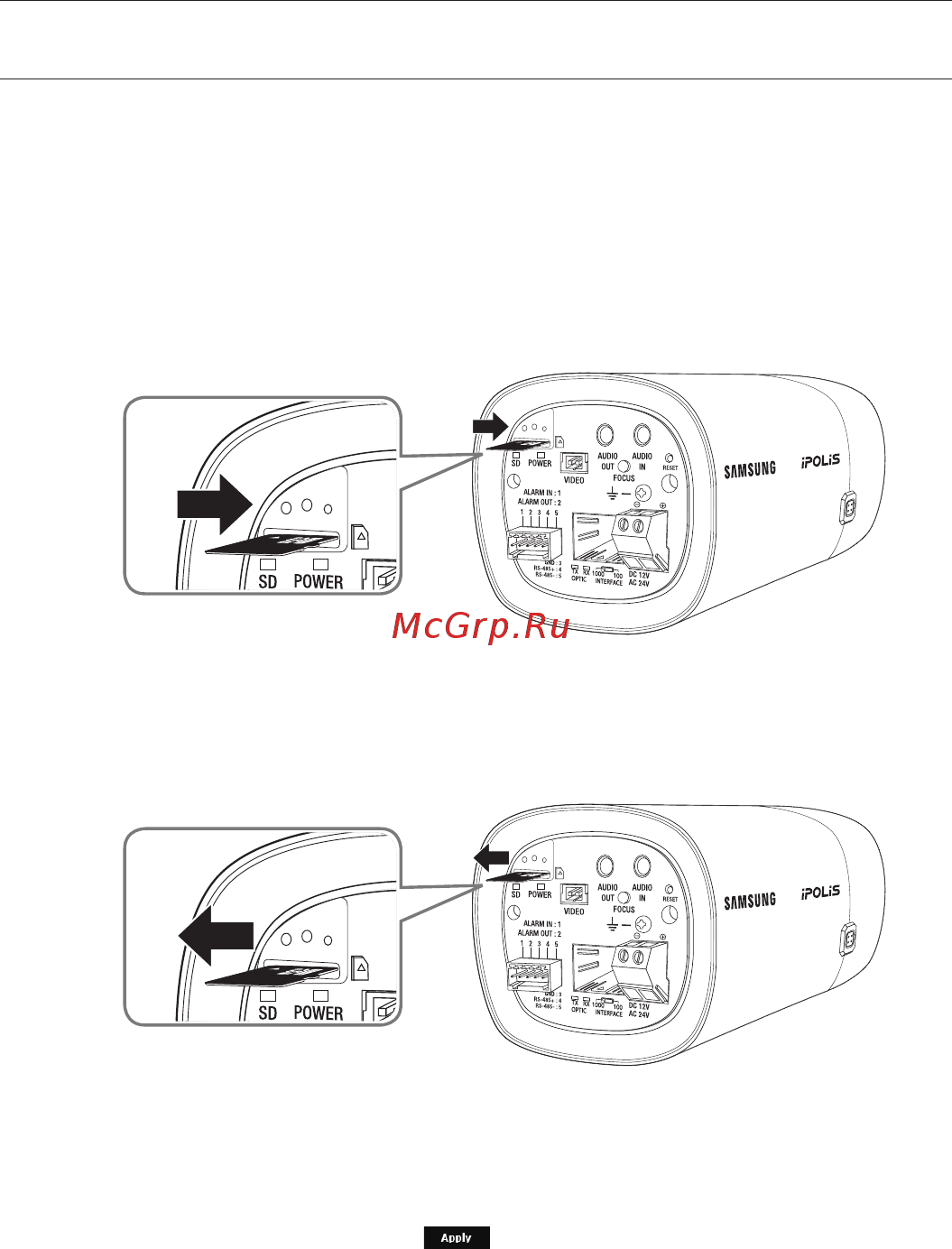

Inserting a Micro SD Memory Card
Push the Micro SD memory card in the direction of the arrow shown in the diagram.
Removing a Micro SD Memory Card
Gently press down on the exposed end of the memory card as shown in the diagram to
eject the memory card from the slot.
J
`
Pressing too hard on the Micro SD memory card can cause the card to shoot out uncontrollably
from the slot when released.
`
Before removing your Micro SD memory card, turn off the camera or go to <Storage>, turn the
device off, and press the [Apply (
)] button. (Page 96)
`
If you turn off the camera or remove the Micro SD memory card that contains data from the
product, the data may be lost or damaged.
