TX-6610

1-Port Gigabit GPON Terminal User Guide

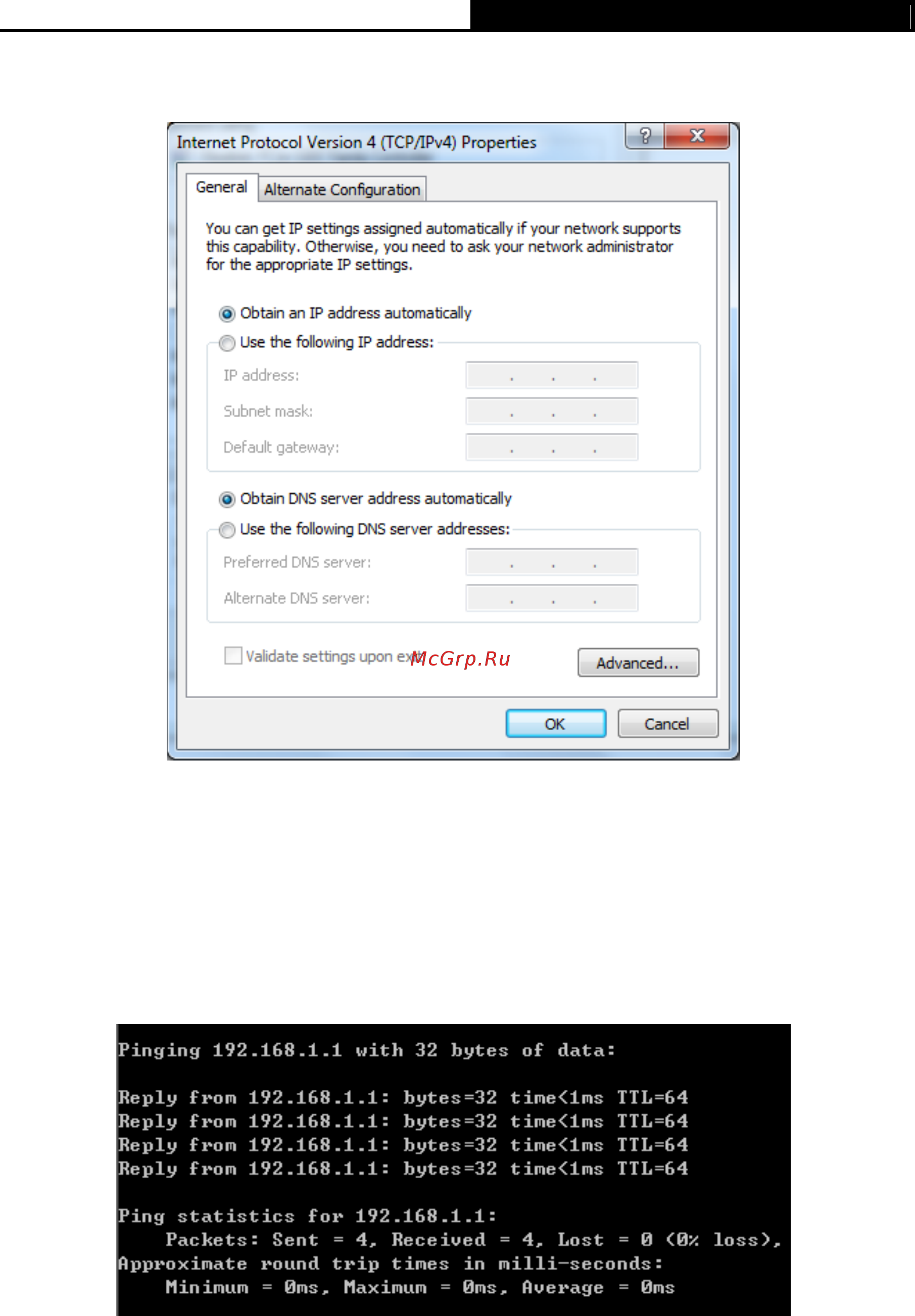

Step 4: Select both Obtain an IP address automatically and Obtain DNS server address

automatically. Then click OK.

Figure 3-3

Step 5: Back to previous interface, click OK to save the settings.

Now, you can run the Ping command in the command prompt to verify the network connection.

Please click the Start menu on your desktop, select run tab, type cmd or command in the field

and press Enter. Type ping 192.168.1.1 on the next screen, and then press Enter.

If the result displayed is similar to the screen below, the connection between your PC and the

Terminal has been established.

Figure 3-4

If the result displayed is similar to the screen shown below, it means that your PC has not

connected to the Terminal.
