TX-6610

1-Port Gigabit GPON Terminal User Guide

 System Status: Here shows the system information of the Terminal.

 LAN: The current port status of the Terminal.

 PON: Here shows the Terminal’s current GPON module information.

 Statistics: Here you can view the statistics of the Terminal.

Click Refresh to update this page.

4.3 Network Setting

Choose “Network Setting”, there are three submenus under the main menu. Click any one of

them, and you will be able to configure the corresponding function.

4.3.1 PON Certification

Choose “Network Setting”“PON Certification”, the GPON Configuration screen will appear on

the page as shown in Figure 4-2. You are required to enter the GPON Password or GPON SN or

both to pass the ISP authentication before you connect to the Internet. For details, please consult

your ISP.

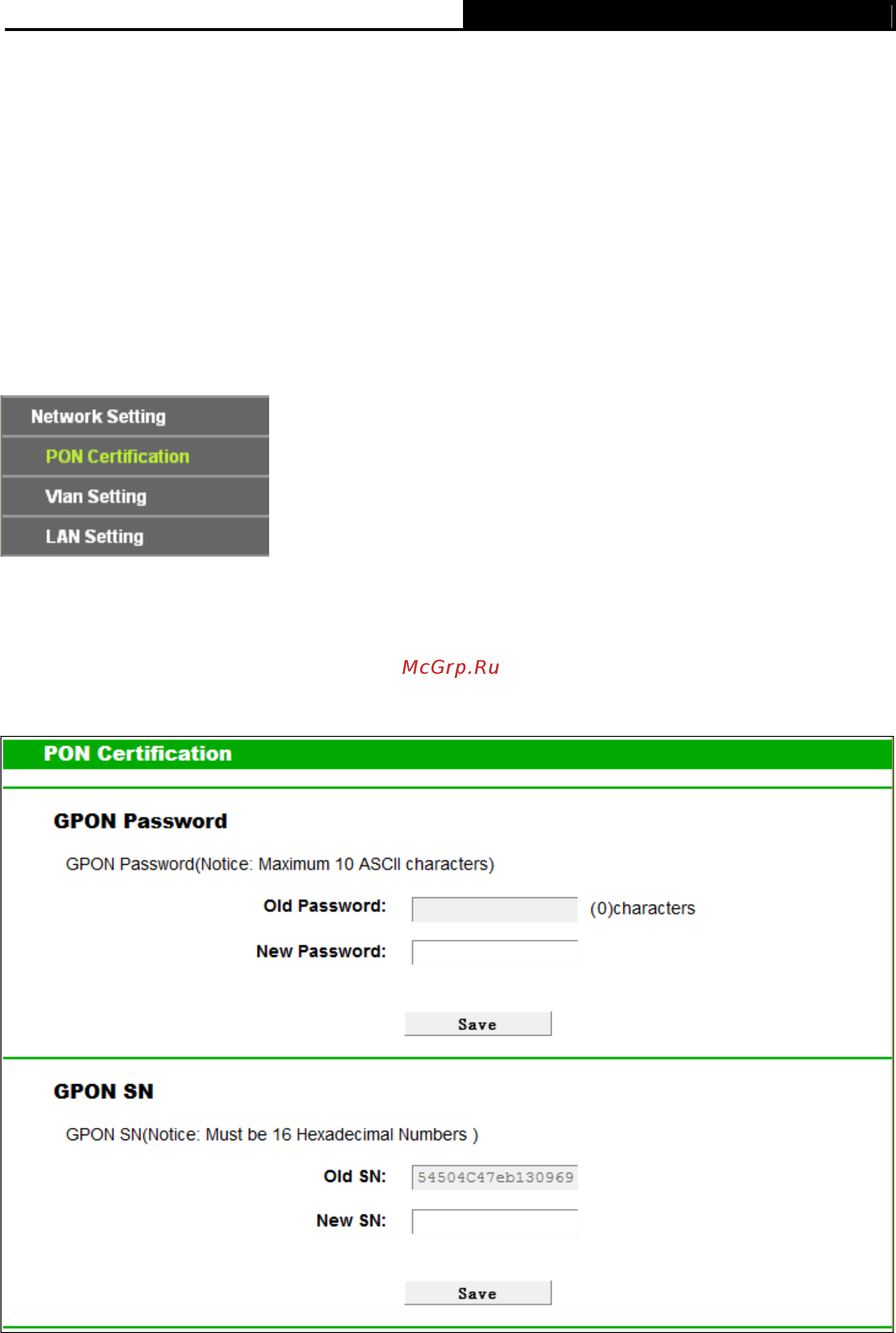

Figure 4-2
