TX-6610

1-Port Gigabit GPON Terminal User Guide

4.3.3 LAN Setting

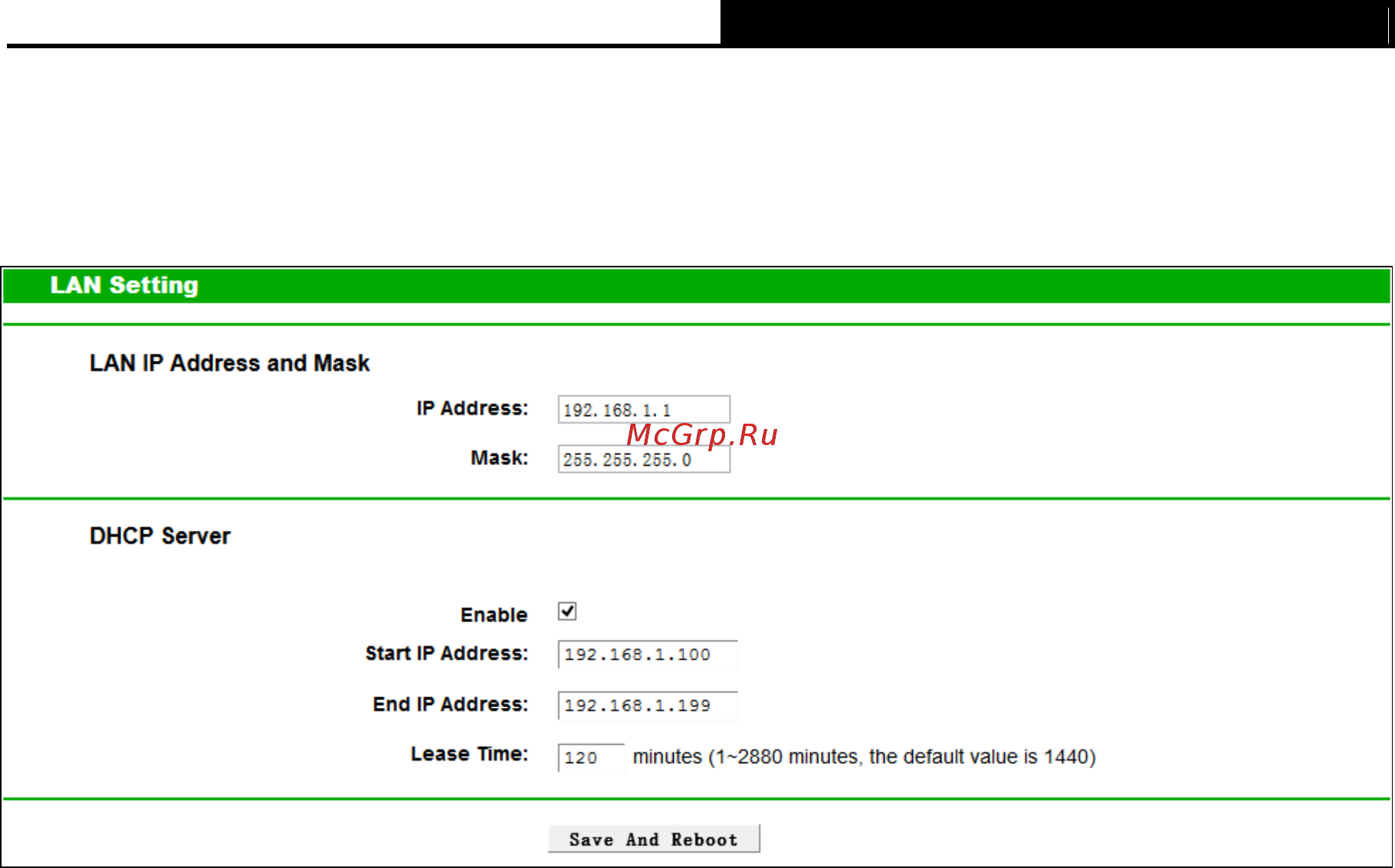

Choose “Network Setting”“LAN Setting” menu and you will see the LAN screen as shown in

Figure 4-4. You can change the LAN IP address on this page.

Figure 4-4

 LAN IP Address and Mask:

 IP Address: Enter the Terminal’s local IP Address, then you can access to the

Web-based Utility via the IP Address, the default value is 192.168.1.1.

 Mask: Enter the Terminal’s Subnet Mask, the default value is 255.255.255.0.

 DHCP Server: These settings allow you to configure the Terminal‘s Dynamic Host

Configuration Protocol (DHCP) server function. The DHCP server is enabled by default for the

Terminal’s Ethernet LAN interface. DHCP service will supply IP settings to computers which

are configured to automatically obtain IP settings that are connected to the Terminal though

the Ethernet port. Keep in mind that if you change the IP address of the Terminal, you must

change the range of IP addresses in the pool used for DHCP on the LAN.

 Start IP Address:Enter a value for the DHCP server to start with when issuing IP

addresses. Because the default IP address for the Terminal is 192.168.1.1, the default

Start IP Address is 192.168.1.2, and the Start IP Address must be 192.168.1.2 or greater,

but smaller than 192.168.1.254.

 End IP Address: Enter a value for the DHCP server to end with when issuing IP

addresses. The End IP Address must be smaller than 192.168.1.254.

 Lease Time: The Lease Time is the amount of time in which a network user will be

allowed connection to the Terminal with their current dynamic IP address. Enter the

amount of time, then the user will be “lease” this dynamic IP address. After the dynamic

IP address has expired, the user will be automatically assigned a new dynamic IP

address.

Click Save And Reboot to make the settings take effect.



Note:

If you change the IP Address of LAN, you must use the new IP Address to log in the Terminal.
