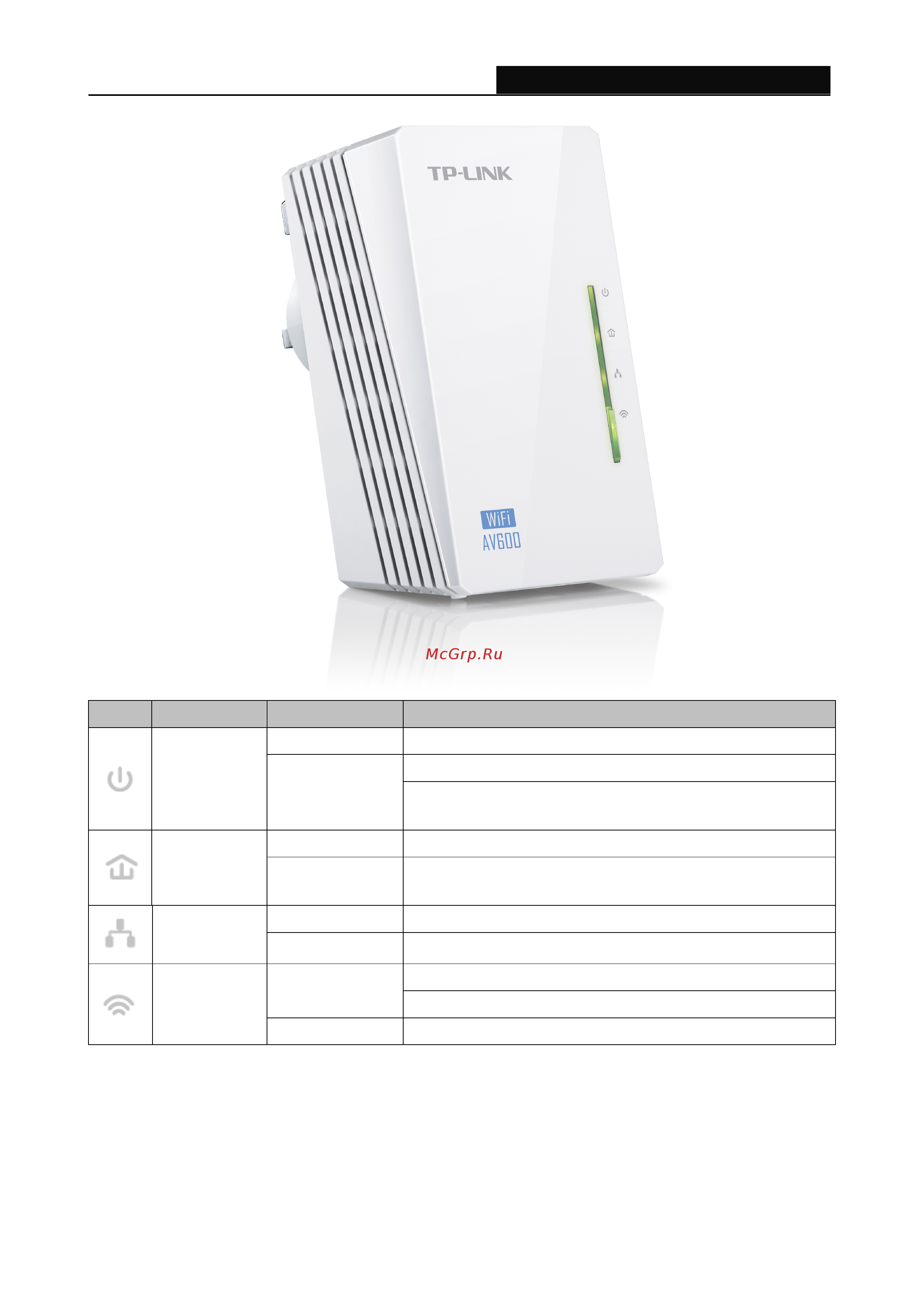

TL-WPA4220

AV600 Powerline Wi-Fi Extender

LEDs

Name

Status

Indication

Power LED

On/ Off

The device is on or off.

Blinking

Once every second: Pairing is in process.

Once every 15 seconds: Power-Saving Mode is on.

(Powerline adapter only).

Powerline

LED

The device is connected to the powerline network.

Off

The device is not connected to any powerline network or

is in Power-Saving Mode.

Ethernet LED

On The Ethernet port is connected.

Off

The Ethernet port isn’t connected.

Wi-Fi/Wi-Fi

Clone LED

Blinking

Rapidly: The Wi-Fi is working properly.

Once every second: Wi-Fi cloning is in process.

Off

The Wi-Fi is disabled.
