Tp-Link TL-WPA4220KIT V1 [27/48] Wireless mac filtering

TL-WPA4220

AV600 Powerline Wi-Fi Extender

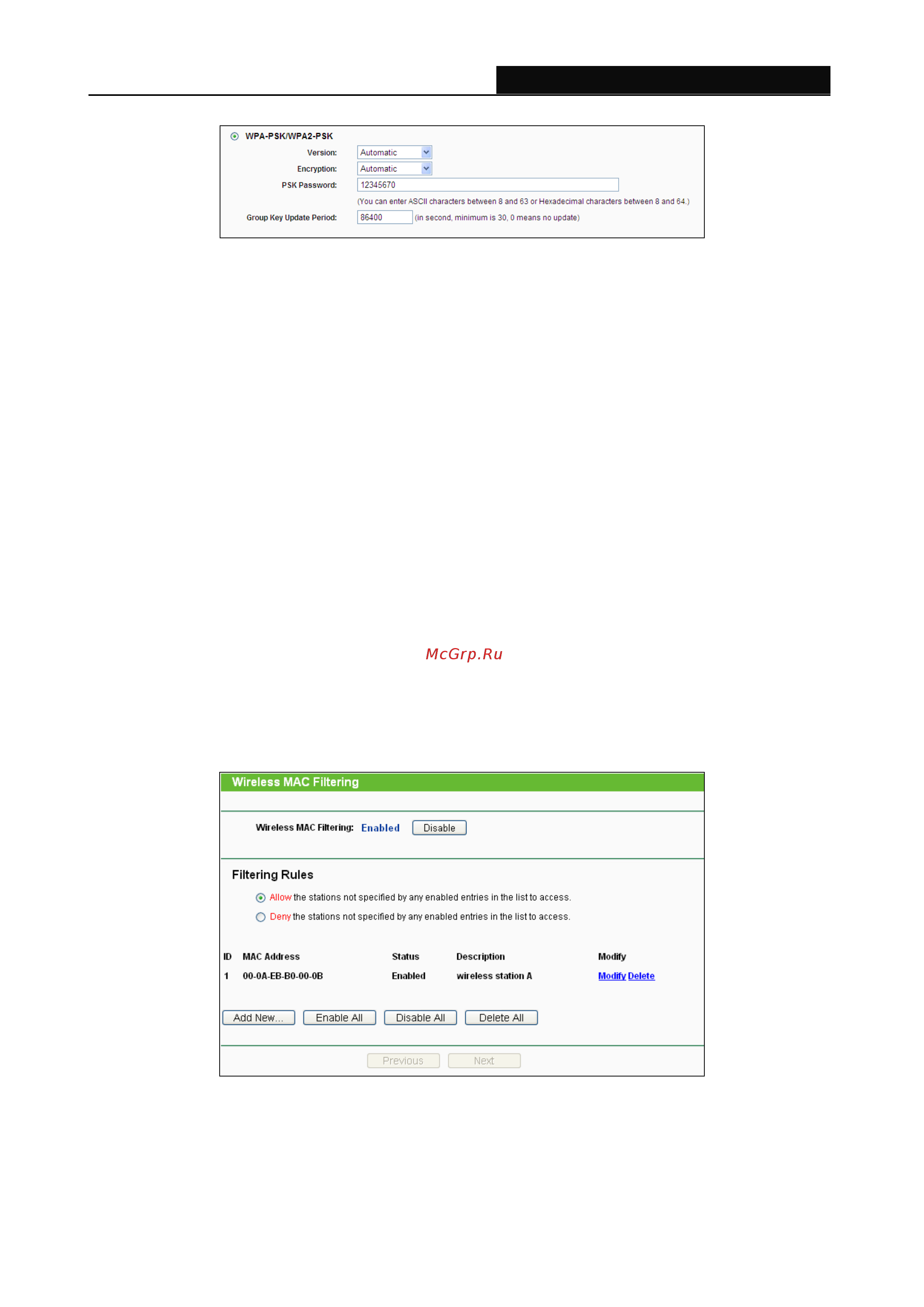

Figure 3-12 WPA-PSK/WPA2-PSK

• Version - You can select one of the following versions.

 Automatic - Select WPA-PSK or WPA2-PSK automatically based on the wireless station's

capability and request.

 WPA-PSK - Pre-shared key of WPA.

 WPA2-PSK - Pre-shared key of WPA2.

• Encryption - When you select WPA-PSK or WPA2-PSK for Authentication Type, you can

select either Automatic, TKIP or AES as Encryption.

• PSK Password - Enter a password here.

• Group Key Update Period - Specify the group key update interval in seconds. The value can

be either 0 or at least 30. Enter 0 to disable the update.

Be sure to click the Save button to save your settings on this page.



Note:

You will be reminded to reboot the device after clicking the Save button.

3.4.3 Wireless MAC Filtering

Selecting Wireless > Wireless MAC Filtering will allow you to set up some filtering rules to control

wireless stations accessing the device, which depends on the station’s MAC address on the following

screen as shown in Figure 3-13.

Figure 3-13 Wireless MAC Filtering

 Wireless MAC Filtering - Click the Enable button to enable the Wireless MAC Address Filtering.

The default setting is disabled.

To Add a Wireless MAC Address filtering entry, click the Add New button. The “Add or Modify Wireless

MAC Address Filtering entry" page will appear, shown in Figure 3-14.
