TL-WPA4220
AV600 Powerline Wi-Fi Extender
2

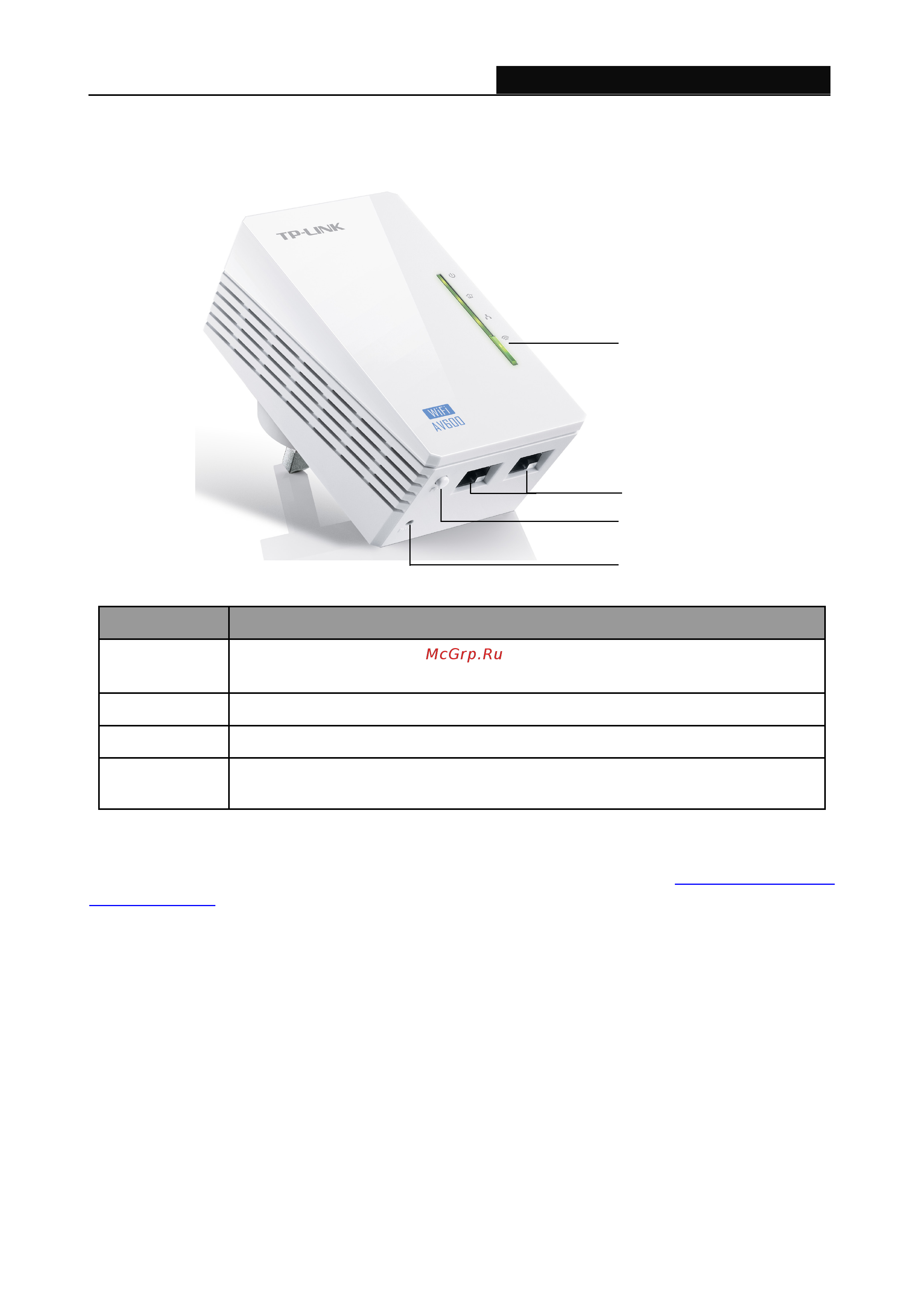

1.3 Physical Interface
There are four physical items on this device.
Item Description
Wi-Fi/Wi-Fi
Clone Button
Press the button for 2 seconds to start Wi-Fi Clone.
Press the button for 5 seconds to enable or disable the wireless function.
Ethernet Port
Two 10/100Mbps Ethernet port connected to PC LAN card or broadband device.
Reset Button Press the button for about 5 seconds, the device will restore to its factory defaults.
Pair Button
Press the button for 1 second to start the pairing process.
Press and hold the button for 10 seconds to leave the powerline network.
Note:
For detailed information about the Reset button and Pair button, please refer to Chapter 5 Pair Button
and Reset Button.
1.4 LED Indicator
The LED indicator displays information about the device’s status.
Wi-Fi/Wi-Fi Clone Button
Ethernet Port
Pair Button
Reset Button
