Tp-Link TL-WPA4220KIT V1 [31/48] Network settings

TL-WPA4220

AV600 Powerline Wi-Fi Extender



Note:

This page will be refreshed automatically every 5 seconds.

3.5 Powerline

There are two submenus under the Powerline menu (shown in Figure 3-17 Wireless menu): Network

Settings and Station Settings. Click any of them, and you will be able to configure the corresponding

function. The detailed explanations for each submenu are provided below.

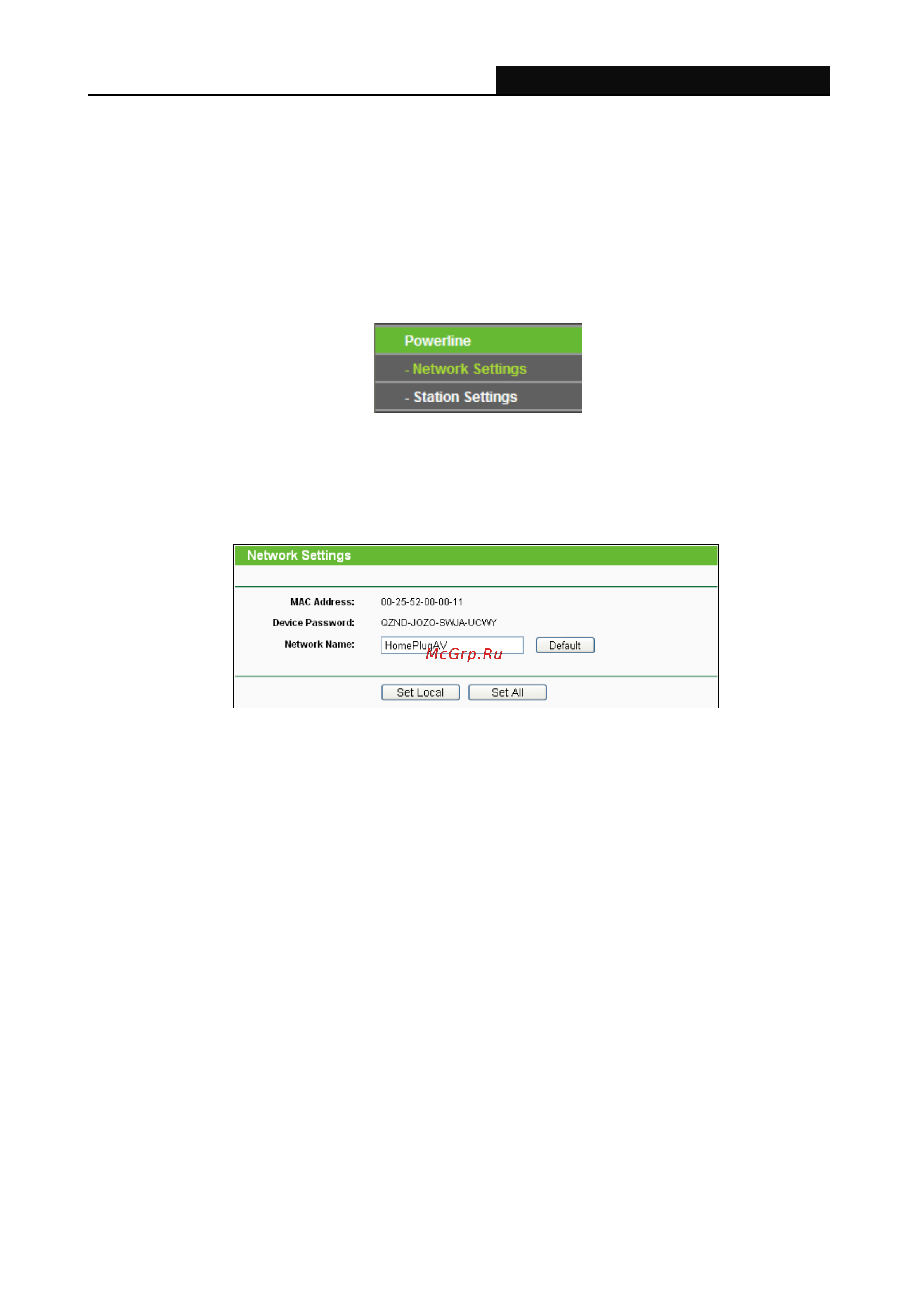

Figure 3-17 Wireless menu

3.5.1 Network Settings

Selecting Powerline > Network Settings, and you can configure the network name of the powerline

extender or all the stations in current network on this page.

Figure 3-18 Network Settings

 MAC Address - The physical address of the powerline extender, as seen from the powerline. The

value can not be changed.

 Device Password - The password of the powerline extender. The value can not be changed.

 Network Name - Enter the network name (factory default - HomePlugAV).

Click the Default button to enter the default network name.

Click the Set Local button to set the powerline extender.

Click the Set All button to set all stations which entered the correct passwords in current network,

including the powerline extender.



Note:

If you set all stations network name, the remote ones which is powered off or entered the wrong

password will not take effect.

3.5.2 Station Settings

The Station Settings page shows remote stations in current network and allows you to enter, modify or

delete the password and name for each station.
