Appendix - 86 -
3. Assign Array Disks: After a RAID mode is selected, RAID BIOS automatically assigns the two hard drives
installed as the RAID drives.
4. Set Block Size (RAID 0 only): Under the Block item, use the up or down arrow key to select the stripe
block size (Figure 6), ranging from 4 KB to 128 KB. Press <Enter>.
5. Set Array Size: Under the Size item, enter the size of the array and press <Enter>.
6. Conrm Creation: After all of the items above are congured, the selection bar automatically jumps to the
Conrm Creation item. Press <Enter>. When prompted to conrm your selection (Figure 7), press <Y> to
conrm or <N> to abort.

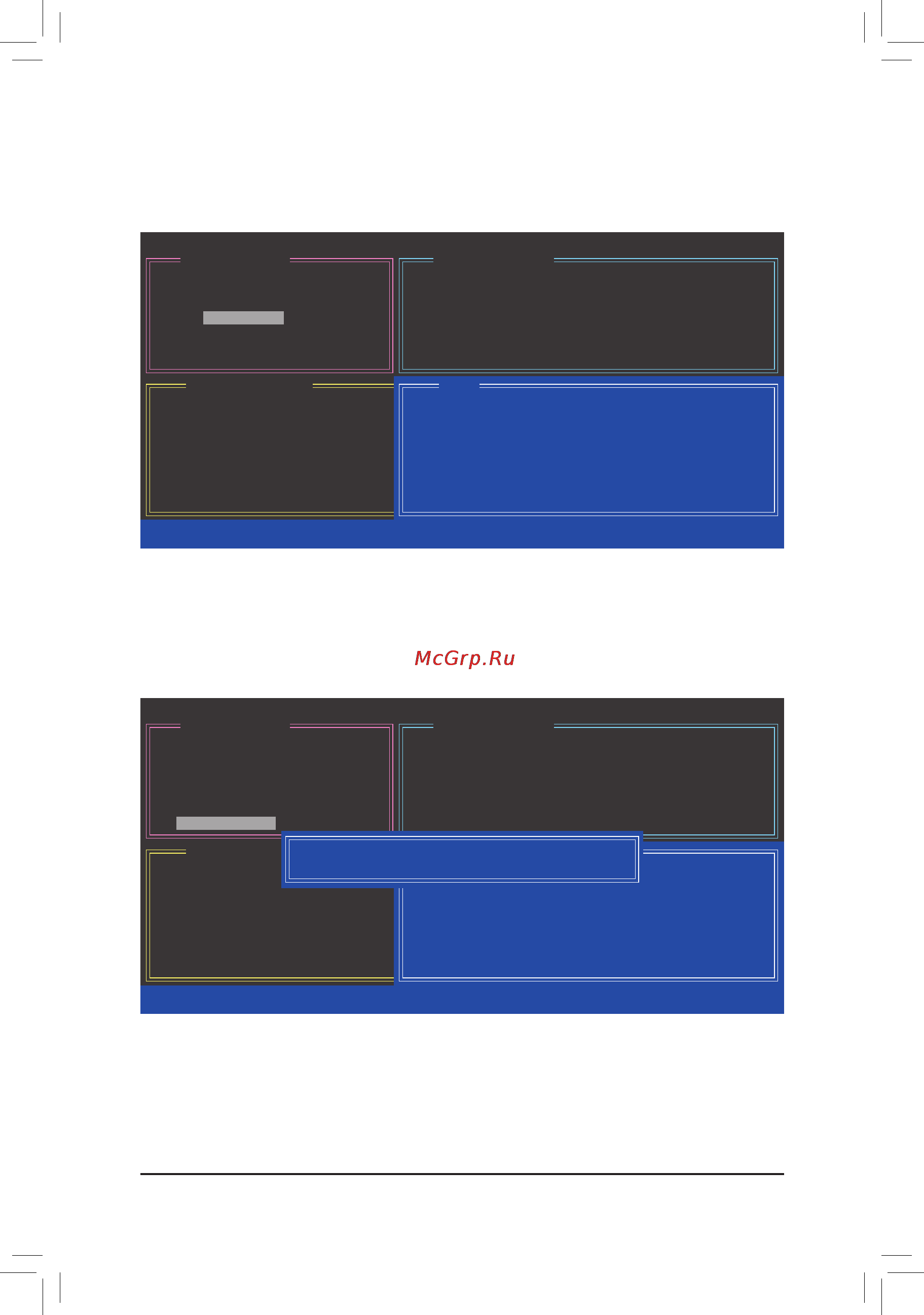

Figure 6
Figure 7
[RAIDDiskDriveList]
[CreateNewRAID] [HardDiskDriveList]
GigabyteTechnologyCorp.RAIDSetupUtilityv1.07.16G
Name: GRAID
Level: 0-Stripe
Disks: Select Disk
Block: 128 KB
Size: 240 GB
ConrmCreation
Model Name Available Type/Status
HDD0: ST3120026AS 120 GB Non-RAID
HDD1: ST3120026AS 120 GB Non-RAID
[Help]
[
hi
]-SwitchRAIDBlockSize [ENTER]-Next [ESC]-Abort
Setting Stripe Block
Selectastripesizewhichwillbeusedto
dividedatafrom/toseperateRAIDmembers.
The following are typical values:
RAID 0-128KB
[RAIDDiskDriveList]
[CreateNewRAID] [HardDiskDriveList]
GigabyteTechnologyCorp.RAIDSetupUtilityv1.07.16G
Name: GRAID
Level: 0-Stripe
Disks: Select Disk
Block: 128 KB
Size: 240 GB
ConrmCreation
Model Name Available Type/Status
HDD0: ST3120026AS 120 GB Non-RAID
HDD1: ST3120026AS 120 GB Non-RAID
[Help]
[
fg
]-SwitchUnit [DEL,BS]-DeleteNumber [ENTER]-Next [ESC]-Abort
CONFIRM RAID CREATION
ALL DATA ON THE SELECTED HARD DISK
WILL BE LOST WHEN EXIT WITH SAVING
Create RAID on the select HDD (Y/N) ? Y
