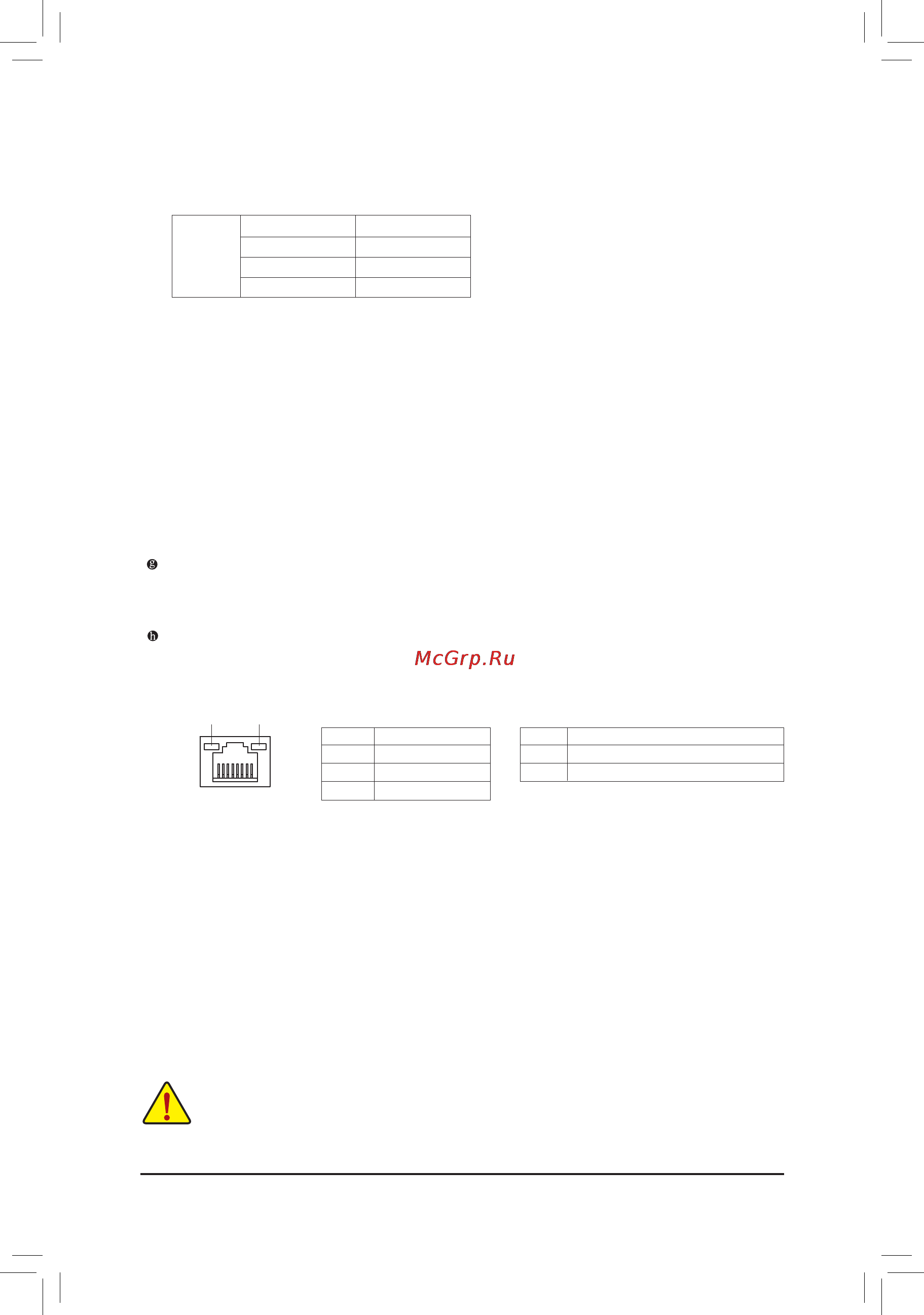

- 21 - Hardware Installation
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
Activity LED
Connection/
Speed LED
LAN Port
• When removing the cable connected to a back panel connector, rst remove the cable from your
device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
A. Dual Display Congurations:
This motherboard provides three ports for video output: DVI-D, HDMI and D-Sub. The table below shows
the supported dual display congurations.
B. Playback of HD DVD and Blu-ray Discs:
In order to get better playback quality, when playing the HD DVD or Blu-ray discs, refer to the recom-
mended system requirements (or better) below.
• Memory: Two 1 GB DDR3 1066 memory modules with dual channel mode enabled
• BIOS Setup: At least 256 MB of UMA Frame Buffer Size (refer to Chapter 2, "BIOS Setup," "Ad-
vanced BIOS Features," for more information)
• Playback software: CyberLink PowerDVD 8.0 or later (Note: Please ensure Hardware Acceleration
is enabled.)
• HDCP compliant monitor(s)
Combination Supported or Not
DVI-D + D-Sub Yes
DVI-D + HDMI No
HDMI + D-Sub Yes
Dual
Display
USB 3.0/2.0 Port
The USB 3.0 port supports the USB 3.0 specication and is compatible to the USB 2.0/1.1 specication.
Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB ash drive and etc.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
