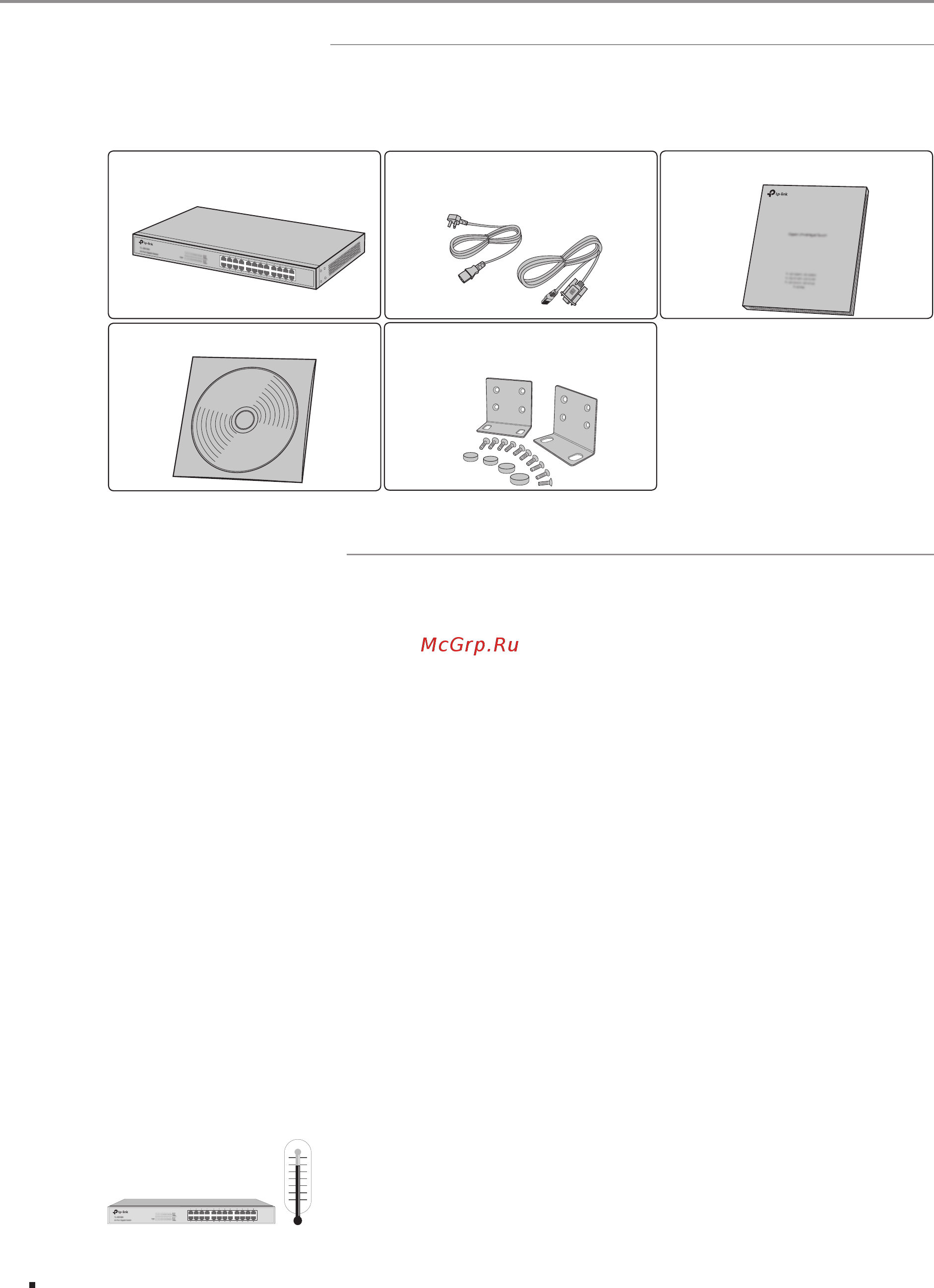

![Tp-Link T3700G-28TQ V2 [10/40] Chapter 2 installation](/views2/1471202/page10/bga.png)
JetStream Stackable L2+/L3 Managed Switch
06
Installation
Chapter 2 Installation
2.1 Package Contents
Make sure that the package contains the following items. If any of the listed items is damaged or
missing, please contact your distributor.
One Power Cord and one Console
Cable
One Switch
This Installation Guide
Installation Guide
Business Networking Solution
Two Mounting Brackets and the
Fittings
One Resouce CD
2.2 Safety Precautions
To avoid any device damage and bodily injury caused by improper use, please observe the following
rules.
■
Safety Precautions
■
Keep the power off during the installation.
■
Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin contact and
is well grounded.
■
Use only the power cord provided with the switch.
■
Make sure that the supply voltage matches the specifications indicated on the rear panel of the
switch.
■
Ensure the vent hole is well ventilated and unblocked.
■
Do not open or remove the cover of the switch.
■
Before cleaning the device, cut off the power supply. Do not clean it by the waterish cloth, and never
use any other liquid cleaning method.
■
Site Requirements
Temperature/Humidity
40℃
0℃
