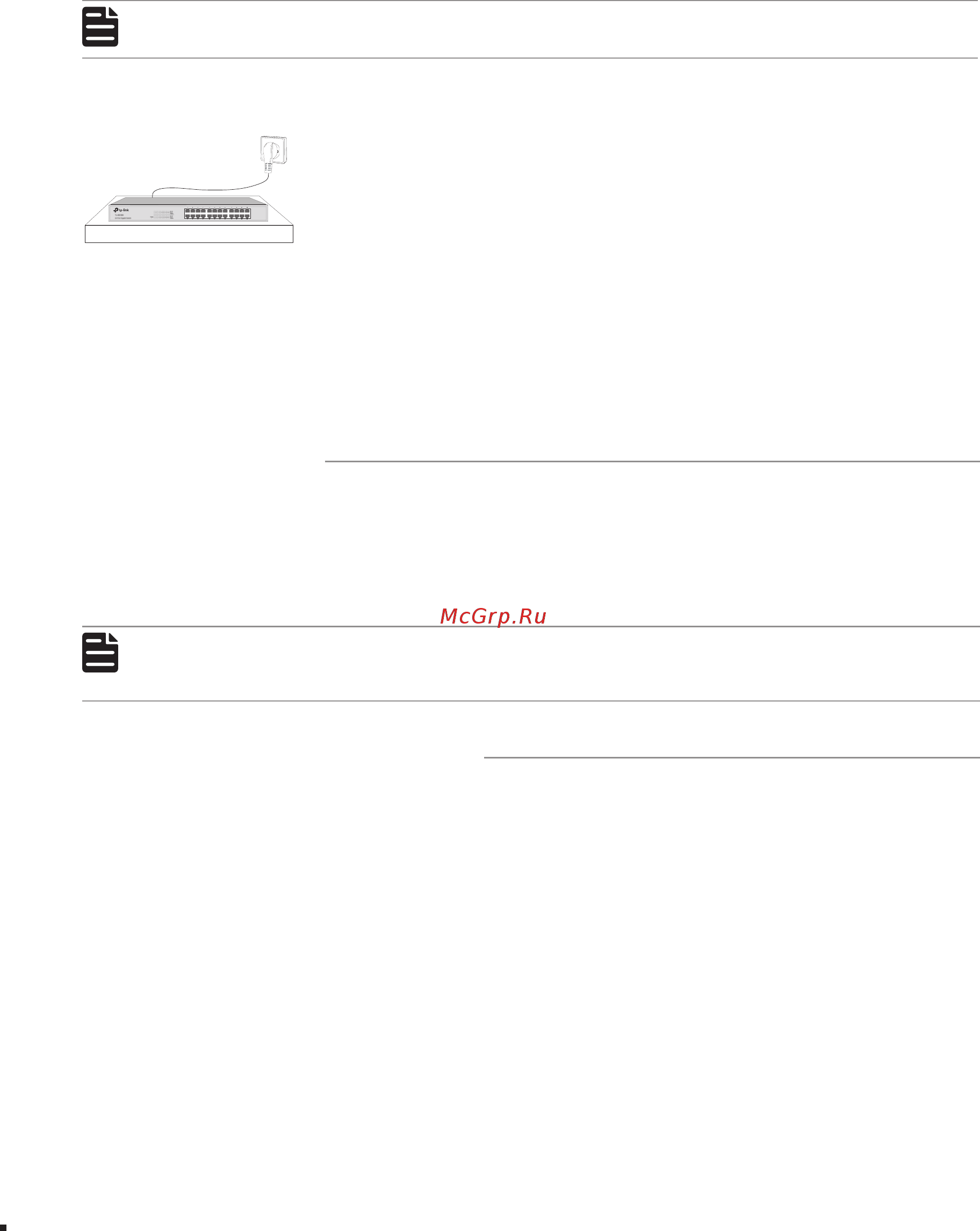

Tp-Link T3700G-28TQ V2 [12/40] Installation tools
![Tp-Link T3700G-28TQ V2 [12/40] Installation tools](/views2/1471202/page12/bgc.png)
JetStream Stackable L2+/L3 Managed Switch
08
Installation
enough to damage electronic devices, more effective lightning protection measures should be
taken.
■
Ensure the rack and device are well earthed.
■
Make sure the power socket has a good contact with the ground.
■
Keep a reasonable cabling system and avoid induced lightning.
■
Use the signal SPD (Surge Protective Device) when wiring outdoor.
Note:
For detailed lightning protection measures, please refer to Chapter 3 Lightning Protection.
Installation Site
When installing the device on a rack or a flat workbench, please note the following items:
■
The rack or workbench is flat and stable, and sturdy enough to support the weight of 5.5kg at least.
■
The rack or workbench has a good ventilation system. The equipment room is well ventilated.
■
The rack is well grounded. Keep the power socket less than 1.5 meters away from the device.
2.3 Installation Tools
■
Phillips screwdriver
■
ESD-preventive wrist wrap
■
Cables
Note:
These tools are not provided with our product. If needed, please self purchase them.
2.4 Installation & Connection Flow
The switch provides two interfaces to install the swappable Power Supply Module and Interface
Card, and one interface to connect to Redundant Power Supply. The switch has already been
installed with a Power Supply Module PSM150-AC, and you can also self-purchase the Interface
Card/Redundant Power Supply if needed.
The Installation & Connection flow is shown as the following figure.
