JetStream Stackable L2+/L3 Managed Switch
04
Introduction
■
Rear Panel
The rear panel of T2700G-28TQ
/
T3700G-28TQ is shown as the following figure.

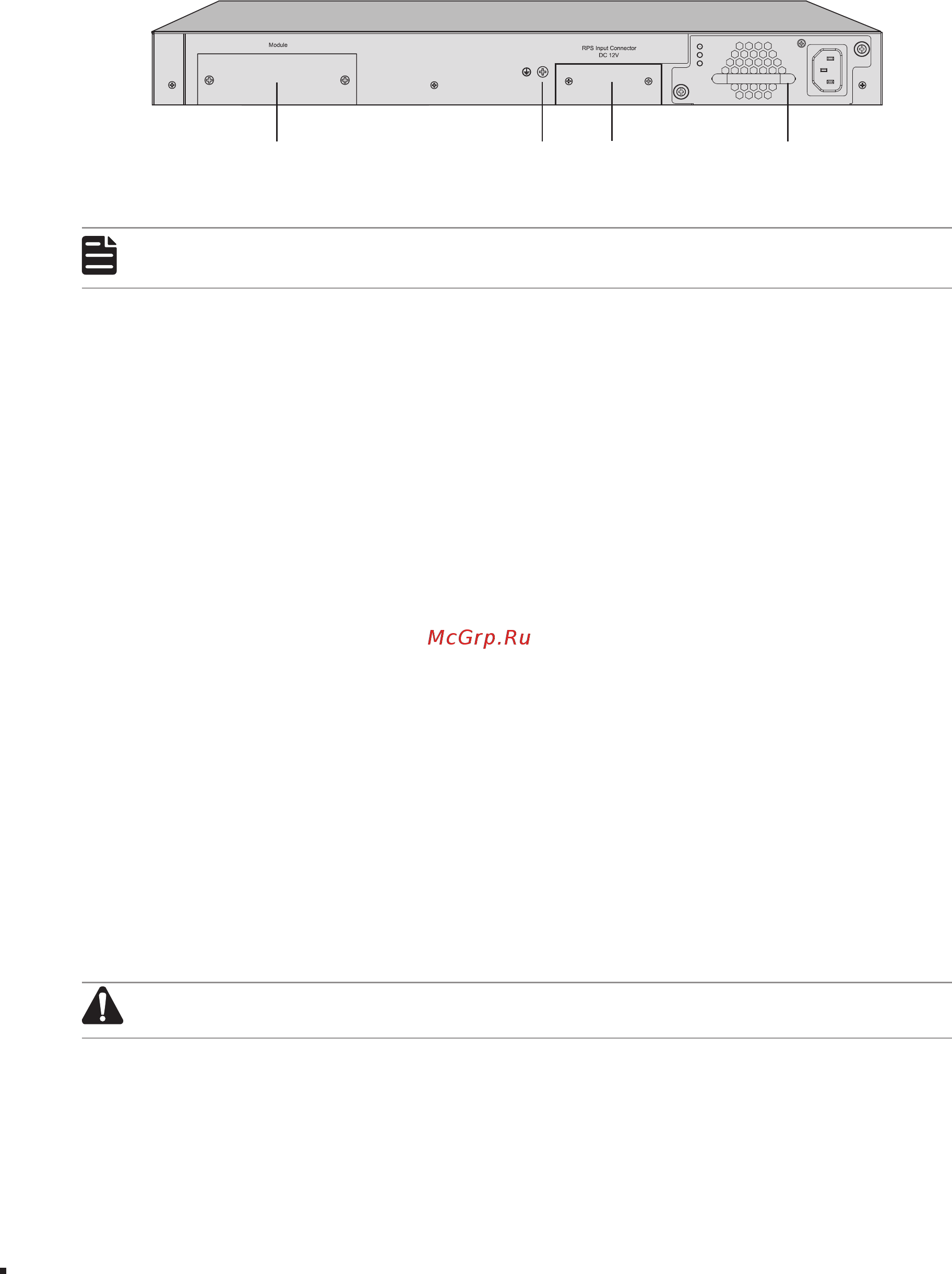

Figure 1-1 Rear Panel (1)
Power
PS OK
Fault
PSM150-AC
100-240V~ 50/60Hz 2.5A
Grounding
Terminal
Power Supply
Module
Interface Card Slot
RPS Input
Connector
Note:
The Interface Card Slot and RPS Input Connector are shipped with protective covers.
Interface Card Slot
Designed to extend the interfaces. You can select a TP-Link Interface Card (TX432 for example)
for your switch if needed. For how to install an Interface Card, please refer to 3.4 Installing &
Removing the Interface Card.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the switch
through the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed information,
please refer to Chapter 4 Lightning Protection.
RPS Input Connector
Designed to connect the RPS (Redundant Power Supply). You can selected an RPS of TP-Link
(RPS150 for example) for your switch if needed. For how to install an RPS, please refer to 5.6
Power on via Redundant Power Supply.
Power Supply Module
The AC Power Supply Module PSM150-AC is installled in the switch. The malfunctioned PSM150-
AC can be replaced with a TP-Link power supply module of the same model. Its input voltage is
100-240V~ 50/60Hz.
The AC Power Supply Module is fully hot swappable, helping to ensure no system interruption
during installation or replacement. For how to install/remove the Power Supply Module, please
refer to 3.3 Installing & Removing the Power Supply Module.
Caution:
Please use the provided power cord.
With all the protective covers removed and the Interface Card (TX432 for example) inserted, the rear
panel of T2700G-28TQ/T3700G-28TQ is shown as the following figure.
