Hikoki D 10VC3 [3/96] Additional safety warnings
![Hikoki D 10VC3 [3/96] Additional safety warnings](/views2/1471318/page3/bg3.png)
3
English
DRILL SAFETY WARNINGS
1. Use auxiliary handle(s), if supplied with the tool.
Loss of control can cause personal injury.
2.
Hold power tool by insulated gripping surfaces, when
performing an operation where the cutting accessory
may contact hidden wiring or its own cord.
Cutting accessory contacting a “live” wire may make
exposed metal parts of the power tool “live” and could
give the operator an electric shock.
ADDITIONAL SAFETY WARNINGS
1. Ensure that the power source to be utilized conforms
to the power requirements specifi ed on the product
nameplate.
2. Ensure that the power switch is in the OFF position.
If the plug is connected to a receptacle while the power
switch is in the ON position, the power tool will start
operating immediately, which could cause a serious
accident.
3. When the work area is removed from the power source,
use an extension cord of suffi cient thickness and rated
capacity. The extension cord should be kept as short as
practicable.
4. Hold the drill securely when using.
5. Do not wear gloves made of stuff liable to roll up such as
cotton, wool, cloth or string, etc.
6. Prior to drilling into walls, ceilings or fl oors, ensure there
are no electric cables or conduits inside.
7. Drilling
○ When drilling, start the drill slowly, and gradually
increasing speed as you drill.
○ Always apply pressure in a straight line with the bit. Use
enough pressure to keep drilling, but do not push hard
enough to stall the motor or defl ect the bit.
○ To minimize stalling or breaking through the material,
reduce pressure on drill and ease the bit through the last
part of the hole.
○ If the drill stalls, release the trigger immediately, remove
the bit from the work and start again. Do not click the
trigger on and off in an attempt to start a stalled drill. This
can damage the drill.
○ The larger the drill bit diameter, the larger the reactive
force on your arm.
Be careful not to lose control of the drill because of this
reactive force.
To maintain fi rm control, establish a good foothold,
use side handle, hold the drill tightly with both hands,
and ensure that the drill is vertical to the material being
drilled.
○ Precautions on boring
The drill bit may become overheated during operation;
however, it is suffi ciently operable. Do not cool the drill
bit in water or oil.
○ Caution concerning immediately after use
Immediately after use, while it is still revolving, if the Drill
is placed on a location where considerable ground chips
and dust have accumulated, dust may occasionally be
absorbed into the drill mechanism. Always pay attention
to this undesirable possibility.
8. When the power tool is used with a hook fi xed to it, pay
attention to the following points:
○ Before hanging the main unit from the waist belt, make
sure that the drill has come to a complete stop.
While it is suspended from the waist belt, the power plug
must be disconnected from the power source.
○ Do not walk about with the power tool hanging from the
waist belt.
○ In the case of operation in a high place, it is dangerous
to drop the tool accidentally. If the hook is deformed or
hung from the wrong position, there is danger that the
hook will slip off and the tool will fall.
Be careful to avoid danger.
○ In making a through hole, the power tool sometimes
shakes violently when the workpiece is pierced, from
example. Be careful you are not hurt by the hook even if
such situation happens.
NAMES OF PARTS (Fig. 1 – Fig. 9)
1
Side handle
7
Push button
2
Drill bit
8
Stopper
3
Keyless chuck
9
Speed control dial
4
Keyed chuck
0
Hook
5
Chuck wrench
!
M10 bolt
6
Trigger switch
@
Hook (A)

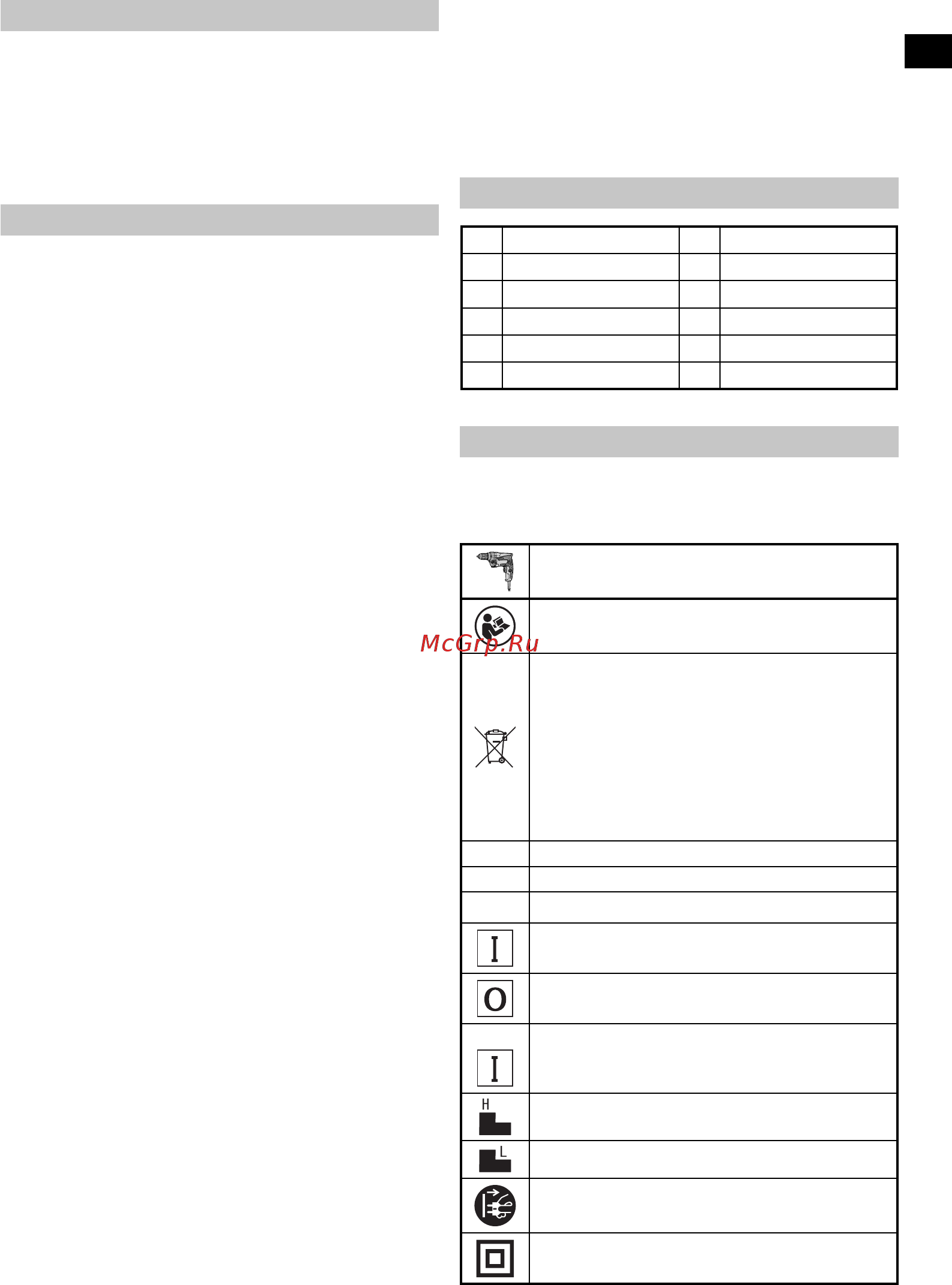

SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
D10VC3 : Drill
To reduce the risk of injury, user must read
instruction manual.
Only for EU countries
Do not dispose of electric tools together with
household waste material!
In observance of European Directive 2002/96/
EC on waste electrical and electronic equipment
and its implementation in accordance with
national law, electric tools that have reached
the end of their life must be collected separately
and returned to an environmentally compatible
recycling facility.
V Rated voltage
P Power input
n
0
No-load speed
Switching ON
Switching OFF
Lock
Switch locks to the “ON” position.
Change rotation speed - High speed
Change rotation speed - Low speed
Disconnect mains plug from electrical outlet
Class II tool
