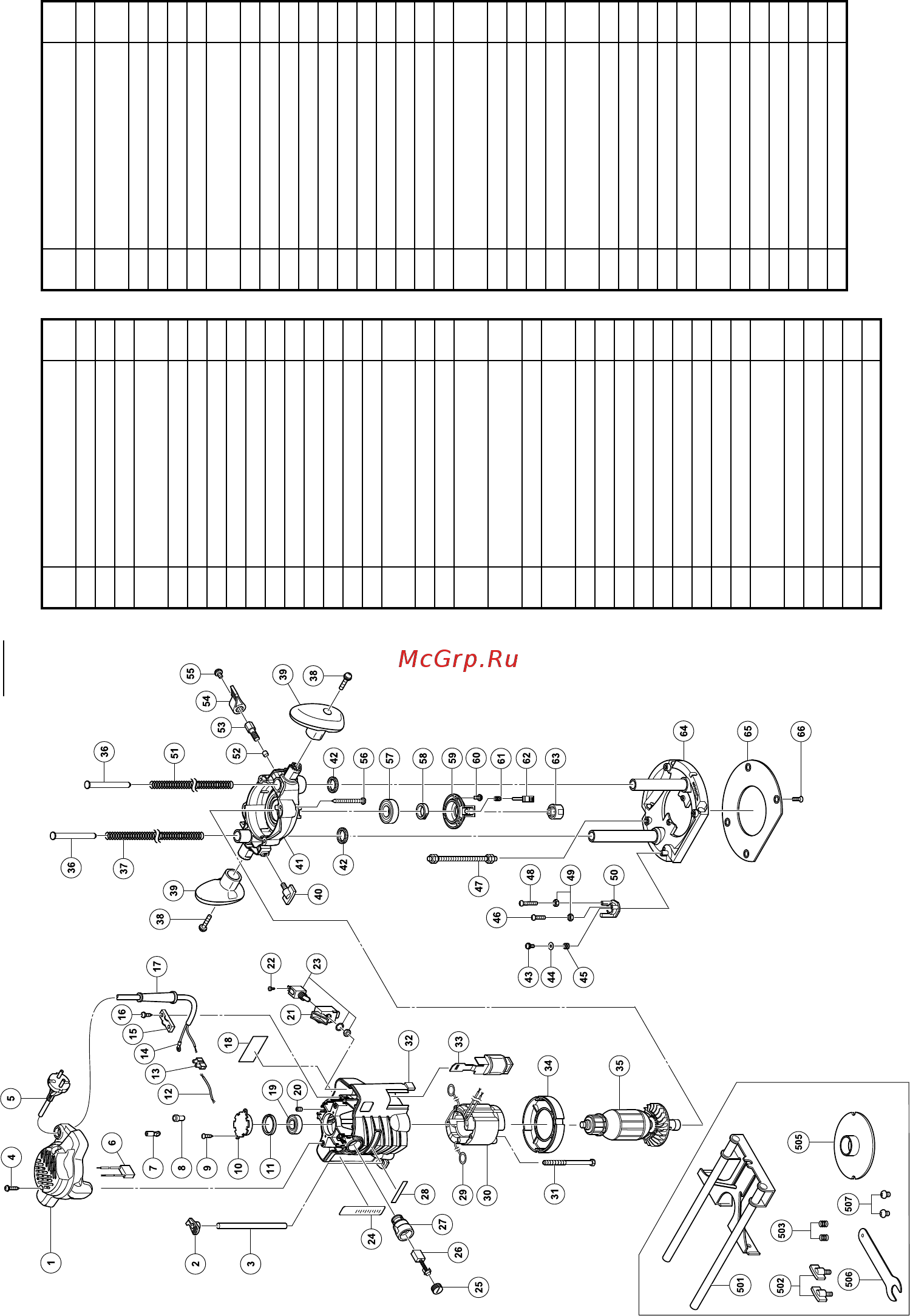

M12SE
Item
No.
Part Name Q’TY
1TOP COVER 1
2MAEKER 1
3 STOPPER POLE (A) 1
4
TAPPING SCREW
(W/FLANGE) D4×20
2
5CORD 1
6 NOISE SUPPRESSOR 1
7 TERMINAL M4.0 1
8 CONNECTOR 50092 1
9 TAPPING SCREW D4×12 2
10 BEARING BUSHING 1
11 RUBBER RING 1
12 INTERNAL WIRE 1
13 PILLAR TERMINAL 1
14 TERMINAL 1
15 CORD CLIIP 1
16
TAPPING SCREW
(W/FLANGE) D4×16
2
17 CORD ARMOR 1
18 NAME PLATE 1
19
BALL BEARING
6200VVCMPS2L
1
20
HEX. SOCKET SET SCREW
M5×8
2
21 SWITCH HOLDER 1
22
MACHINE SCREW
(W/WASHER) M3.5×6
2
23 SNAP SWITCH 1
23 SNAP SWITCH 1
24 SCALE 1
25 BRUSH CAP 2
26 CARBON BRUSH 2
27 BRUSH HOLDER 2
28 BRAND LABEL 1
29 BRUSH TERMINAL 2
30 STATOR ASS'Y 1
31
HEX. HD. TAPPING SCREW
D5×70
2
32 HOUSING ASS'Y 1
33 LEVER 1
34 FAN GUIDE 1
35 ARMATURE 1
36 SPRING GUIDE 2
Item
No.
Part Name Q’TY
37 SPRING 1
38
MACHINE SCREW
(W/WASHERS) M6×30
2
39 HANDLE 2
40 WING BOLT M6×15 1
41 END BRACKET 1
42 FELT 2
43
MACHINE SCREW
(W/WASHERS) M4×8
1
44 WASHER (B) 1
45 SPRING (A) 1
46 MACHINE SCREW M5×20 1
47 M8 SCREW 1
48 MACHINE SCREW M5×35 1
49 NUT M5 2
50 STOPPER BLOCK 1
51 SPRING 1
52 LOCK PIECE 1
53 M10 LOCK SCREW 1
54 LEVER (A) 1
55
MACHINE SCREW
(W/WASHERS) M6×10
1
56 TAPPING SCREW D5×50 4
57 BALL BEARING 1
58 THRUST NUT 1
59 BEARING COVER 1
60
MACHINE SCREW
(W/WASHERS) M4×12
3
61 LOCK SPRING (A) 1
62 PUSHING BUTTON 1
63 COLLET CHUCK 12MM OR 1/2" 1
64 BASE 1
65 SUB BASE 1
66
SEAL LOCK FLAT HD. SCREW
M5×14
4
501 PARALLEL GUIDE 1
502 WING BOLT M6×15 2
503 LOCK SPRING 2
505 TEMPLATE GUIDE 1
506 WRENCH 23MM 1
507 MACHINE SCREW M5×6 2
