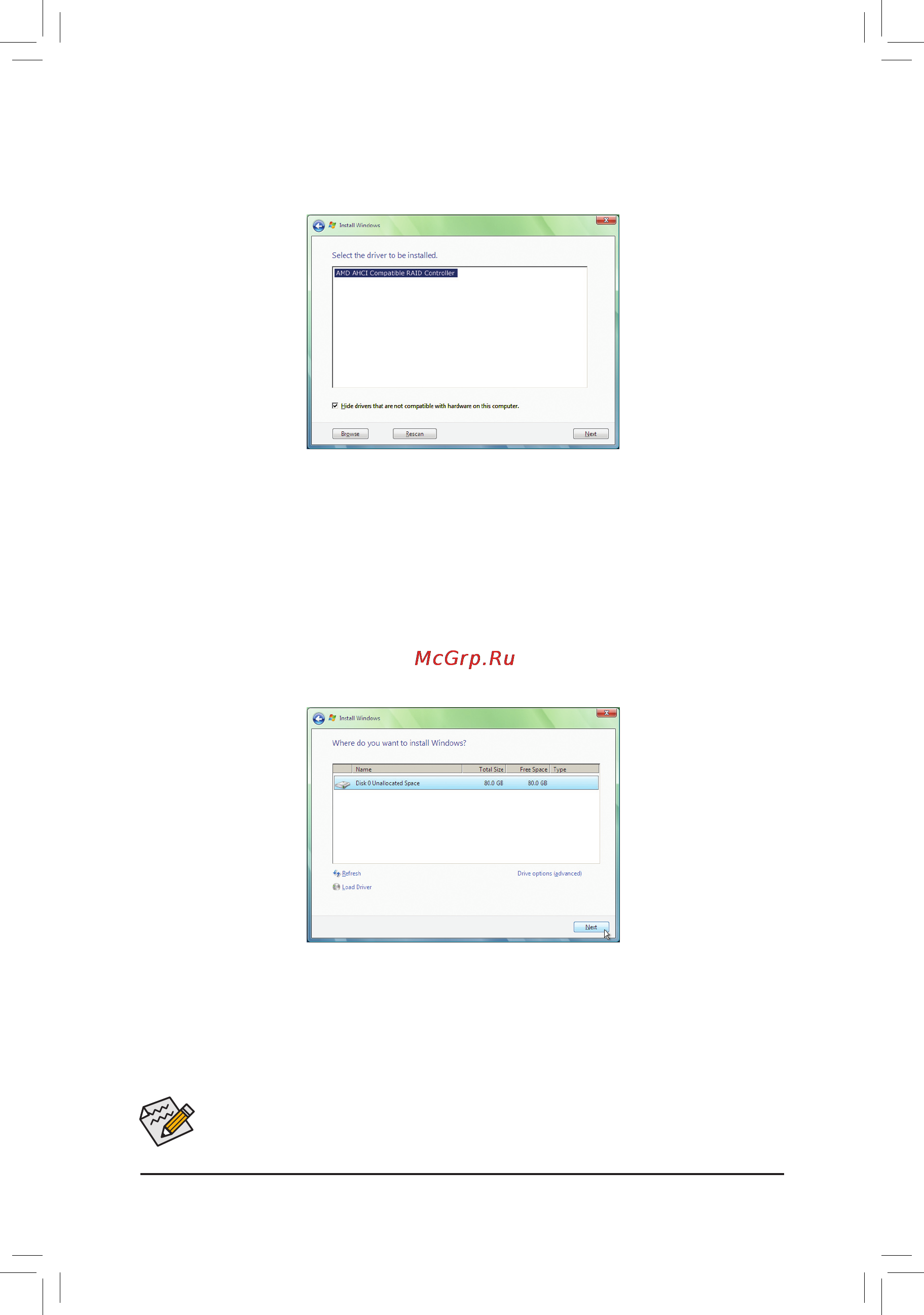

- 83 - Appendix
Step 3:
When a screen as shown in Figure 5 appears, select AMD AHCI Compatible RAID Controller and press
Next.
Step 4:
After the driver is loaded, the RAID drive will appear. Select the RAID drive and then press Next to continue
the OS installation (Figure 6).
Figure 5
Figure 6
The install menus described in this chapter are for reference only and may differ by driver version.
