Rigol DS2102E [47/283] User interface

Chapter 1 Quick Start RIGOL

DS2000E User’s Guide 1-19

User Interface

The DS2000E provides an 8.0-inch, WVGA (800*480) 160,000 color TFT LCD. In

particular, the 14-grid ultra-wide screen enables you to view waveforms in a "longer"

time span.

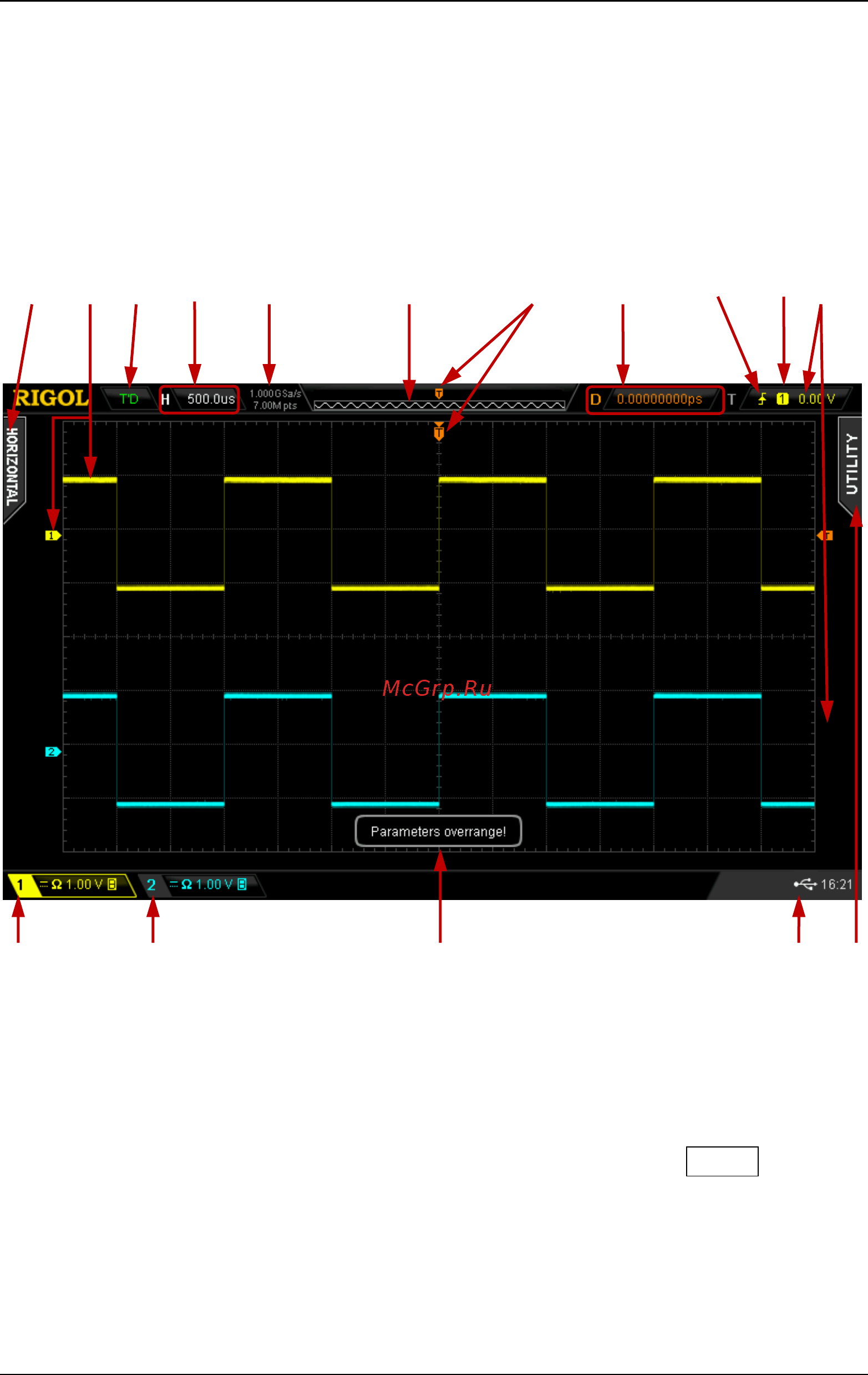

Figure 1-11 User Interface

1. Auto Measurement Items

Provide 16 horizontal (HORIZONTAL) parameters and 13 vertical (VERTICAL)

parameters. Press the softkey at the left of the screen to enable the auto

measurement function of the corresponding parameter. Press MENU

continuously to switch between the horizontal and vertical parameters.

2. Channel Label/Waveform

Different channels are marked with different colors. The color of the channel

16 15 14 13 12

1 2 3 4 5 6 7 8 9 10 11
