Rigol DSG3030 [21/148] Appearance and dimensions

Rigol DSG3060 [21/148] Appearance and dimensions

Chapter 1 Quick Start RIGOL

DSG3000 User’s Guide 1-3

Appearance and Dimensions

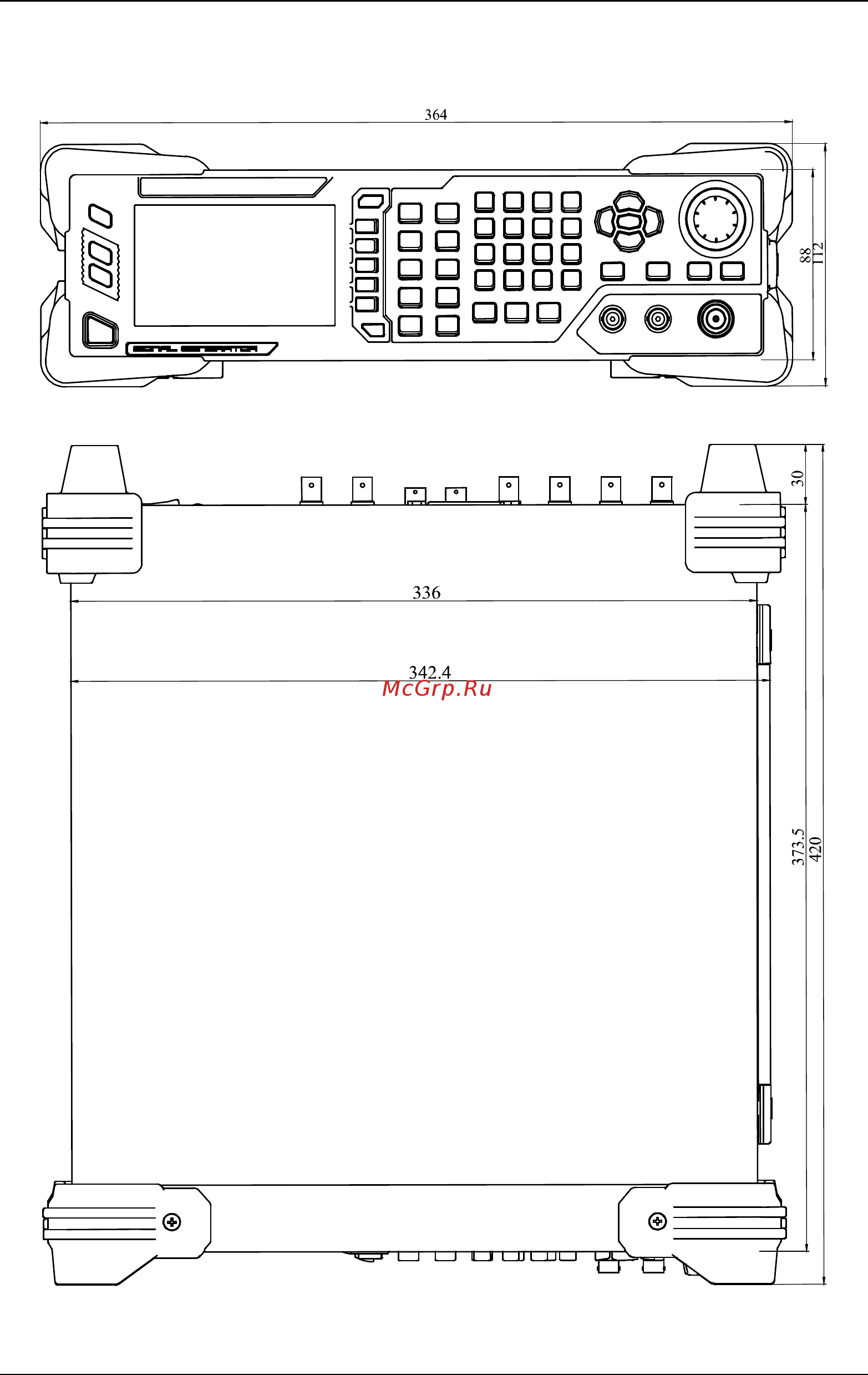

Figure 1-1 Front View (unit: mm)

Figure 1-2 Top View (unit: mm)
