Rigol DSG3030 [94/148] Rx1000 option

RIGOL Chapter 2 Front Panel Operations

2-52 DSG3000 User’s Guide

RX1000 (Option)

The DSG3000 supports the RX1000 RF Demo Kit provided by RIGOL. Press

 RX1000 to turn on the RX1000 control interface as shown in the figure below.

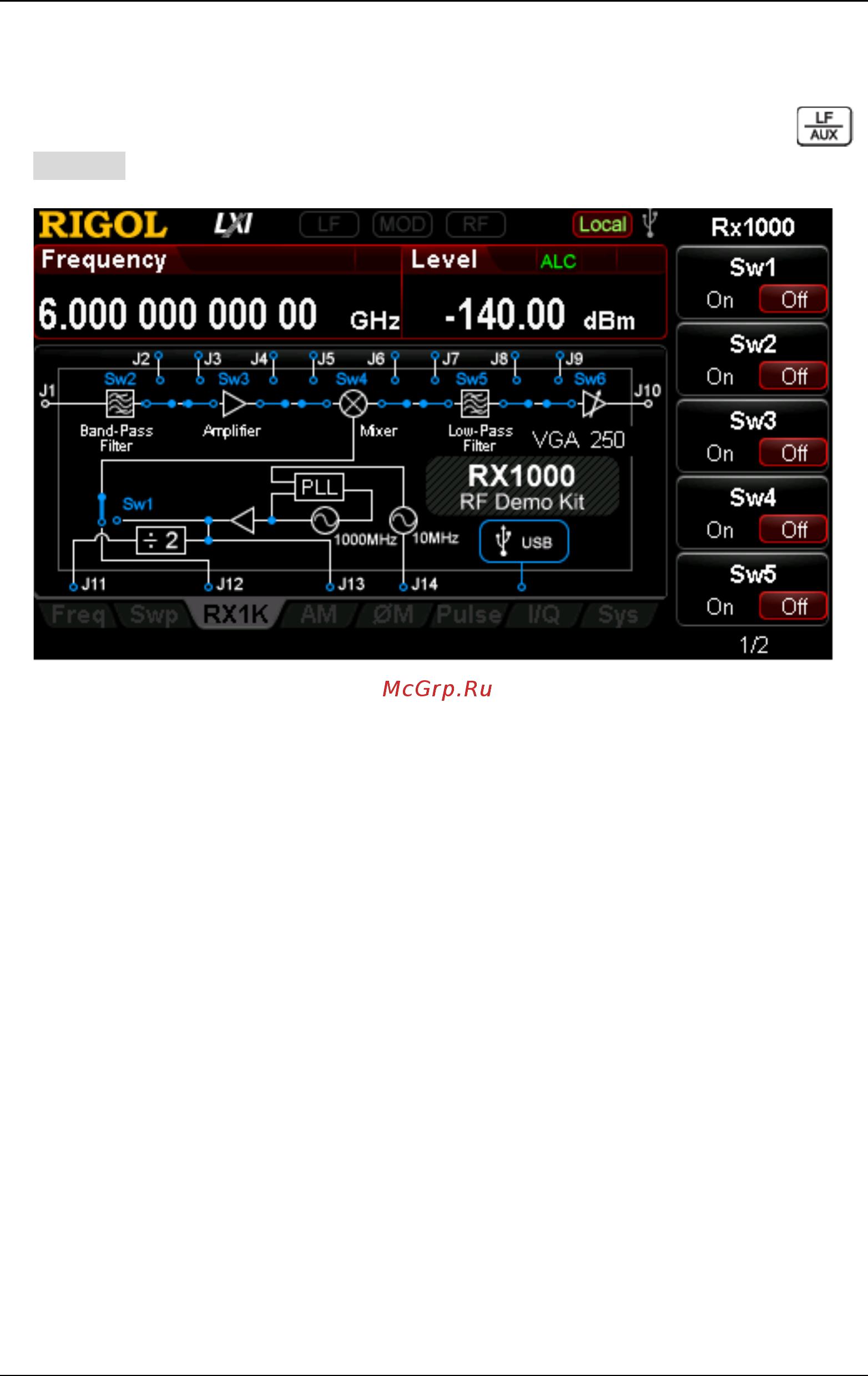

Figure 2-2 RX1000 Control Interface

NOTE: This function is valid only when the RF signal generator is connected with the

RX1000 option. For the detailed application of RX1000, please refer to

RX1000_ApplicationNote.
