Managing System Configuring System Info
User Guide
17
2.2 Specifying the Device Description
Choose the menu System > System Info to load the following page. Specify a new device
description for the switch, and click Apply.

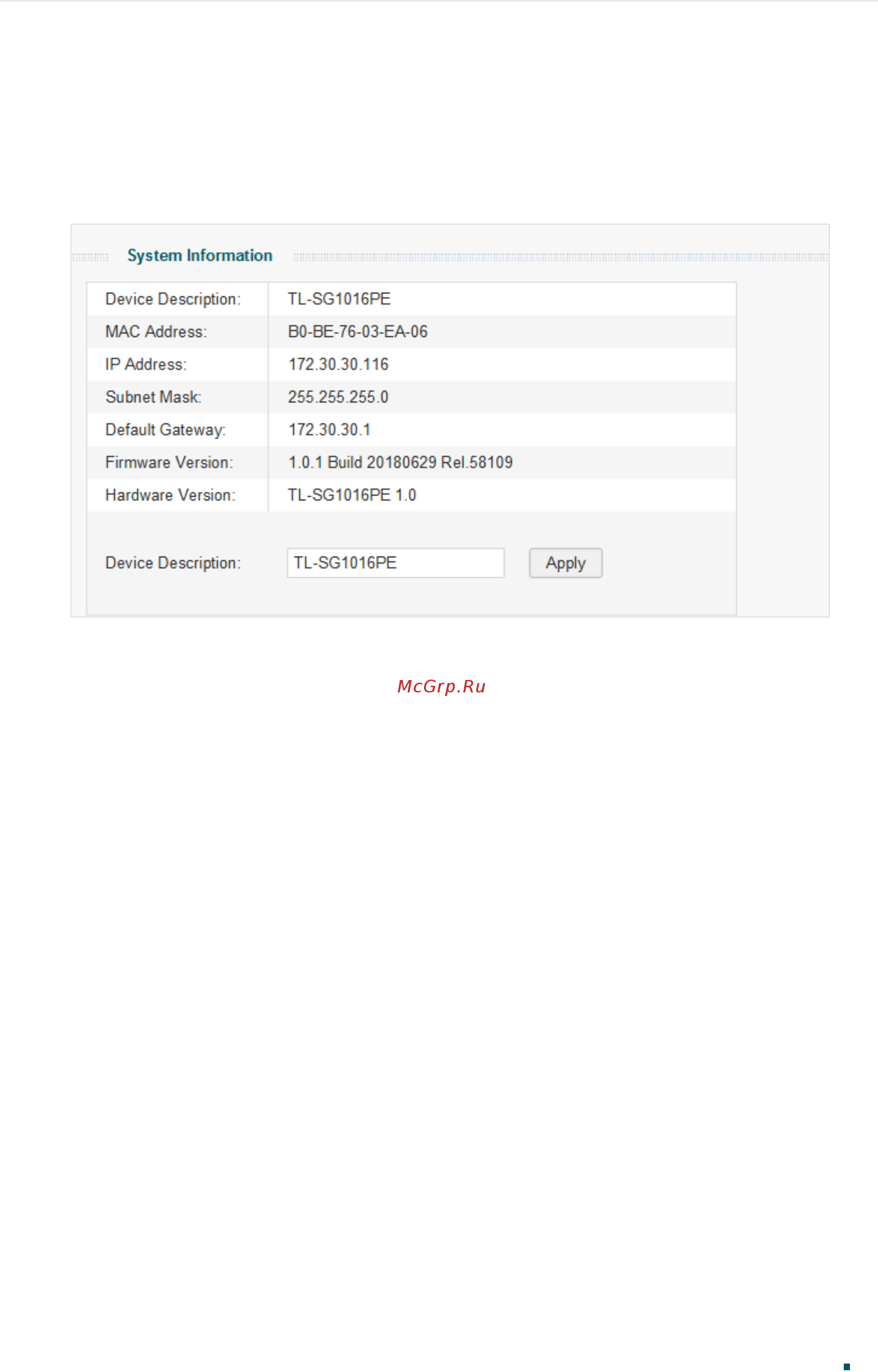

Figure 2-2 Specifying the Device Description
