Configuring QoS Configuring Bandwidth Control
User Guide
67
3
Configuring Bandwidth Control
Choose the menu QoS > Bandwidth Control to load the following page.

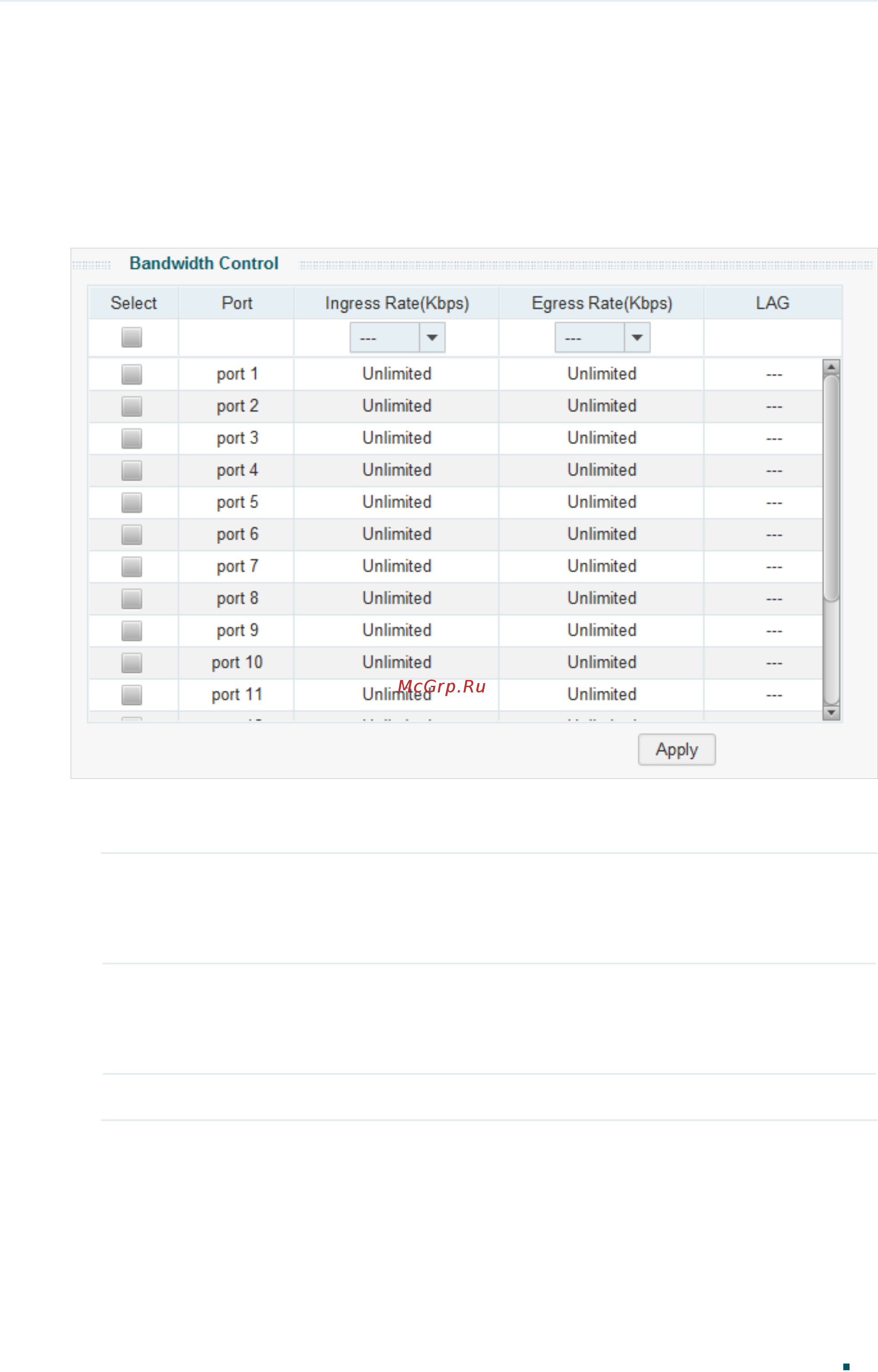

Figure 3-1 Configuring Bandwidth Control
Follow these steps to configure bandwidth control:
1) Select the desired ports and configure the ingress rate and egress rate for the ports.
Ingress Rate
(Kbps)
Configure the bandwidth for receiving packets on the port. You can select a rate
from the drop-down list or select “Manual” to set Ingress rate, the system will
automatically select integral multiple of 64Kbps that is closest to the rate you
entered as the real ingress rate.
Egress Rate
(Kbps)
Configure the bandwidth for sending packets on the port. You can select a rate
from the drop-down list or select “Manual” to set egress rate, the system will
automatically select integral multiple of 64Kbps that is closest to the rate you
entered as the real egress rate.
LAG Displays the LAG which the port belongs to.
2) Click Apply.
