Searching Help Searching Online Help
User Guide
79
2
Searching Online Help
Choose the menu Help > Help to load the following page. You can click Online Help to
access the TP-Link support website
and get the online user guide for the Easy Smart
Configuration Utility (the latest copy of this manual) and the products.

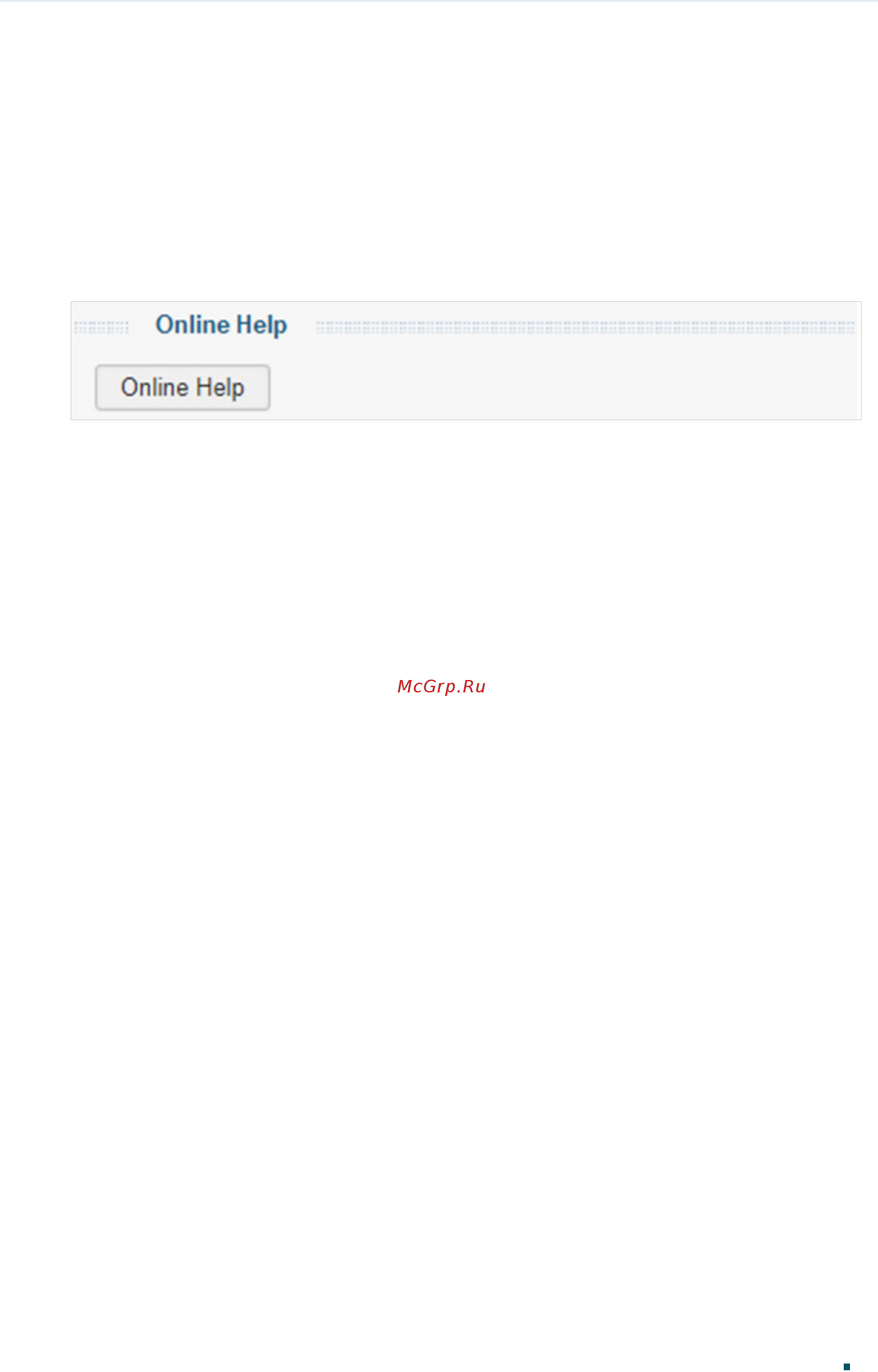

Figure 2-1 Searching Online Help
