- 14 -GA-8IMMT4 Motherboard
English
Step 4: Connect ribbon cables, cabinet wires and power
supply

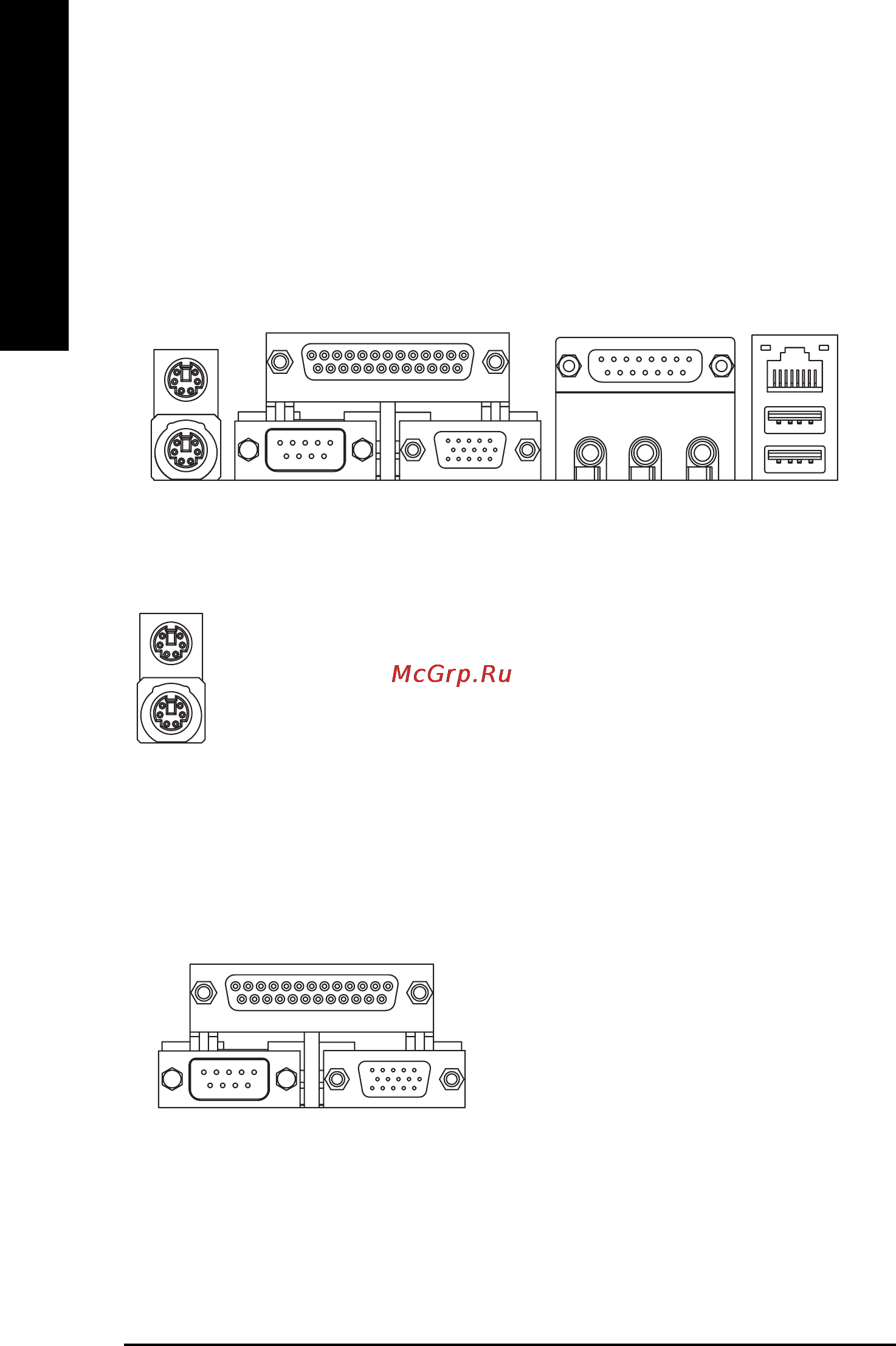

Step4-1 : I/O Back Panel Introduction
XX
XX
X PS/2 Keyboard and PS/2 Mouse Connector
YY
YY
Y Parallel Port, Serial Ports and VGA port (LPT/COMA/VGA)
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
¾ This connector supports standard PS/2
keyboard and PS/2 mouse.
¾ This motherboard supports 1 standard COM
port, 1 LPT port and 1 VGA port. Device like
printer can be connected to LPT port; mouse
and modem etc. can be connected to COM
port.
X
Y
Z
[
\
Parallel Port
(25 pin Female)
COMA VGA
Serial Port
(9 pin Male)
VGA Port
(15 pin Female)
