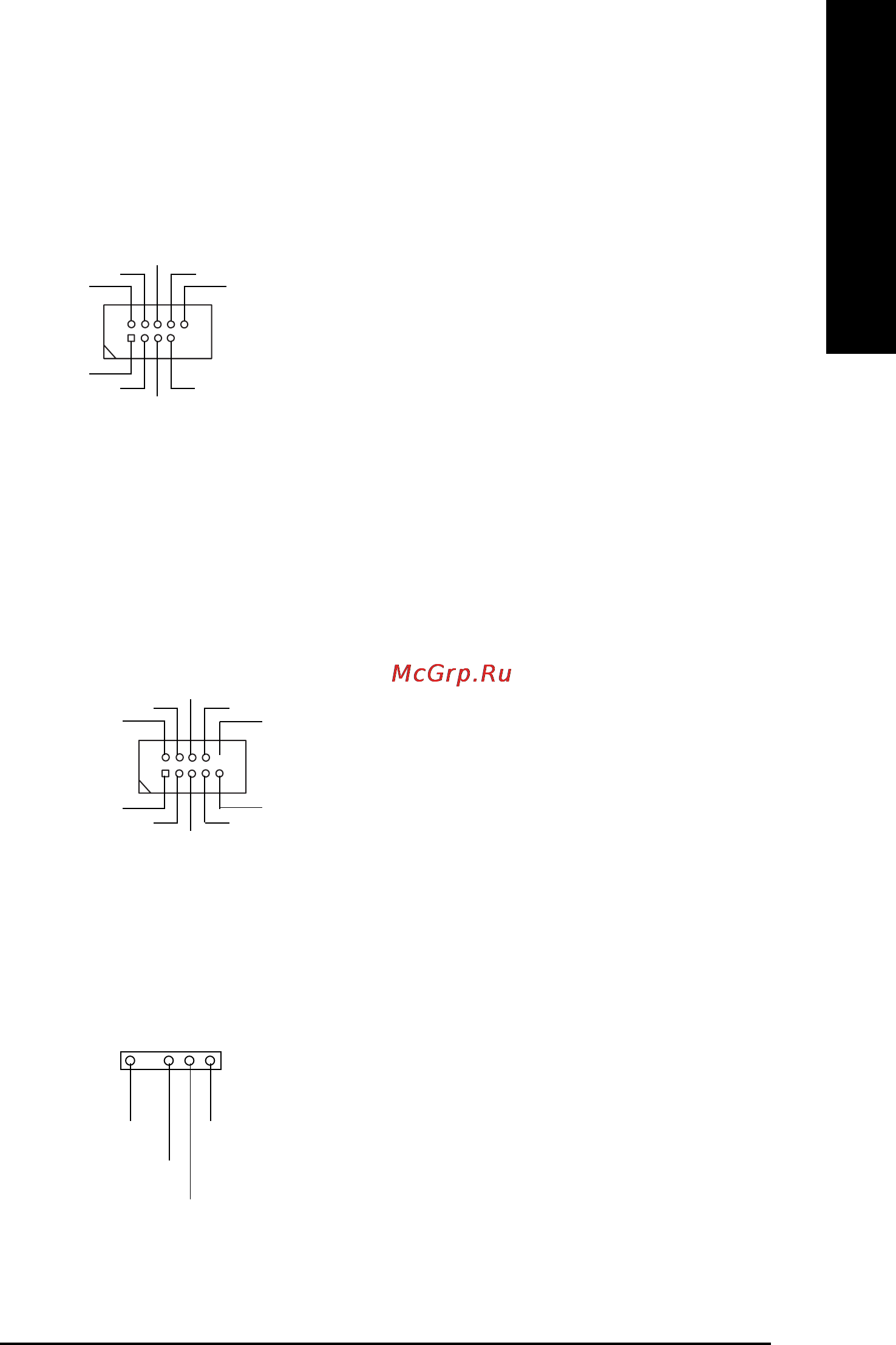

- 21 - Hardware Installation Process
English
¾ Be careful with the polarity of the IR connector
while you connect the IR. Please contact your
nearest dealer for optional IR device.
15) IR
14) COMB
1
NDCDB-
NRTSB-
NSOUTB
GND
NRIB-
NSINB
NDTRB-
NDSRB-
NCTSB-
NC
VCC(+5V)
IR Data Input
GND
IR Data Output
1
¾ Be careful with the polarity of the COMB
connector. Check the pin assignment while
you connect the COMB cable. Please contact
your nearest dealer for optional COMB cable.
¾ Be careful with the polarity of the front USB
connector. Check the pin assignment while
you connect the front USB cable. Please
contact your nearest dealer for optional front
USB 2.0 cable.
13) F_USB1 / F_USB2 (Front USB Connector)
(F_USB1 & F_USB2 connectors in yellow are for USB 2.0)
USB Dy-
USB Dy+
Power
USB Dx-
USB Dx+
1
USB Over
Current
Power
GND
GND
