Technical Reference
- 67 -
English

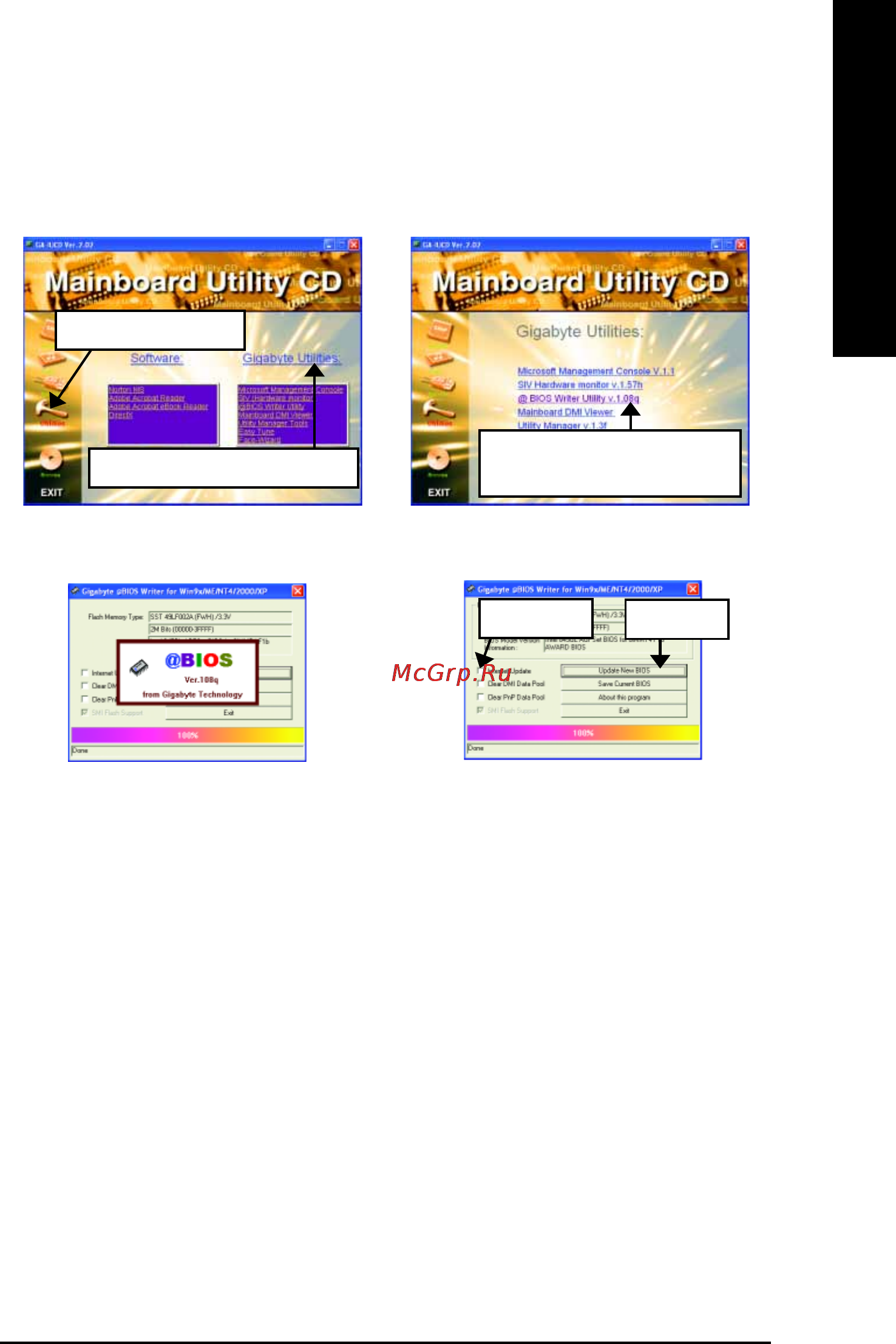

BIOS update procedure:
If your OS is Win9X, we recommend that you used Gigabyte @BIOS
™
Program to flash BIOS.
Methods and steps:
I. Update BIOS through Internet
a. Click "Internet Update" icon
b. Click "Update New BIOS" icon
c. Select @BIOS
™
sever
d. Select the exact model name on your motherboard.
e. System will automatically download and update the BIOS.
(2)(1)
Press "Utilities" icon.
1. Click "Gigabyte Utilities" item.
2. Click "@BIOS Writer Utility
v.1.08q" item.
Click "3".
Click here.
(4)(3)
Method 3 : @BIOS Utility
